CleanAir 5-Channel Calibrator
$0.00 – $2,478.20

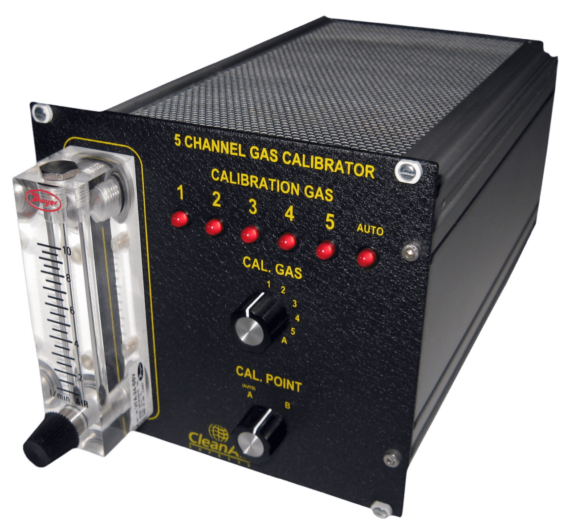

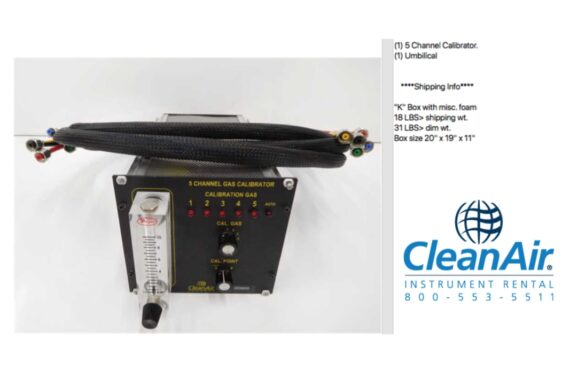

The CleanAir 5-Channel Calibrator is designed to interface CEM analyzers with five individual calibration gasses. Gasses can be controlled manually or remotely to flow through one of two calibration ports. Sub-Rack designed for installation in a standard 19″ instrument rack. Flow meter with stainless steel needle valve provides indication and control of calibration gas flow rate from 1 to 10 lpm. Auto Mode allows a data acquisition system equipped with a dry contact closure to control the calibration points remotely. A 12 VDC output signal is provided for use by the control system via an Amphenol connector, located on the rear of the Calibrator. Jumper for Auto Mode (part 0724J) is included.
The CleanAir 5-Channel Calibrator is designed to interface CEM analyzers with five individual calibration gasses. Gasses can be controlled manually or remotely to flow through one of two calibration ports. Sub-Rack designed for installation in a standard 19″ instrument rack. Flow meter with stainless steel needle valve provides indication and control of calibration gas flow rate from 1 to 10 lpm. Auto Mode allows a data acquisition system equipped with a dry contact closure to control the calibration points remotely. A 12 VDC output signal is provided for use by the control system via an Amphenol connector, located on the rear of the Calibrator. Jumper for Auto Mode (part 0724J) is included.
| Part Number | Description |
|---|---|
| 0724 | 120 VAC 5-Channel Calibrator |
| 0724J | 5-Channel Calibrator Jumper for Auto Mode |
Features/Specifications
- Flow meter with stainless steel needle valve provides indication and control of calibration gas flow rate from 1 to 10 lpm.
- AUTO Mode allows a data acquisition system equipped with a dry contact closure to control the calibration points remotely.
- 12 VDC Output Signal via Amphenol connector
- Sub-Rack Design for installation into a standard 19″ instrument rack.
- Weight: 7Lbs
- Dimensions: 5.5″ x 5″ x 12″
- Power: 120 VAC
- Fittings: 1/4″ Compression Fittings
- Amphenol: 7 Pin Connection
- Pressure Range: Operating 25 psig Max 40 Psig
- Temperature Range: Ambient (Non-Condensing)
- Gas Inputs: 5 Calibration Gas Inputs
- Gas Outputs: 2 Calibration Gas Outputs
No additional documents available for this product
CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project. Contact us for more information.
