CleanAir Mobile Power Distribution Station
$0.00 – $10,511.98

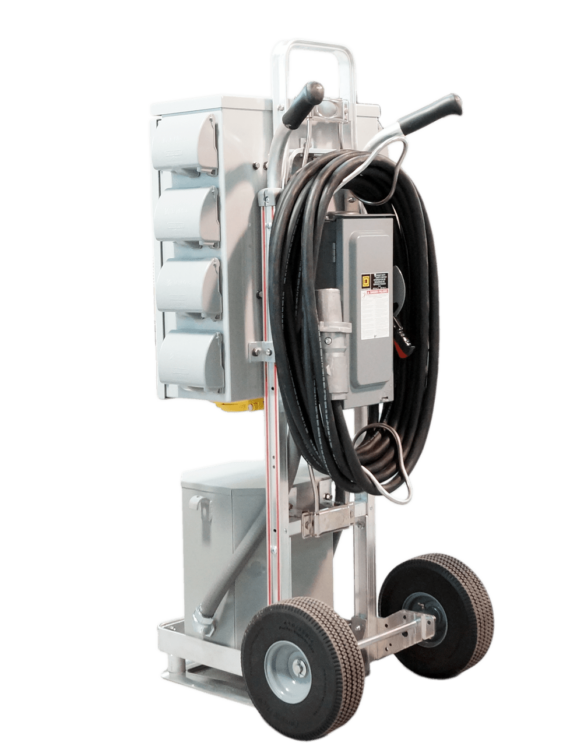

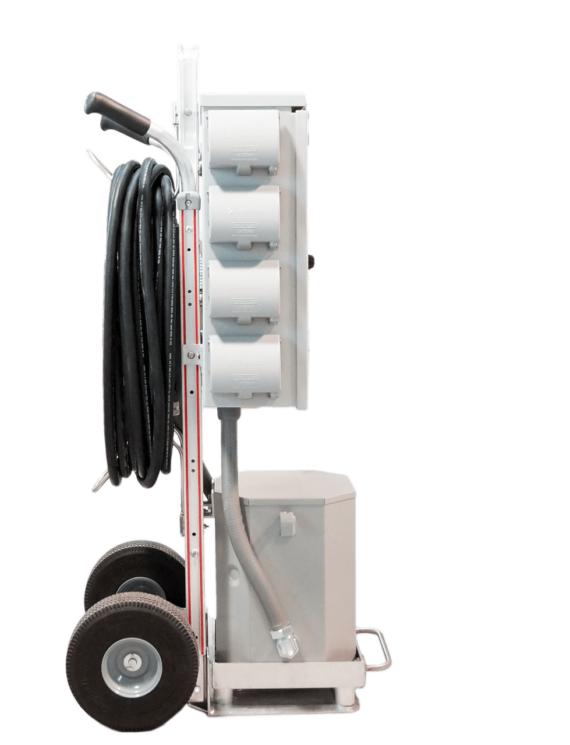

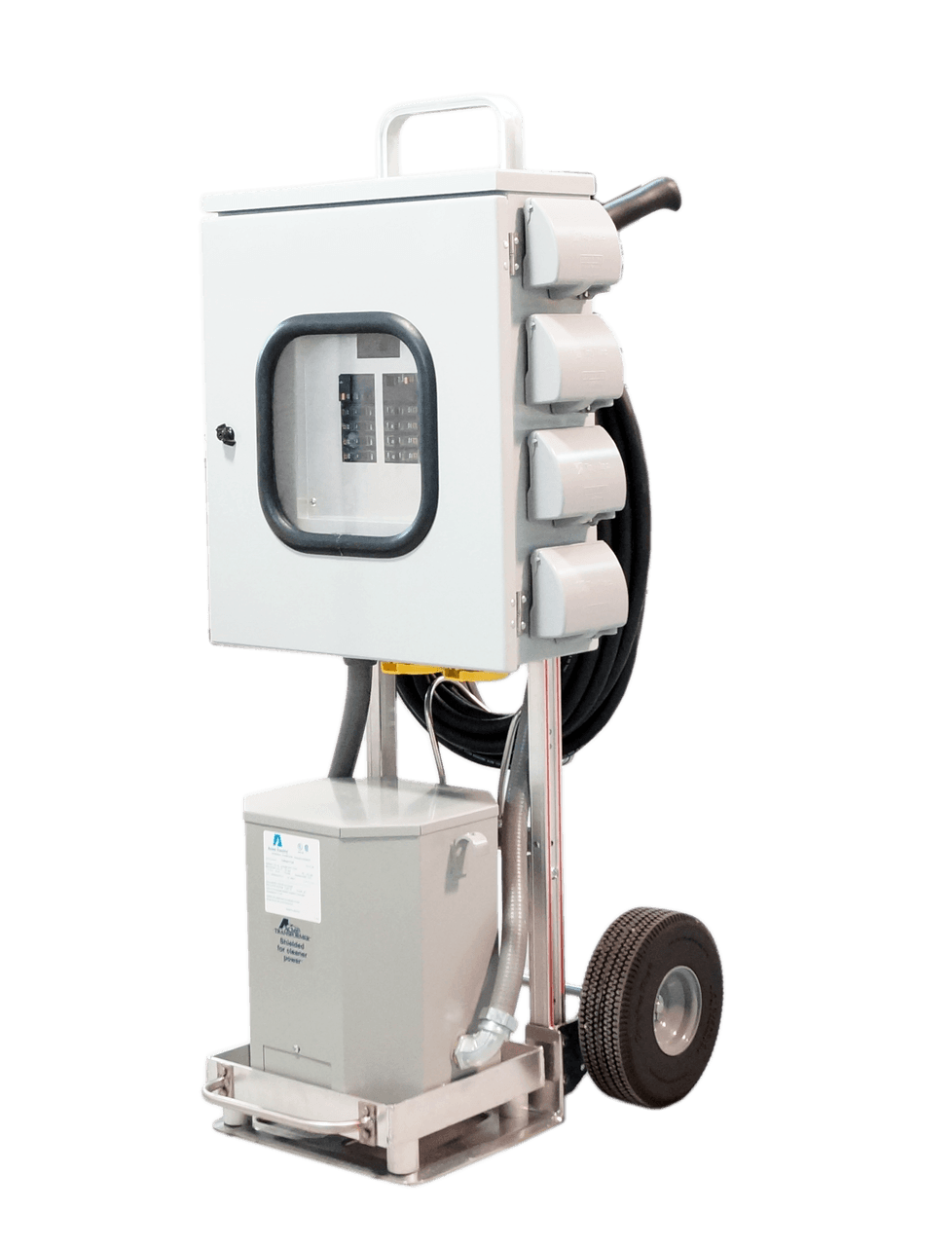

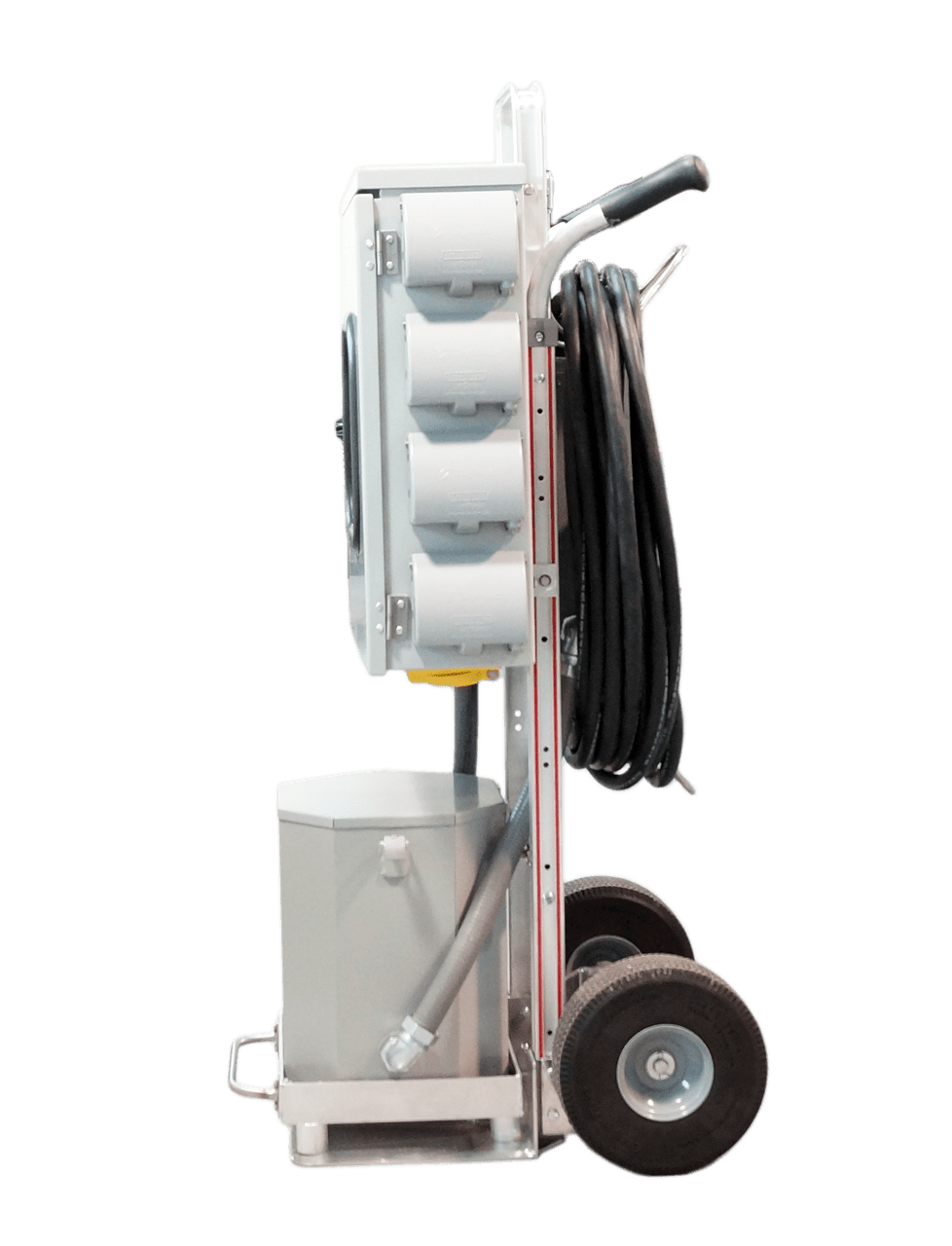

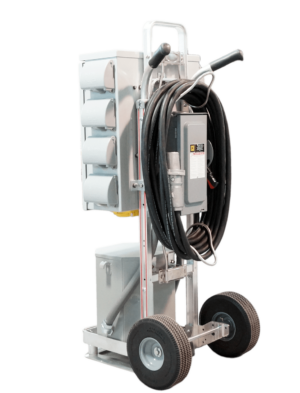

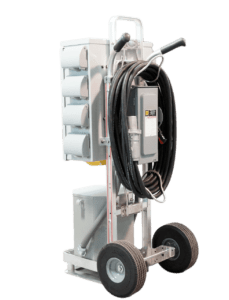

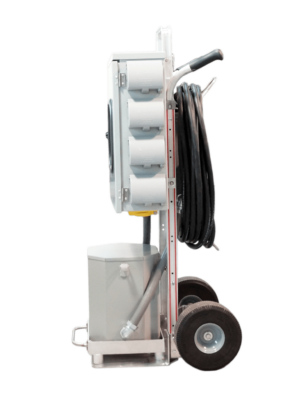

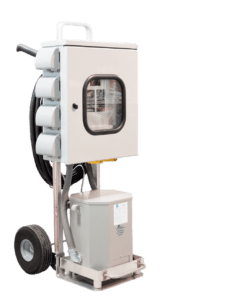

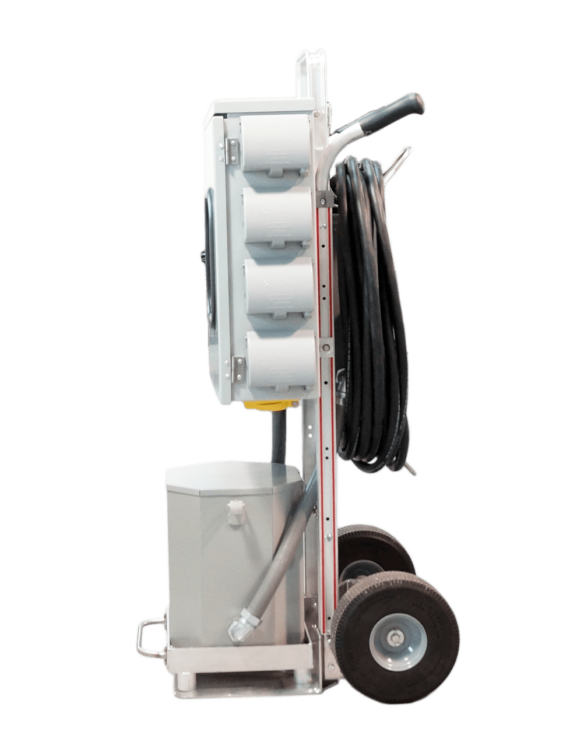

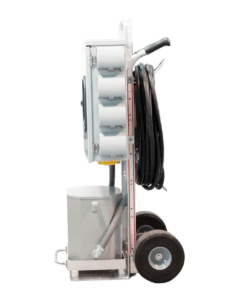

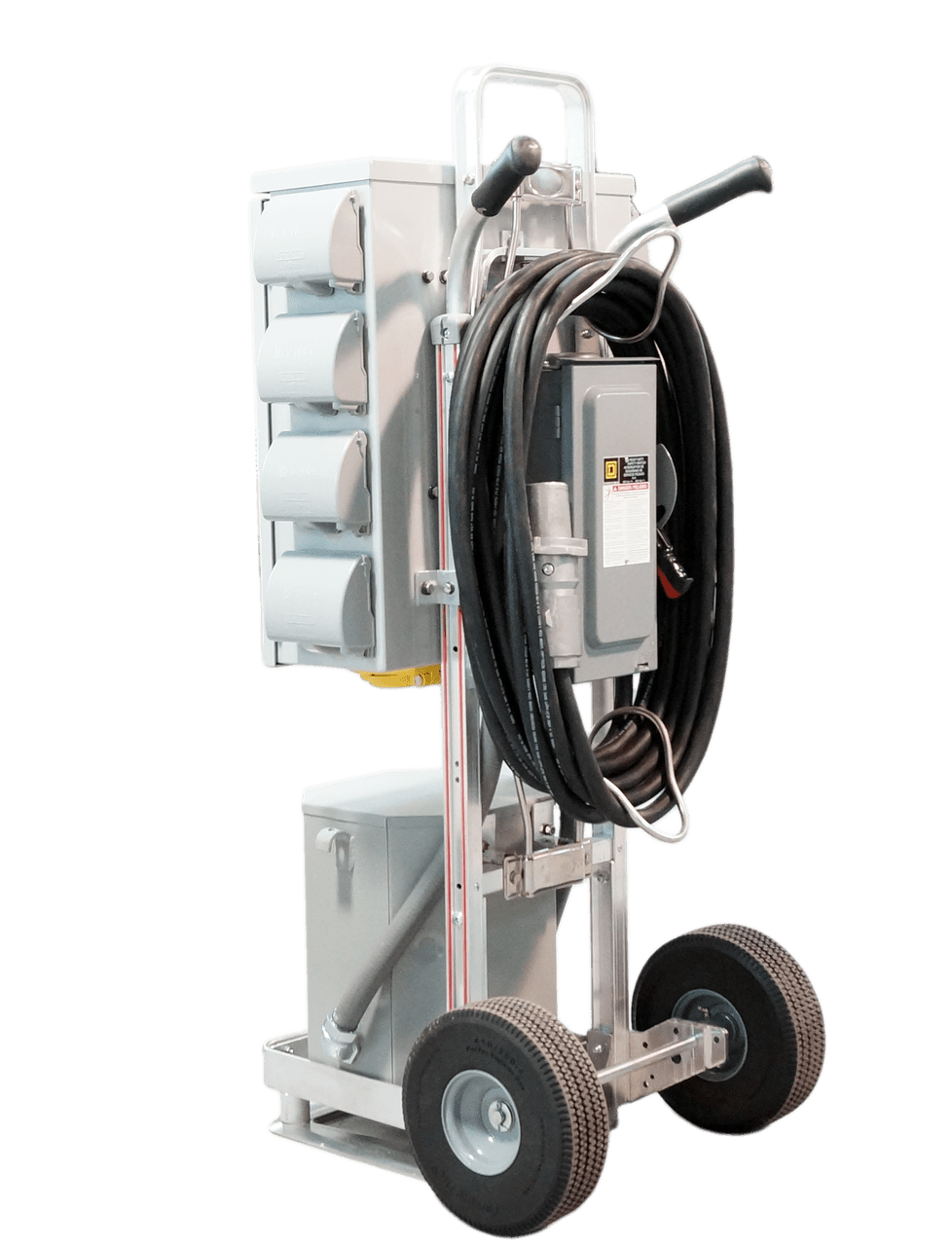

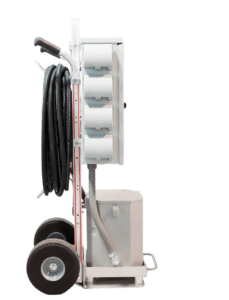

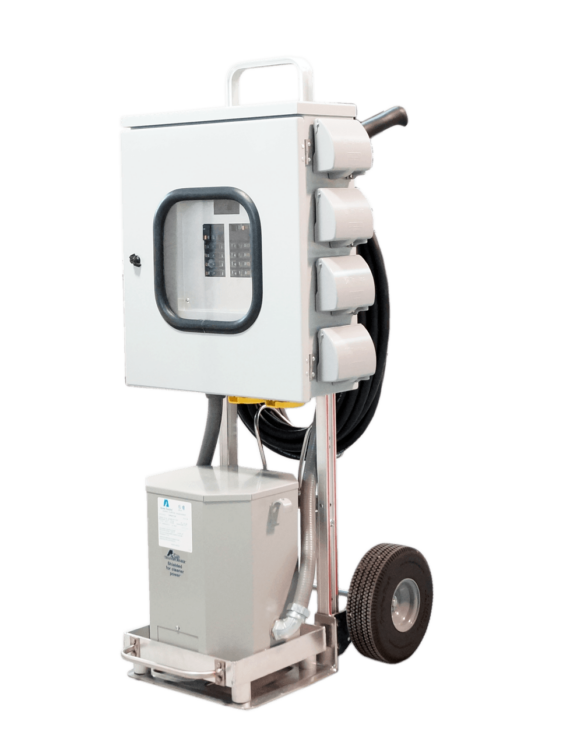

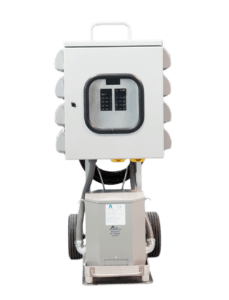

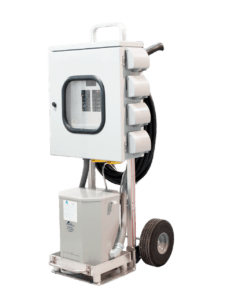

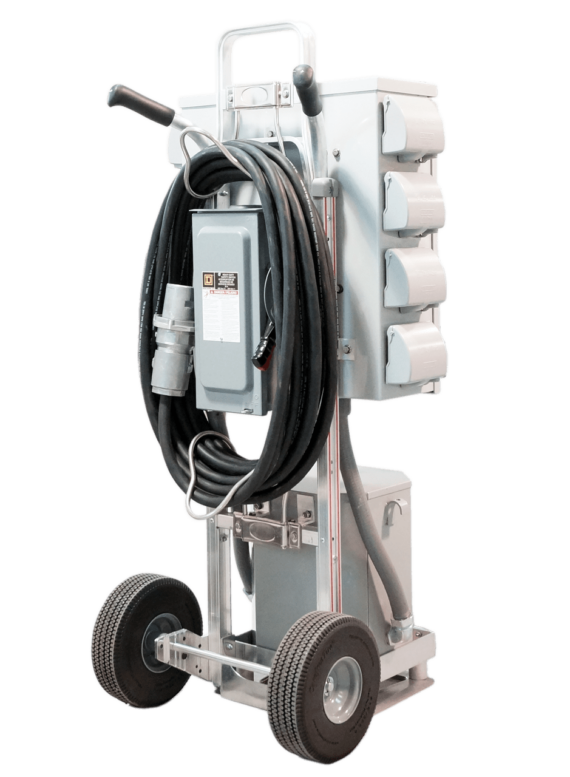

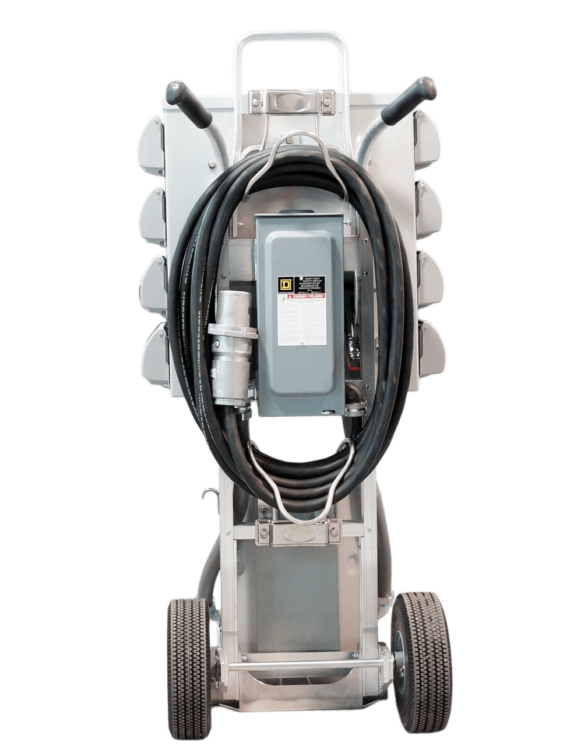

CleanAir’s UL-listed Mobile Power Distribution Station is a safe, temporary 120/240 VAC single split-phase system perfect for most field service applications. The portable power unit is mounted on a sturdy aluminum two-wheeled cart for easy maneuvering. It converts a single-phase 480VAC input into multiple 120V and 240V receptacles to power your entire field operation.
CleanAir’s UL-listed Mobile Power Distribution Station is a safe, temporary 120/240VAC single split-phase system perfect for most field service applications. The portable power unit is mounted on a sturdy aluminum two-wheeled cart for easy maneuvering. It converts a single-phase 480VAC input into multiple 120V and 240V receptacles to power your entire field operation.

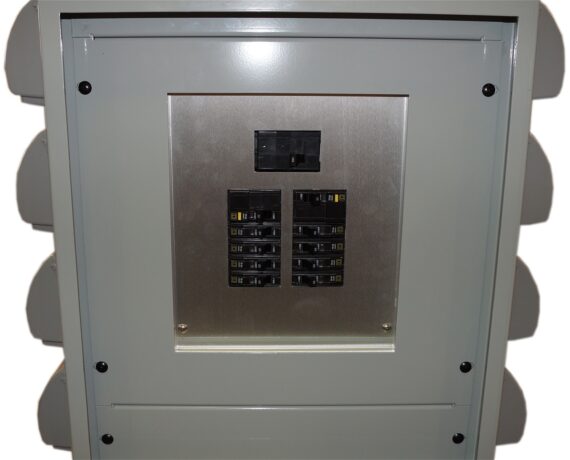

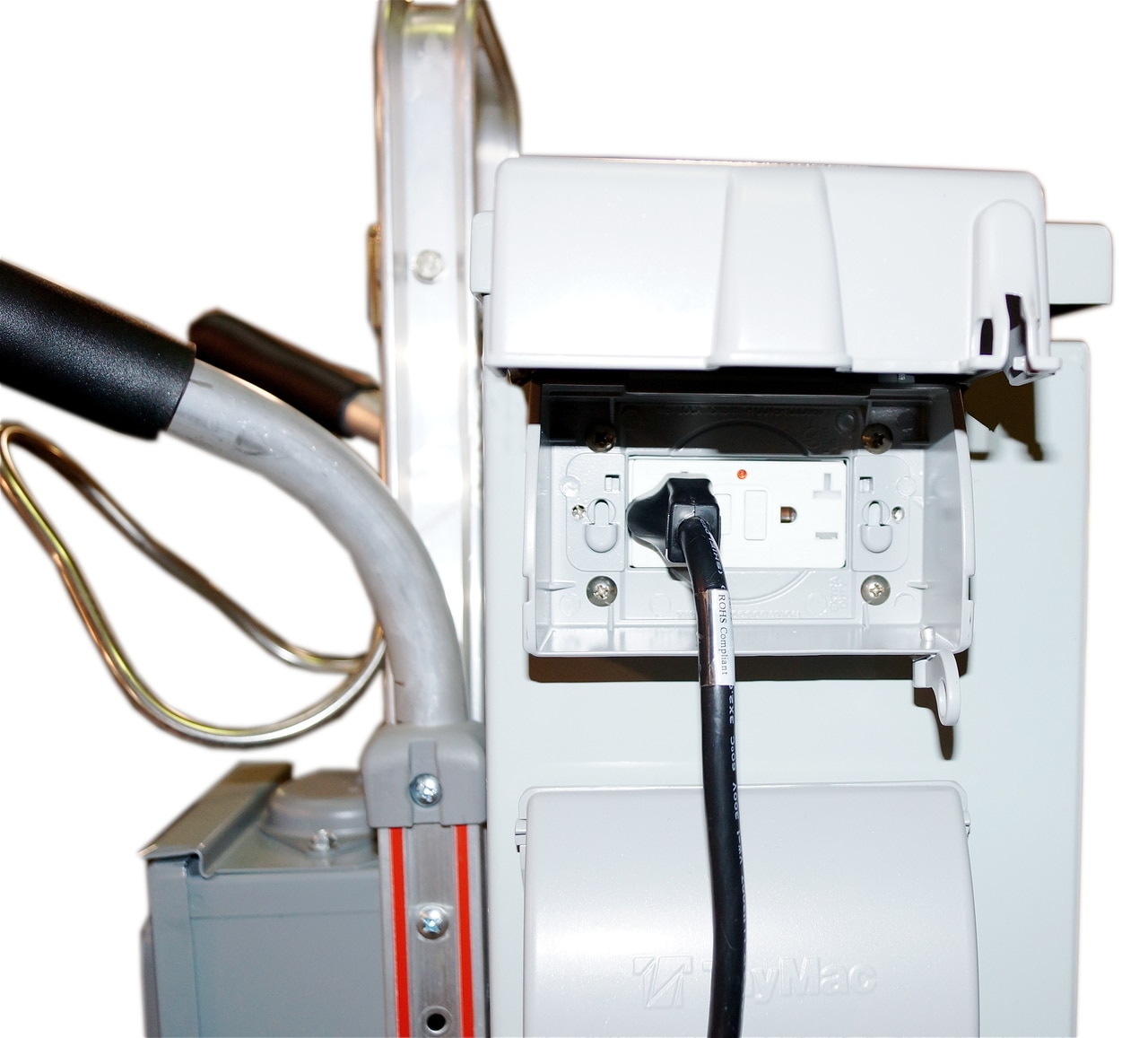

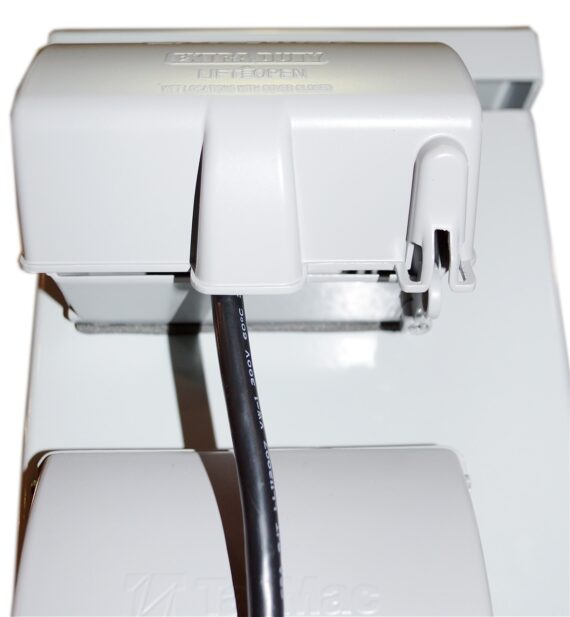

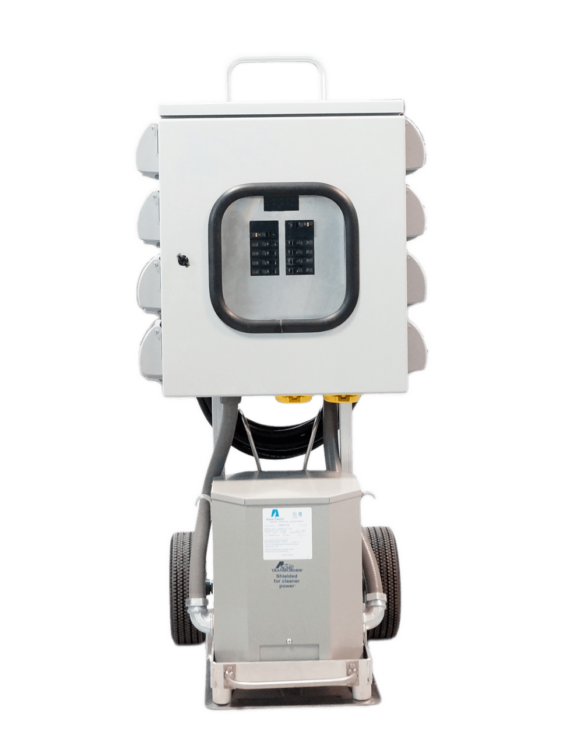

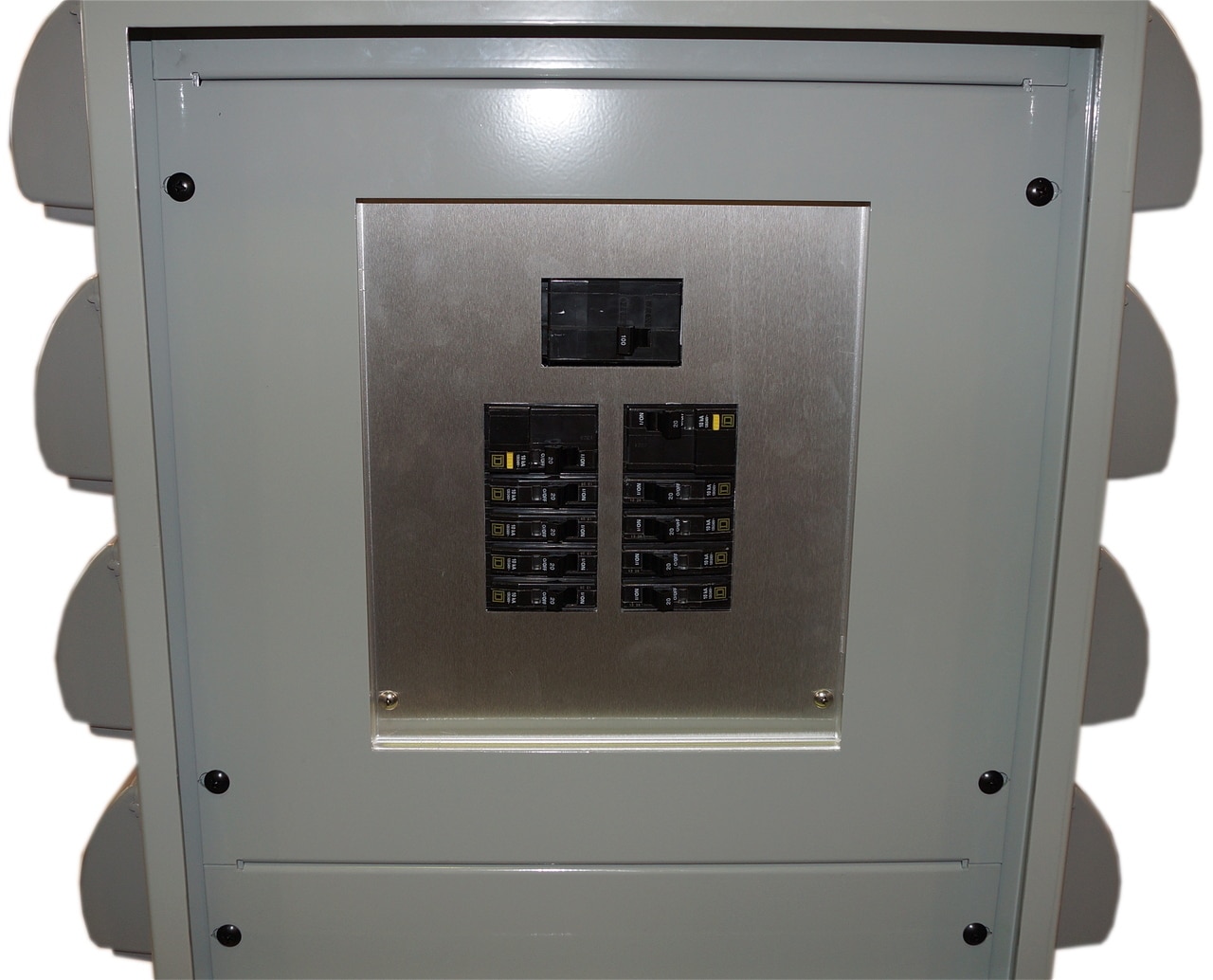

Each of the sixteen (16) 120VAC outlets is GFCI breaker-protected, safe for outdoor usage. The two (2) 240VAC outlets are equipped with heavy duty locking receptacles, and all circuit breakers are encased in a NEMA 3R weatherproof breaker box with window. When your field operations require power to several locations at one time, where standard electrical service is not readily available, no other solution compares to the CleanAir Mobile Power Distribution System.
Specifications
- Made in the USA
- UL Listed Portable Power Distribution Unit, E361114
- Transformer Type: 15 KVA, 30A Primary
- Voltage Rating: 480/120-240
- Line In: 480VAC Single Phase
- Line Out: 120VAC – 240VAC Single Phase
- 480VAC Mating Receptacle: VR642, AREA 6425 (Not Included)
- Color: Silver/Gray Cart
- Material: Aluminum
- NEMA Rating: 3R Weatherproof
- Temperature Limitations: 75°C
- 120VAC Outlet: 8-120 VAC GFCI receptacles (16 outlets)

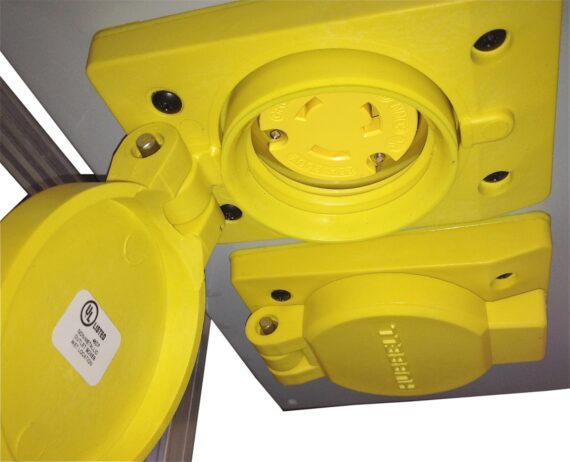

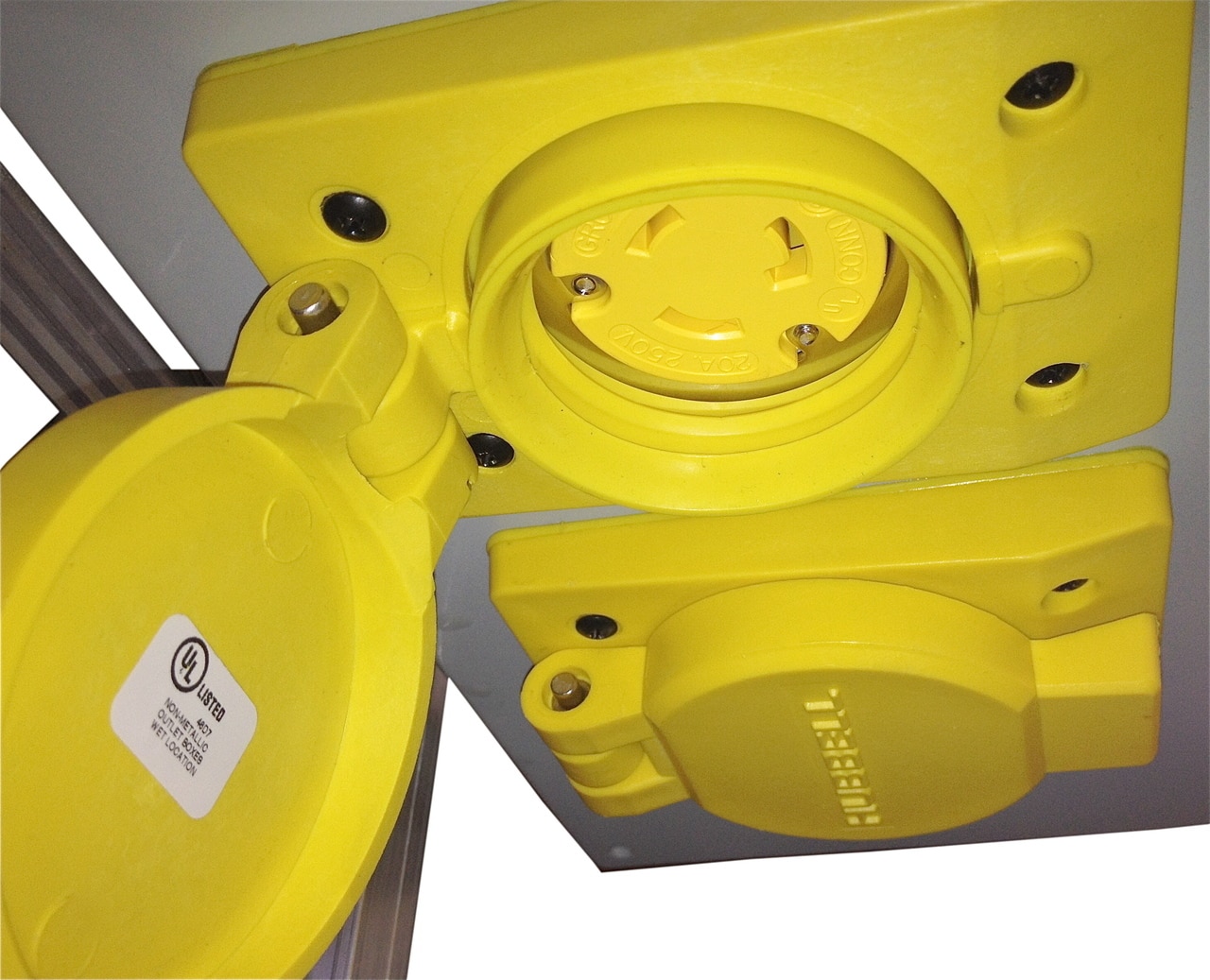

- 240VAC Outlet: 2 – 240VAC 20A locking receptacles (NEMA L6-20)

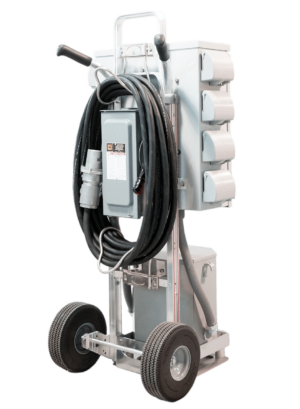

- Cord: 50′ power cord (100′ power cord – optional)
- Tires: No-Flat All Terrain foam-filled tires
- Weight: ~285 lbs
Features
- Custom voltage and power connection options available
- Safe, flexible temporary power to multiple remote locations
- NEMA 3R split service rated
- Temperature rated at 75°C
- A compact, mobile, industrial power solution
- Safety protection and labeling
- Pre-Assembled
- Engineering Support
- Complete installation instructions

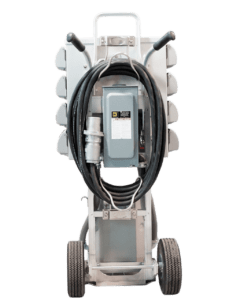

- Fused ON/OFF disconnect switch
Related Products
Applications
- Utility Plants
- Chemical Plants
- Refineries
- Job Sites
- Construction Sites
- Shipping
- Conventions
- Restoration Services
- Entertainment
- Food Processing
- Manufacturing
- Emergency
- Military
- Telecommunications
- Engineering
