CleanAir Rack-Mount Temperature Controller
$0.00 – $896.00

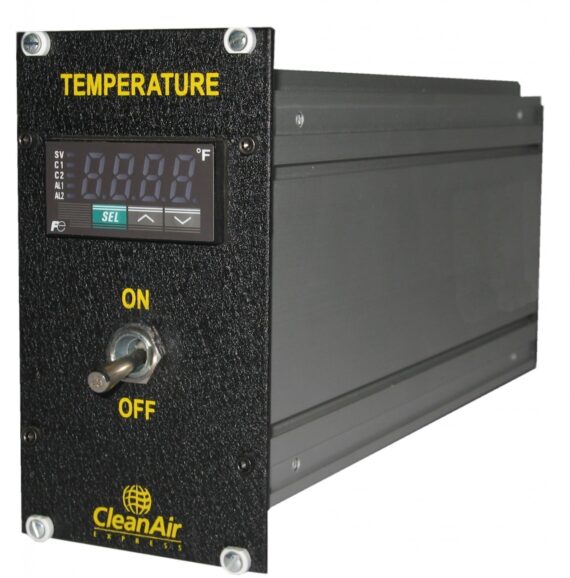

The CleanAir Engineering Rack-Mount Universal Temperature Controller is commonly used to control heated sample lines, ovens, heated head pumps, filters, and probes. This Controller can be adapted to control almost any type of heating load. Standard units feature a programmable digital temperature controller, 25-amp circuit breaker, 25-amp solid state relay output, Type K thermocouple input, and a 3-pin Amphenol electrical connector housed in a sub-rack-mountable aluminum enclosure.
The CleanAir Engineering Rack-Mount Universal Temperature Controller is commonly used to control heated sample lines, ovens, heated head pumps, filters, and probes. This Controller can be adapted to control almost any type of heating load. Standard units feature a programmable digital temperature controller, 25-amp circuit breaker, 25-amp solid state relay output, Type K thermocouple input, and a 3-pin Amphenol electrical connector housed in a sub-rack-mountable aluminum enclosure.
| Part Number | Item |
|---|---|
| 0725R | 120 VAC Rack-Mount Temperature Controller |
| 0725R240 | 240 VAC Rack-Mount Temperature Controller |
| 0725RR | 120 VAC Rack-Mount Temperature Controller with 4-20mA Re-transmission Signal |
| 0725RR240 | 240 VAC Rack-Mount Temperature Controller with 4-20mA Re-transmission Signal |
Specifications
- Voltage Requirement: 120V
- Power Requirement: Up to 25 Amps
- Overload Protection: 25A Manual Reset Circuit Breaker
- Sample Line Power Output Connection: Amphenol 3-pin
- Temperature Controller: 1/32 DIN Temperature Controller
- Thermocouple Connection: K-Type Panel Mount

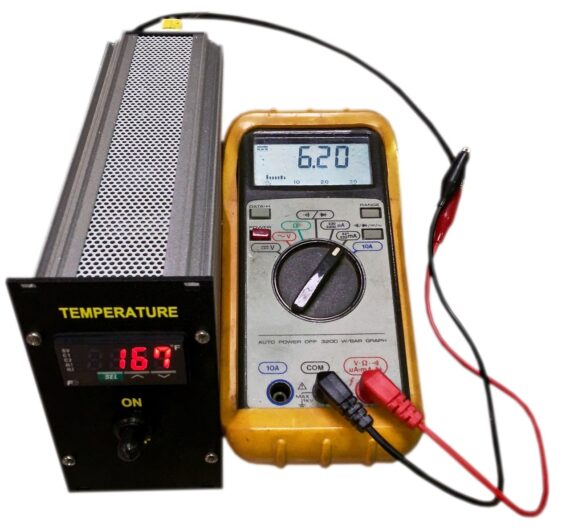

- Optional: 4-20 mA Retransmission Signal
- Service and Calibration Request
- Multiple Rack-Mount Temperature Controllers are available!
No additional documents available for this product
CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project. Contact us for more information.
