Circuit Breakers

Part Number

ItemImage

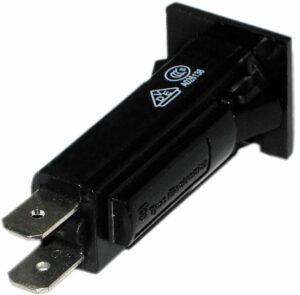

9113
  • Snap In Circuit Breaker 3 amp
  • Dimensions- 1.535″L x 0.76″W x 0.625″H
  • Mounting Hole- 0.625″ to 0.635″
  • Number of Poles- 1
  • Termination- Quick Disconnect
  • Voltage Rating- 250/ 32 VAC/VDC
9118
  • Snap In Circuit Breaker 5 amp
  • Dimensions- 1.535″L x 0.76″W x 0.625″H
  • Mounting Hole- 0.625″ to 0.635″
  • Number of Poles- 1
  • Termination- Quick Disconnect
  • Voltage Rating- 250/ 32 VAC/VDC

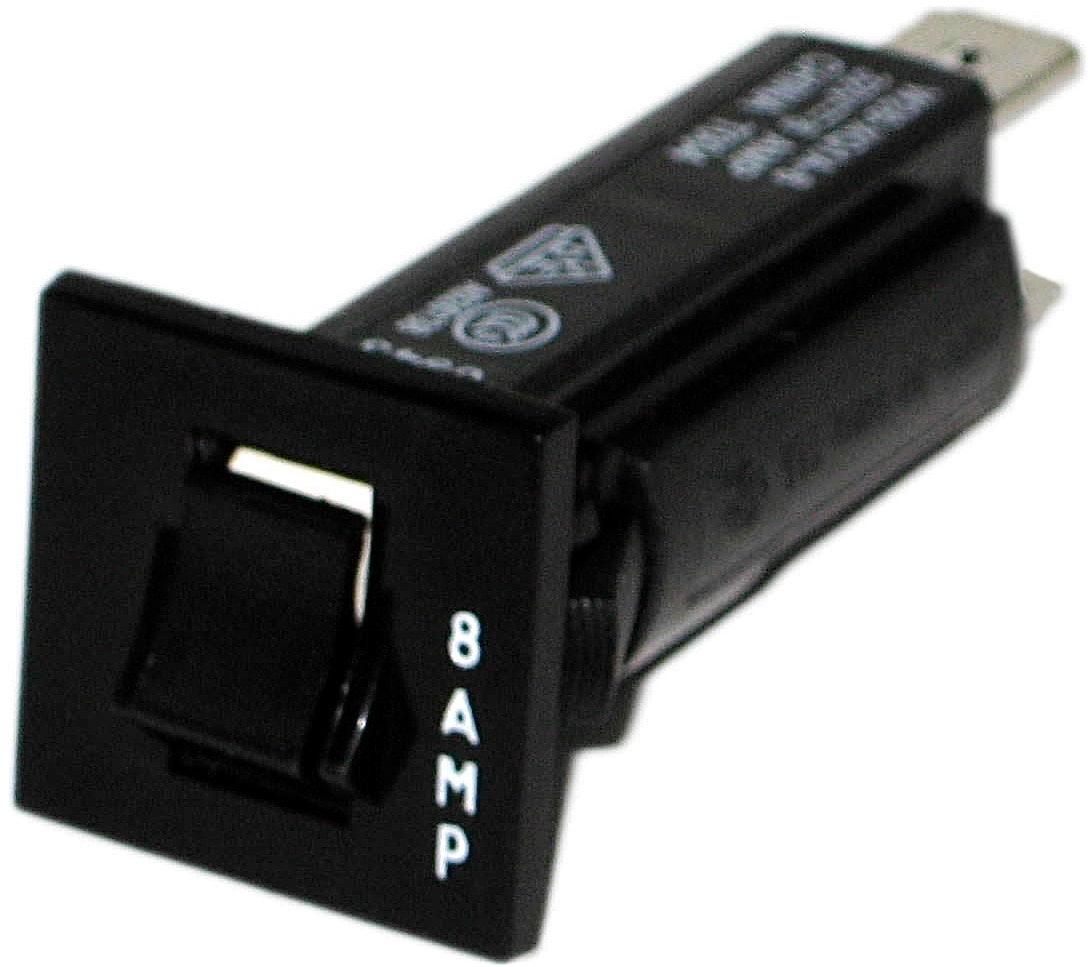

9112
  • Snap In Circuit Breaker 8 amp
  • Dimensions- 1.535″L x 0.76″W x 0.625″H
  • Mounting Hole- 0.625″ to 0.635″
  • Number of Poles- 1
  • Termination- Quick Disconnect
  • Voltage Rating- 250/ 32 VAC/VDC
9115
  • Snap In Circuit Breaker 10 amp
  • Dimensions- 1.535″L x 0.76″W x 0.625″H
  • Mounting Hole- 0.625″ to 0.635″
  • Number of Poles- 1
  • Termination- Quick Disconnect
  • Voltage Rating- 250/ 32 VAC/VDC

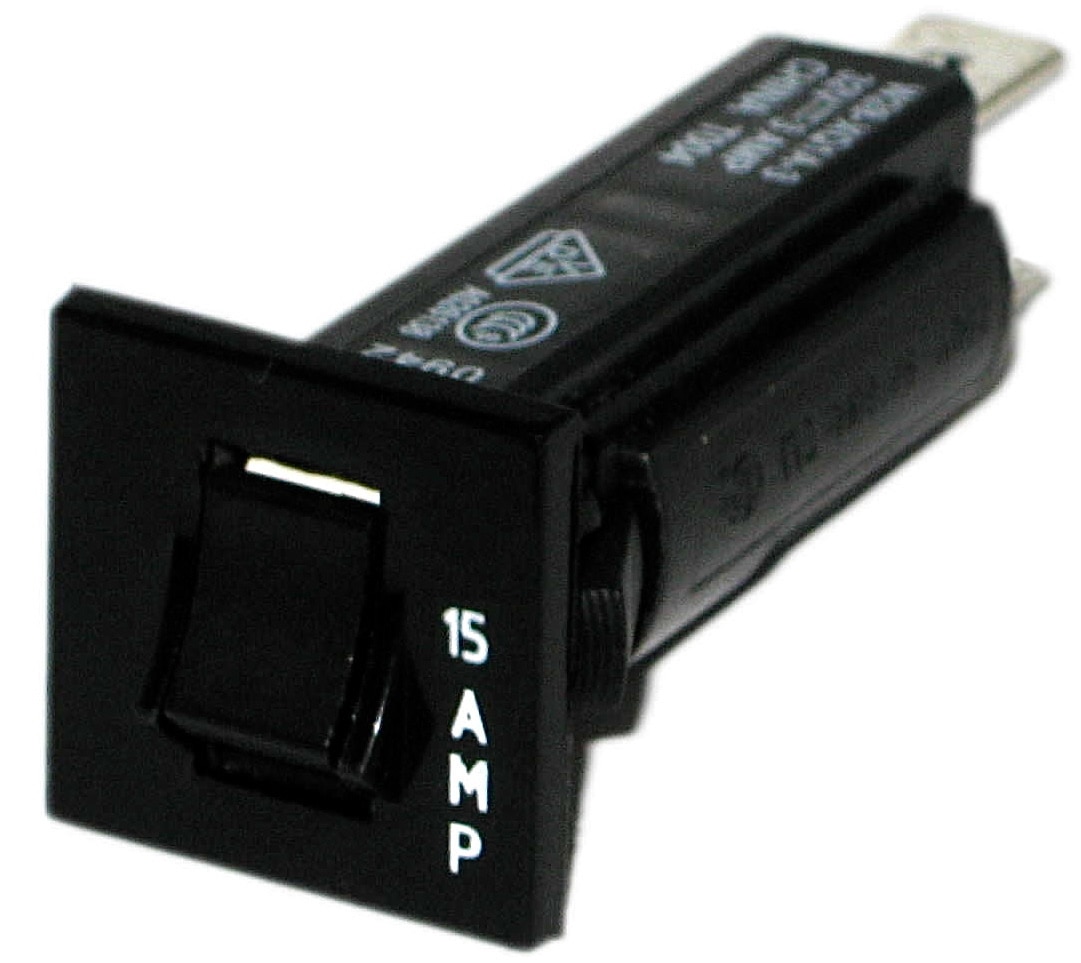

9114
  • Snap In Circuit Breaker 15 amp
  • Dimensions- 1.535″L x 0.76″W x 0.625″H
  • Mounting Hole- 0.625″ to 0.635″
  • Number of Poles- 1
  • Termination- Quick Disconnect
  • Voltage Rating- 250/ 32 VAC/VDC

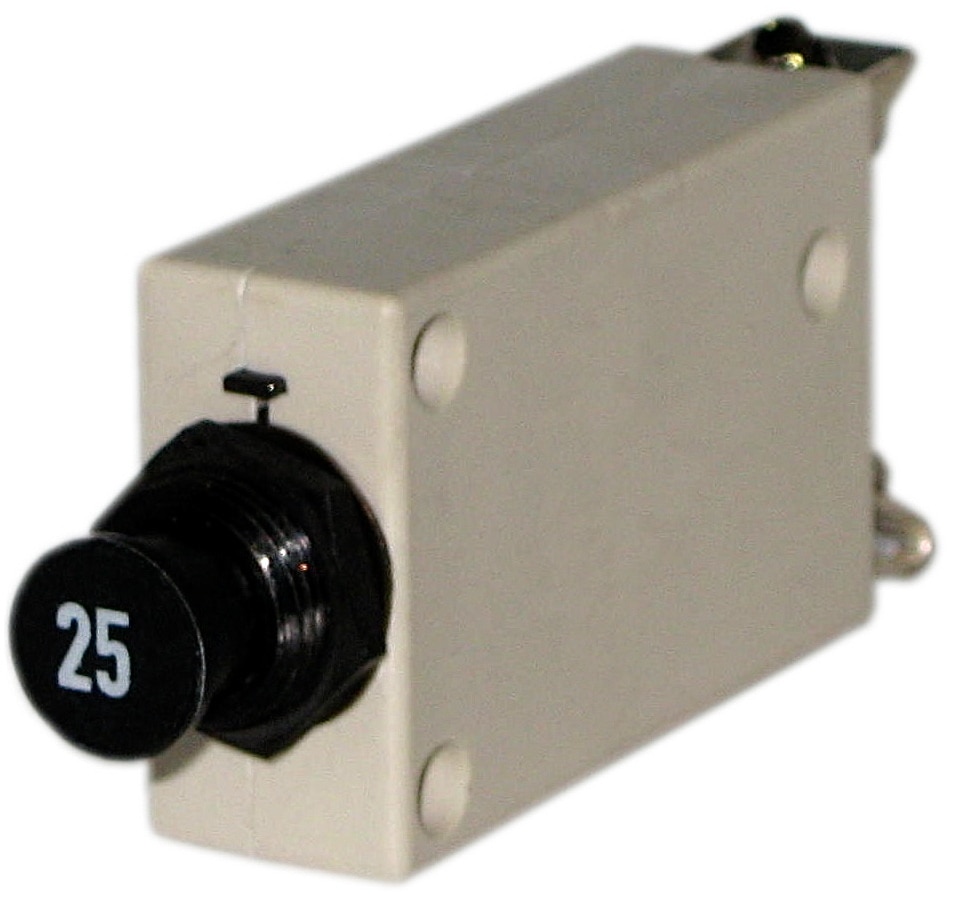

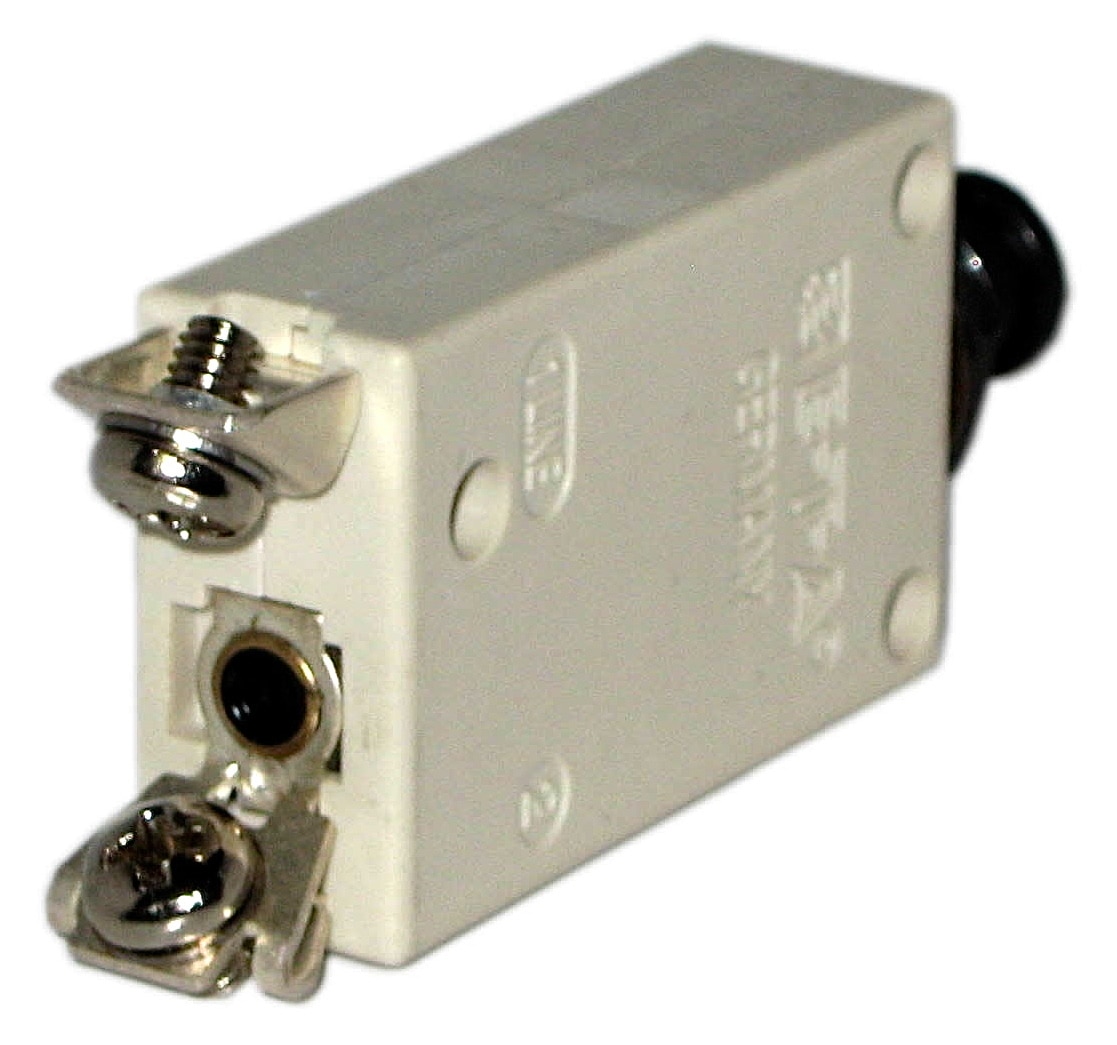

9125A
  • Push/Pull Panel Mount Circuit Breaker 25 amp
  • Dimensions- 1.14″L x 0.571″W x 1.81″H
  • Mounting Hole- 0.492″
  • Number of Poles- 1
  • Termination- Screws
9125E
  • Push/Pull Panel Mount Circuit Breaker 15 amp
  • Dimensions- 1.14″L x 0.571″W x 1.81″H
  • Mounting Hole- 0.492″
  • Number of Poles- 1
  • Termination- Screws

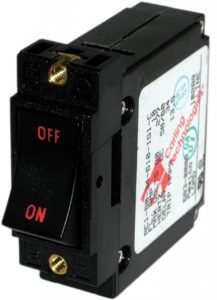

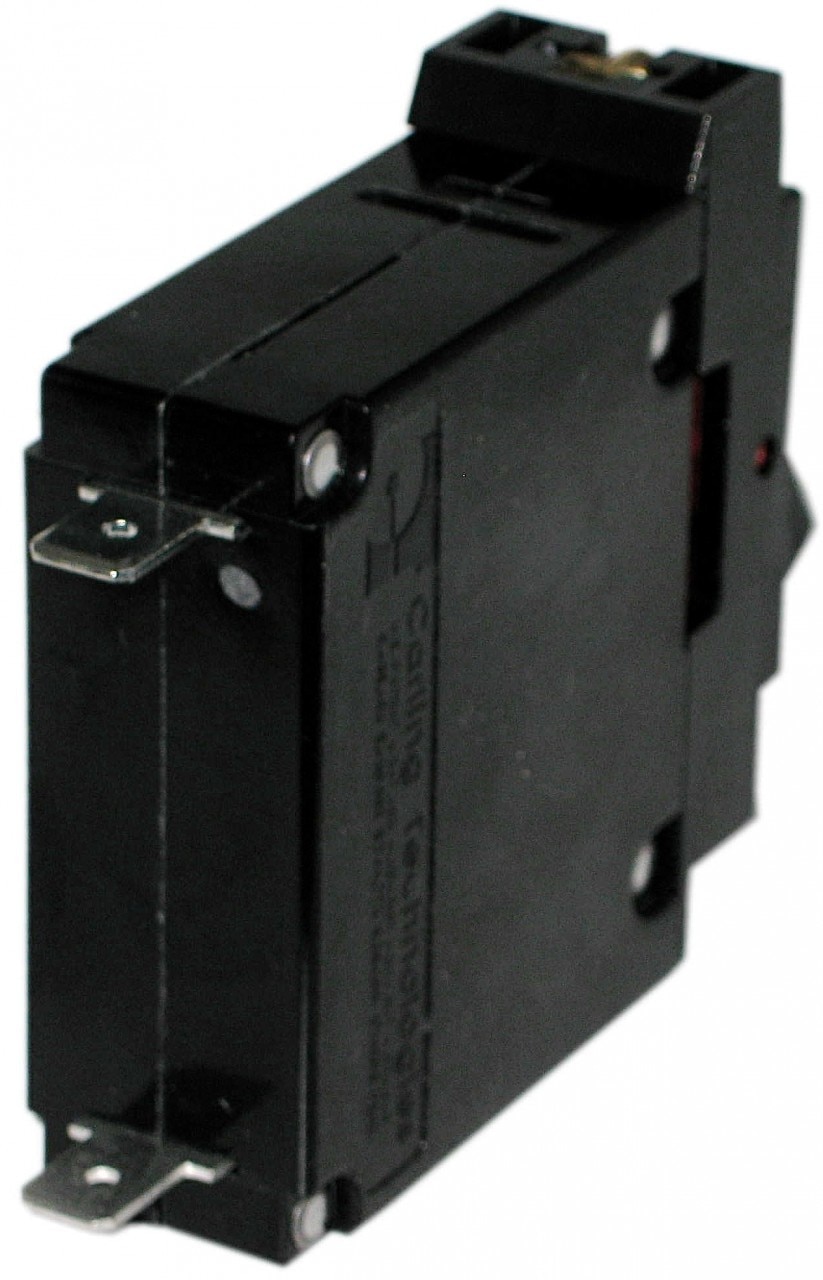

9136
  • Rocker Panel Mount Circuit Breaker 10 amp
  • Dimensions- 2.37″L x 0.755″W x 2.156″H
  • Mounting Hole- 0.156″
  • Panel Cut-out- 1.260″H x 0.750″W
  • Number of Poles- 1
  • Termination- Quick Disconnect
9134
  • Rocker Panel Mount Circuit Breaker 15 amp
  • Dimensions- 2.37″L x 0.755″W x 2.156″H
  • Mounting Hole- 0.156″
  • Panel Cut-out- 1.260″H x 0.750″W
  • Number of Poles- 1
  • Termination- Quick Disconnect
9135
  • Rocker Panel Mount Circuit Breaker 30 amp
  • Dimensions- 2.37″L x 0.755″W x 2.156″H
  • Mounting Hole- 0.156″
  • Panel Cut-out- 1.260″H x 0.750″W
  • Number of Poles- 1
  • Termination- Quick Disconnect

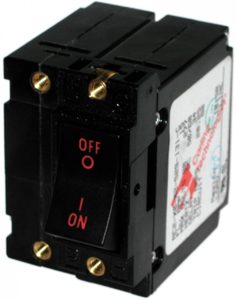

9140
  • Rocker Panel Mount Circuit Breaker 15 amp 240 volt
  • Dimensions- 2.37″L x 0.755″W x 2.156″H
  • Mounting Hole- 0.156″
  • Panel Cut-out- 1.260″H x 0.750″W
  • Number of Poles- 1
  • Termination- Quick Disconnect
Weight0.226796 lbs
Dimensions9 × 9 × 1 in
Circuit Breaker Style

Push/Pull Panel Mount, Rocker Panel Mount, Snap In

Amperage

10 amp, 15 amp, 15 amp 240 volt, 25 amp, 3 amp, 30 amp, 5 amp, 8 amp
