Solid Thermocouples

Solid Thermocouples

$37.13$203.68

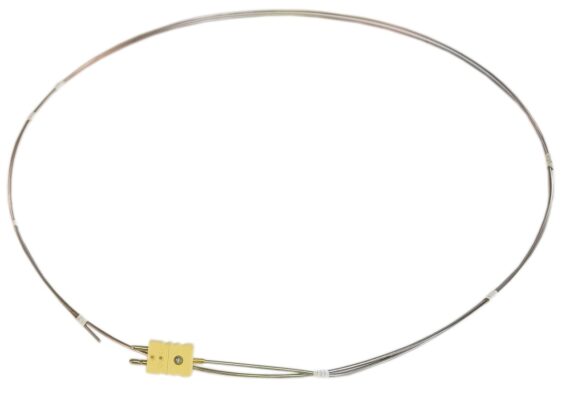

Solid Thermocouples are available in a wide range of lengths, sizes and materials and are used with a variety of CleanAir sampling probes and other products. From 6 inches to 14 feet in effective instrument length, Solid Thermocouples are available in Inconel alloy and stainless steel. Calibration is available on select configurations.

Clear

SKU:
315.5
Share:

Solid Thermocouples are available in a wide range of lengths, sizes and materials and are used with a variety of CleanAir sampling probes and other products. From 6 inches to 14 feet in effective instrument length, Solid Thermocouples are available in Inconel alloy and stainless steel. Calibration is available on select configurations.

Part NumberItem
0315.56″ solid thermocouple .250 O. D.
03152*27″ solid thermocouple .125 O. D. for 2′ effective instrument
0315339″ solid thermocouple .125 O. D. for 3′ effective instrument
03154*51″ solid thermocouple .125 O. D. for 4′ effective instrument
0315563″ solid thermocouple .125 O. D. for 5′ effective instrument
03156*75″ solid thermocouple .125 O. D. for 6′ effective instrument
0315787″ solid thermocouple .125 O. D. for 7′ effective instrument
03158*99″ solid thermocouple .125 O. D. for 8′ effective instrument
03159111″ solid thermocouple .125 O. D. for 9′ effective instrument
031510*123″ solid thermocouple .125 O. D. for 10′ effective instrument
031511135″ solid thermocouple .125 O. D. for 11′ effective instrument
031512*147″ solid thermocouple .125 O. D. for 12′ effective instrument
031513159″ solid thermocouple .125 O. D. for 13′ effective instrument
031514*171″ solid thermocouple .125 O. D. for 14′ effective instrument
* Inconel Alloy 600 Thermocouples available with even Part Numbers (add suffix I at end of part number)

Features

  • Type “K” thermocouple, grounded
  • Stainless steel sheath
  • 1/8″ O. D. with standard K-Type male plug
  • Continuous Temperature Limit-1600°F
  • Custom Thermocouple available in as few as three days.
  • Conforms to ISA MC 96.1 ASTM 470-B

Thermocouple calibrations are defined as a “Calibration Certificate at Temperature” and they are performed to ISO/IEC #17025 and NIST & ISA #MC 96.1 standards (Traceable).

Solid Thermocouples are Used With:

Weight0.045359 lbs
Dimensions18 × 18 × 0.1 in
Material

Inconel Alloy 600, Stainless Steel

Solid Thermocouple Length

171" @ 0.125" O.D., 159" @ 0.125" O.D., 147" @ 0.125" O.D., 135" @ 0.125" O.D., 123" @ 0.125" O.D., 111" @ 0.125" O.D., 99" @ 0.125" O.D., 87" @ 0.125" O.D., 75" @ 0.125" O.D., 63" @ 0.125" O.D., 51" @ 0.125" O.D., 39" @ 0.125" O.D., 27" @ 0.125" O.D., 6" @ 0.250" O.D.

Thermocouple Calibration

2-Point Calibration, 4-Point Calibration, None
