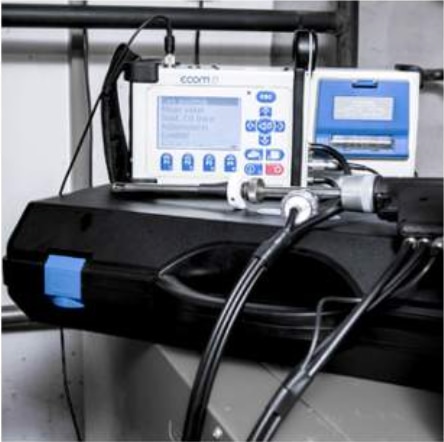

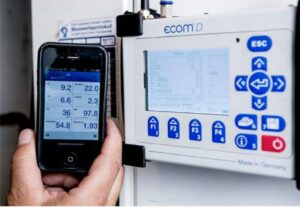

Functioning as a durable handheld that easily fits in the palm of your hand or as a case mounted analyzer, the ecom D portable gas analyzer is built with our customers in mind. Powerful magnets on the back of the analyzer allow the technician to work hands free during any combustion analysis for increased efficiency. The ecom-D utilizes the newest technology and world-class engineering to push the limits of what is possible in compact, portable analyzers. Available with up to six sensors, this analyzer is engineered to adapt to our customers individual needs and allows for custom configuration by adding optional features such as a thermal quick-printer for instant documentation, Wi-Fi data transfer and mini-gas cooler for better NOx efficiency at sub-10ppm levels.

The ECOM D is a compact portable combustion analyzer, offering features found on larger, more expensive units.

ECOM D Standard Features

  • Up to 6 Electrochemical Sensors
  • Sensor Options: 02, CO, NO, NO2, SO2 and CxHy
  • 15ft Standard Sample Line*
  • CO Purge Pump to Prevent Oversaturation
  • Condensate Trap
  • Ambient Cooler Sample Conditioner
  • Flue Gas, Ambient, & Sensor Temperature
  • Averaging Test Feature
  • Onboard Calculations for CO2, Efficiency, Excess Air and O2 Correction
  • 1ft Inconel Probe*
  • *Other lengths available. Please ask an ECOM sales associate for details.

ECOM D Sensors

  • O2
  • CO
  • NO
  • NO2
  • SO2
  • CxHy

Up to six sensors capability is several configurations including IR sensors for CO2, CH4, for basic spot checking, tuning, and compatible to run with our e-Comply software

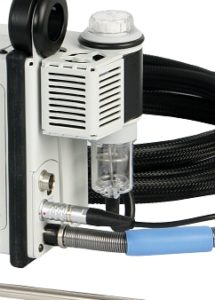

  • The ECOM D is a modular system, available with seperate thermoelectric cooler & thermal printer modules
  • Batteries: 3-5 hour battery life, 6V 3.3Ah (Li-Ion)
  • Pump: Flow rate of 0.8-1.01 lpm
  • Display: Backlit, adjustable contrast/zoom, (Displays all parameters simultaneously)

No additional documents available for this product
