Elliptical Pitot Tube for Water Flow Measurement

A Better Alternative to the Simplex Type Pitot Tube

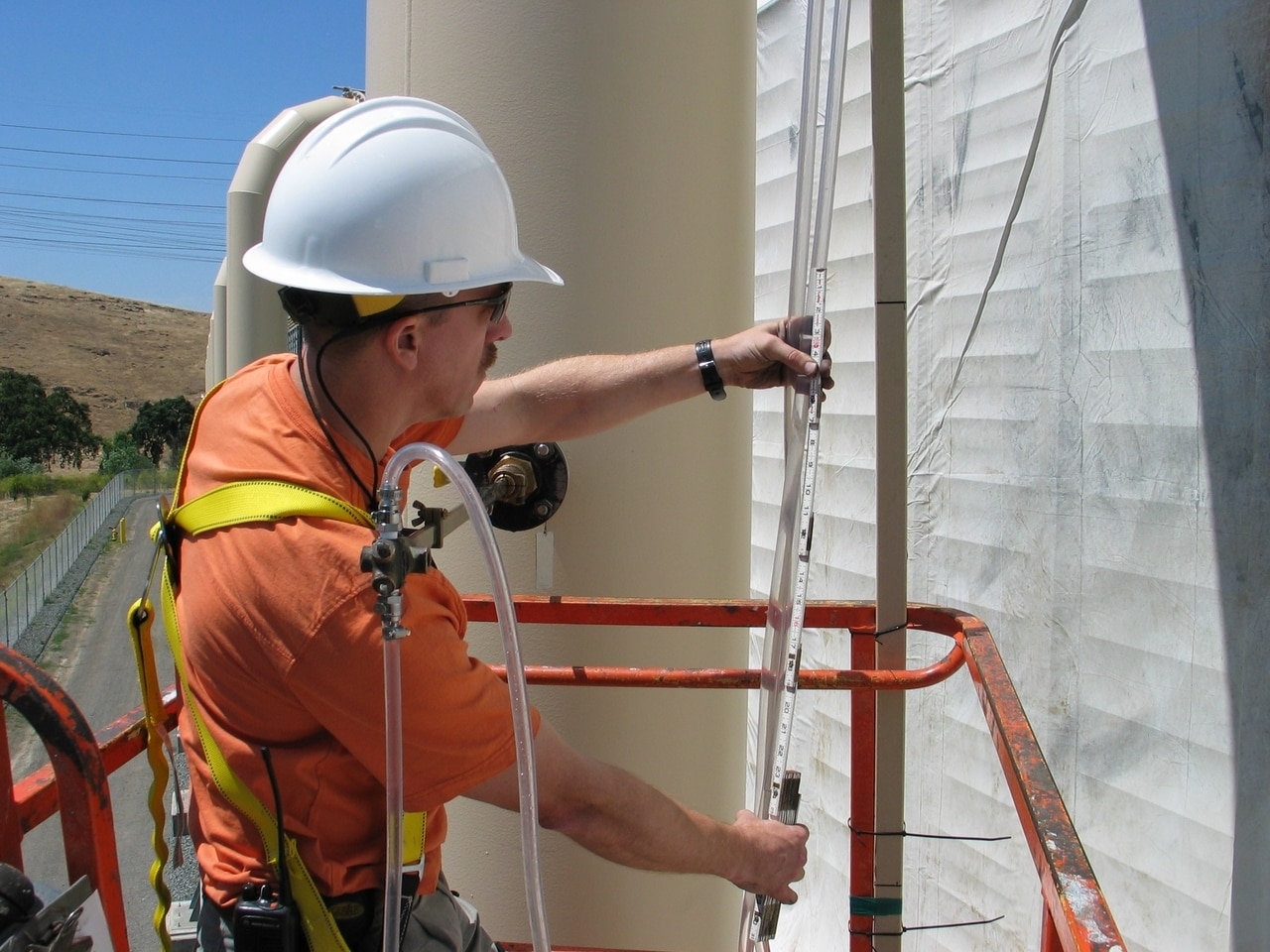

Water flow rate is often a critical measurement for various power plant components and systems including cooling towers, pumps, and condensers. For over 40 years the Simplex-type Pitot Tube has been the industry standard for accurate water flow measurement, however the Simplex Tube is no longer commercially available.

In addition, the results of from Simplex Tubes have long been suspect in the most challenging flow situations. Under contract to the Cooling Technology Institute (CTI), CleanAir conducted a research study to identify alternative pitot designs (CTI Case Study). This work culminated in 2017 with the introduction of the Elliptical Pitot Tip.

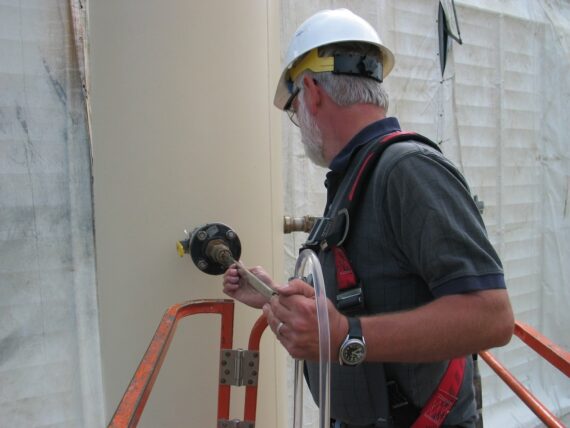

Each pitot will be dimension from the sensing tip to end where handles can be used for alignment and rotation as needed. Each pitot stinger will be dimension as the full length protruding from the end of the reinforcing rod. Packing glands will be included to accommodate pitot insertion in an active pipe. Calibration services are available across a variety of flow settings and fluid velocities. CleanAir will supply a procedure for how to measure flow and a flow calculation spreadsheet for pitot station calculation and flow calculation consistent with CTI methodology with each pitot tube or pitot stinger purchase.

Advantages of Elliptical Pitot Tube

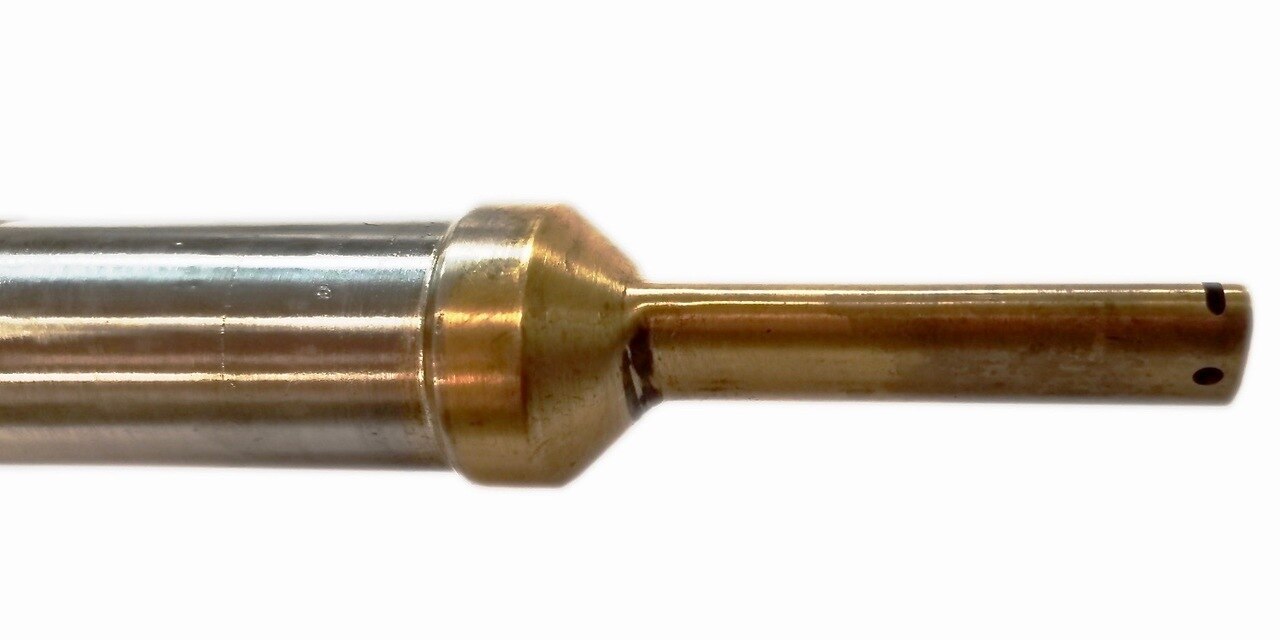

  • Less sensitivity to Reynolds number
  • Allows measurements closer to the pipe wall than other designs
  • Better Accuracy in disturbed flow situations
  • Flow measurements made with the elliptical pitot tube are much less sensitive to flow disturbances than the Simplex pitot tube resulting in more accurate flow measurements in less than ideal piping configurations.
  • The study demonstrated that the coefficient for the elliptical tube pitot has a very low dependence on Reynolds number. This is a very desirable characteristic because it reduces the number of calibration points required to accurately determine the pitot coefficient and means that calibration data translates well to field settings.

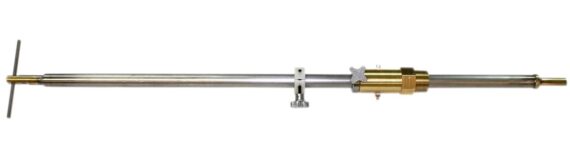

Elliptical Pitot TubeEach Assembled Pitot Tube Includes:

  • 1-1/4” NPT packing gland with locking collar, dual O-rings, and grease fitting
  • Quick disconnect fittings that prevent flow when not connected
  • Locking shaft collar for ease of marking the far wall of the pipe (automatically adjusts for 1/8” distance between tip and impact port)
  • Construction from highly corrosion resistant 316 stainless steel and brass

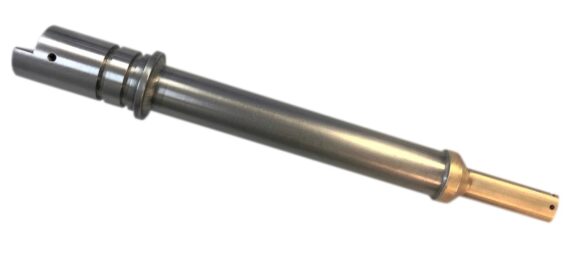

Each Pitot Stinger Includes:Elliptical Pitot Tube Stinger

  • Two 1/8” NPT to ¼” barb fittings from the impact and static pressure ports
  • Low profile hose clamps
  • Three O-rings
  • Construction from highly corrosion resistant 316 stainless steel and brass
Part Number
0301CTI – Elliptical Pitot Tube Assembly

No additional documents available for this product
