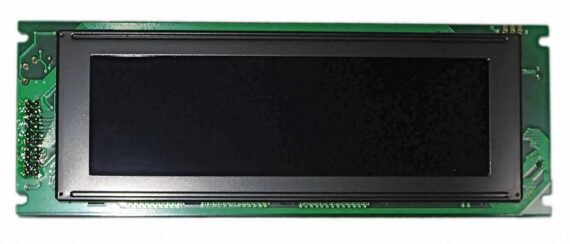

LCD Character Display Modules

-23%
Full Screen

LCD Character Display Modules

Original price was: $284.00.Current price is: $219.95.

Purchase Proposal
SKU:
972
Tag:

LCD Character Display Modules

  • Module Dimensions (Length x Width x Thickness)
    • ~7.09″ x 2.56″ x 1.15″
    • 180mm x 65mm x29.1mm
  • Display Dimensions (Lenght x Width)
    • ~5.2″ x 1.54″
    • 132.2mm x 39.2mm
  • Pixel Dimensions (Rows x Columns)
    • 64 x 240
  • Background Display Color
    • Blue
  • Text Display Color
    •   White
  • Limited Quantities

  • Output (GPO)
    • 1
  • Interface (RS232)
    • 9600, 19200, 33600, 56700, 115200
    • Buffer- 92
  • Operating Conditions
    •  4 to +158 F
    • -20 to +70 C
    • Max Humidity- 90.0%
  • Voltage Requirements
    • +9 to +35Vdc
  • Powere Requirements
    • Supply Current – 31
    • Backlight Current- 160mA


Part Number
0972

No additional documents available for this product
