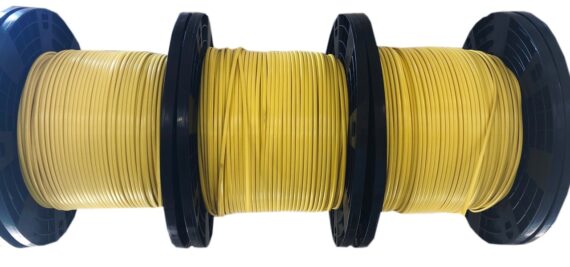

products-0315s_spools__82786.1559922423.1280.1280.jpg zoom

Hover

products-0315g__78018.1559922363.1280.1280.jpg zoom

Hover

Full Screen

Thermocouple Wire

$23.00 – $99.00

Clear

Add to Quote
SKU:
0315G
Categories:
, , , ,
Tag:
Share:

No additional documents available for this product

Thermocouple Wire

Insulated Thermocouple Wire



Clean Air Engineering stocks various sizes of thermocouple panel mounts, thermocouple plugs and thermocouple wire.  We stock primarily Type K thermocouples but can obtain other type thermocouples if needed. Clean Air Express has a huge selection of Thermocouples & Thermocouples accessories Custom Lengths available.



Part NumberItem
0315-G
Type K wire, glass braid insulation, 20 AWG, (900 Deg. F)
0315-S
Type K wire, polyvinyl insulation, (stranded) 20 AWG
0315-T
Type K wire, Teflon ® insulation, 22 AWG, (450 Deg. F)

Glass Braid Insulation Thermocouple Wire

  • Thermocouple Grade- Type K
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Wire Material- + Chromega – Alomega
  • Gauge Wire- 20 AWG
  • Type Wire- Solid
  • Insulation- Glass Braid
  • Max Temp- 900 °F 482 °C
  • Part Number 0315-G

Thermocouple Extension Wire

  • Thermocouple Grade- Type K
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Wire Material- + Chromega – Alomega
  • Gauge Wire- 20 AWG
  • Type Wire- Stranded
  • Insulation- Polyvinyl
  • Part Number 0315-S

Teflon Insulation Thermocouple Wire

  • Thermocouple Grade- Type K
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Wire Material- + Chromega – Alomega
  • Gauge Wire- 22 AWG
  • Type Wire- Solid
  • Insulation- Teflon ®
  • Max Temp- 450 °F 232 °C
  • Part Number 0315-T

Similar Thermocouple Products





Weight0.013608 kg
Dimensions9 × 9 × 0.5 cm
Material

Glass, Polyvinyl, Teflon

Length/FT

100', 25', 50', 75'
