Thermocouple Panel Mount

Thermocouple Panel MountClean Air Engineering stocks various sizes of thermocouple panel mounts, thermocouple plugs and thermocouple wire.  We stock primarily Type K thermocouples but can obtain other type thermocouples if needed. Clean Air Express has a huge selection of Thermocouples & Thermocouples accessories Custom Lengths available.
Part Number
Item
0316-PMSI
Type K, standard female, panel mount snap in (1.2″ x 0.64″ cutout)
0316-PMMINI
Type K, standard female, panel mount in 1/2″ conduit hole
0316-SM
Type K, mini female, panel mount snap in (0.66″ x 0.32″ cutout)

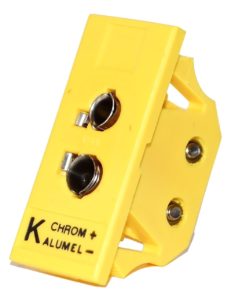

Standard Female Panel Mount Snap In Jack

  • Thermocouple Grade- Type K
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Easy Mount with Interlocking Snap In
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 14 AWG
  • Max Temp- –29 to 220 °C
  • Snap In Cutout 1.2″ x .64″
  • Part Number 0316PMSI

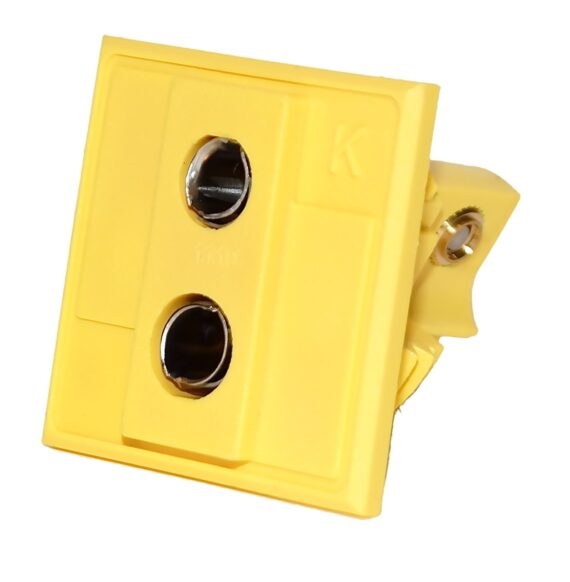

Standard Female Panel Mount in 1/2″ Conduit Hole

  • Thermocouple Grade- Type K
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Easy Mount with Nut
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 14 AWG
  • Max Temp- –29 to 220 °C
  • Mounting Hole- 1/2″ Conduit
  • Part Number 0316-SM

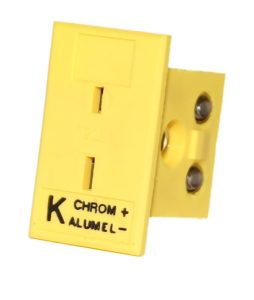

Mini Female Panel Mount Snap In Jack

  • Thermocouple Grade- Type K
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Easy Mount with Spring Clip
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 20 AWG
  • Max Temp- –29 to 220 °C
  • Snap In Cutout .66″ x .32″
  • Part Number 0316PMMINI

Similar Thermocouple Products

Weight0.02268 lbs
Dimensions5 × 5 × 0.05 in
Size

Mini, Standard

Mounting

1/2" Conduit, Snap In
