Thermocouple Plugs

$4.37 – $4.81

Clear

Add to Quote
SKU:
0316M-
Categories:
, , , ,
Tag:
Share:

No additional documents available for this product

Thermocouple Plugs

Thermocouple PlugsClean Air Engineering stocks various sizes of thermocouple panel mounts, thermocouple plugs and thermocouple wire.  We stock primarily Type K thermocouples but can obtain other type thermocouples if needed. Clean Air Express has a huge selection of Thermocouples & Thermocouples accessories Custom Lengths available.

Part Number
Item
0316-F
Plug, type K, standard female
0316-M
Plug, type K, standard male
0316-FM
Plug, type K, mini female
0316-MM
Plug, type K, mini male

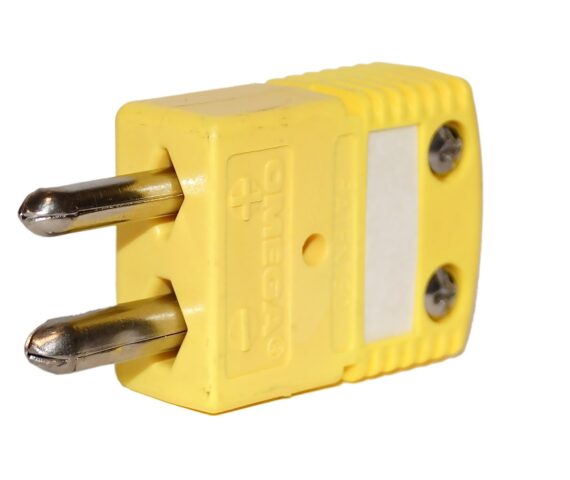

Standard Male Thermocouple Plug

  • Thermocouple Grade- Type K
  • Type- OSTW- Glass Filled Nylon
  • Operating Temp- -29 to 220 °C
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 14 AWG
  • Captive Cover Screws
  • Internal Wire Divider
  • Part Number 0316-M

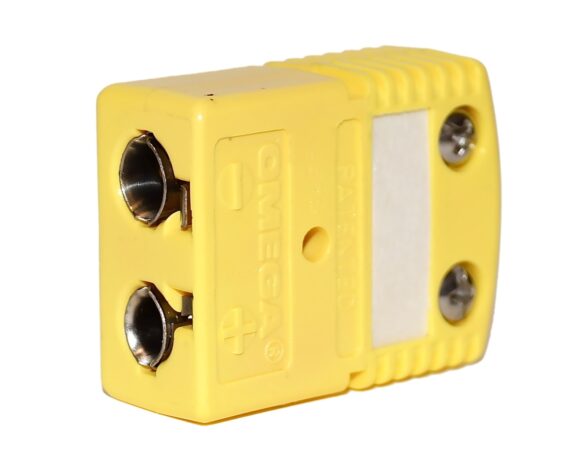

Standard Female Thermocouple Plug

  • Thermocouple Grade- Type K
  • Type- OSTW- Glass Filled Nylon
  • Operating Temp- -29 to 220 °C
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 14 AWG
  • Captive Cover Screws
  • Internal Wire Divider
  • Part Number 0316-F

Mini Male Thermocouple Plug

  • Thermocouple Grade- Type K
  • Type- OSTW- Glass Filled Nylon
  • Operating Temp- -29 to 220 °C
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 14 AWG
  • Captive Cover Screws
  • Internal Wire Divider
  • Part Number 0316-MM

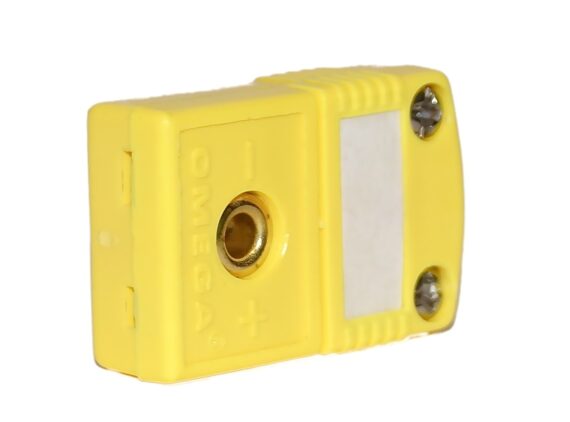

Mini Female Thermocouple Plug

  • Thermocouple Grade- Type K
  • Type- OSTW- Glass Filled Nylon
  • Operating Temp- -29 to 220 °C
  • ANSI Color Code- Positve- Yellow and Negative- Red
  • Pin Material- + Chromega – Alomega
  • Acceptable Gauge Wire- Stranded or Solid wire up to Size 14 AWG
  • Captive Cover Screws
  • Internal Wire Divider
  • Part Number 0316-FM

Similar Thermocouple Products

Weight0.045359 kg
Dimensions5 × 5 × 0.1 cm
Gender

Female, Male

Size

Mini, Standard
