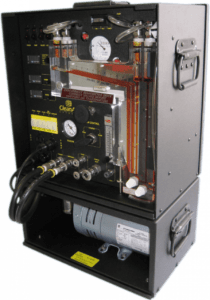

CleanAir Isokinetic Control Console with Pump

CleanAir Isokinetic Control Console with Pump

$0.00$9,002.68

The CleanAir Method 5 Isokinetic Control Console is designed to allow monitoring and control of temperatures, pressures, gas velocities and sample flow rates to maintain Isokinetic sampling conditions. Top quality components and field proven durability make this the most dependable control console you can buy. Compatible with most systems currently in use. Suitable for EPA methods: 4, 5, 5I, 6, 8, 8A, 13, 17, 23, 26, 29, and many more (with proper accessories).

SKU:
ICCwP-
Tags:
,

The CleanAir Method 5 Isokinetic Control Console is designed to allow monitoring and control of temperatures, pressures, gas velocities and sample flow rates to maintain Isokinetic sampling conditions. Top quality components and field proven durability make this the most dependable control console you can buy. Compatible with most systems currently in use. Suitable for EPA methods: 4, 5, 5I, 6, 8, 8A, 13, 17, 23, 26, 29, and many more (with proper accessories). For more information on this method, please visit the EPA’s CFR 40 website.

Specifications:

  • Sample Pump: Pulsation Free 1/3 HP Rotary Vane Vacuum Pump (26″ Hg Vac, 2 cfm @ 15″ Hg) 120 V / 230 V, 50 /60 Hz
  • Dry Gas Meter: S-275 (L/rev., ft./rev., & m3/rev. options)
  • Manometer: 8″ Dual Incline with Stainless Steel Quick-Connects Solenoid Valves Provide Zeroing Ability at any Time
  • Timer: Digital LCD with Battery Backup (Displays h, m, s)
  • Umbilical Power Output Connection: Amphenol 4-pin Fused
  • Auxiliary Power Output Connection: 3 pin 120 V Receptacle
  • Pitot Inlet Connections: 3/8″ Stainless Steel Quick Connects
  • Sample Inlet Connection: 1/2″” Stainless Steel Quick Connect with Stainless Steel Valves
  • Pumpless: Integrated Gas Sample System
  • Temperature Controllers: Solid State for Probe, Filter, and 6 Channel Selector
  • Thermocouple Connections: K-Type Panel Mount
  • Cabinets: Welded Aluminum, Detachable/Stackable Meter and Pump
  • Quick-Release: Access Doors for Both Meter and Pump
  • External Dimensions (h x w x d): 17.5″ x 12″ x 27″ (445 mm x 305 mm x 686 mm)
  • Weight: 70 lbs. (32 kg)
  • Service/Calibration
Part Number Item
0028 Isokinetic Control Console with Pump
0028220M Isokinetic Control Console with Pump (220 V Metric)
0028110M Isokinetic Control Console with Pump (110 V Metric)
0028PMP Pump Assembly U.S. 120 V
0028P220 Pump Assembly Metric 220 V
0028P220CE Isokinetic Control Console with Pump (220 V Metric) CE
Documents Tab User Manual Icon CleanAir User Manual PDF

Method 5 Isokinetic Sampling Console Leak Check Procedure
