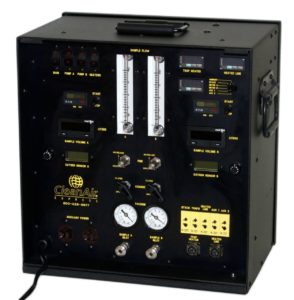

CATECO Method 30B Sample Console

CATECO Method 30B Sample Console

$500.00$8,518.00

The Method 30B Mercury Sampler measures total vapor phase mercury (Hg) emissions from coal fired sources. Knowledge of Methods 1, 4, and 5 is recommended. The testing should be done after the stack gas has passed through all pollution control devices, i.e. with a stream that is low in particulates. Method 30B is used to test the accuracy of current vapor phase Hg constant emissions monitoring systems (CEMS) and can also be used to test for the compliance of mercury emissions standards. The method requires a minimum of two simultaneous sampling trains. For more information on this method, visit the EPA’s CFR 40 website.

Clear

The Method 30B Mercury Sampler measures total vapor phase mercury (Hg) emissions from coal fired sources. Knowledge of Methods 1, 4, and 5 is recommended. The testing should be done after the stack gas has passed through all pollution control devices, i.e. with a stream that is low in particulates. Method 30B is used to test the accuracy of current vapor phase Hg constant emissions monitoring systems (CEMS) and can also be used to test for the compliance of mercury emissions standards. The method requires a minimum of two simultaneous sampling trains. For more information on this method, visit the EPA’s CFR 40 website.

Specifications

  • Sample Pump: KNF Sample Pump, 120 Vac. 115V/60Hz, 9.5 lpm
  • Dry Gas Meter: SK25-UL
  • Timer: Digital LCD with Battery Backup (Displays h, m, s)
  • Umbilical Power Output Connection: Amphenol 3-pin Fused
  • Auxiliary Power Output Connection: 3 pin 120 V Receptacle
  • Sample Inlet Connection: 1/4″ Stainless Steel Quick Connect with Stainless Steel Valves
  • Temperature Controllers: Solid State for Probe, Heated Sample Line, and 6 Channel Selector
  • Thermocouple Connections: K-Type Panel Mount
  • Cabinets: Welded Aluminum
  • Quick-Release: Access Doors
  • External Dimensions (h x w x d): 17.5″ x 12″ x 18.5″
  • Weight: 47 lbs. (21 kg)
  • Method 30B Sampler Train Layout
  • Mercury Sorbent Traps are Available for Purchase.
Weight13.607771 lbs
Dimensions17 × 21 × 15 in
Buy or Rent

Buy, Rent

No additional documents available for this product
