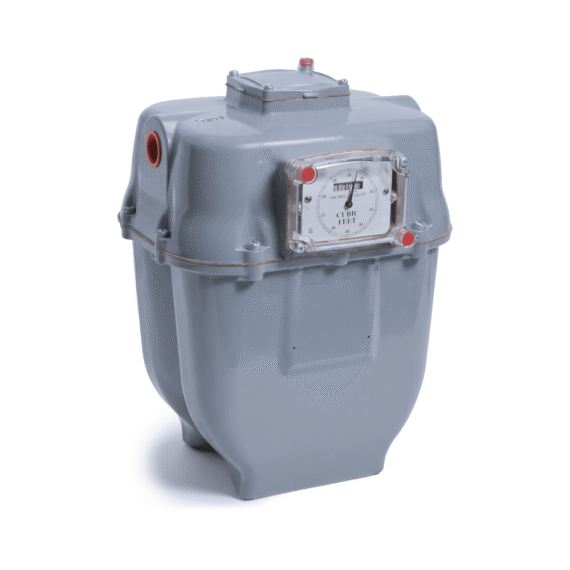

S-275 Dry Gas Meter

S-275 Dry Gas Meter

$664.49$785.37

SKU:
DGM

S-275 Dry Gas Meter

S-275 Dry Gas Meter

The S275 dry gas meters are used in many of today’s consoles. Clean Air Express can also rebuild and calibrate your present meter control console. All Dry Gas Meters are accurate to within plus or minus 1%. For more information on this method, please visit the EPA’s CFR 40 website.  These are NEW Dry Gas Meters and are available in Cubic ft., liter and M3 (meters cubed).

*Temperature rating for all S-275’s is min -30F, maximum 150F (for gas sample being metered).

Part Number
Item
0028D
S-275 Replacement Dry Gas Meter Assembly
0028DM
S-275 Metric Replacement Dry Gas Meter Assembly
9922
S-275 CU. FT./ Rev. Dry Gas Meter
99221
S-275 M3/Rev. Dry Gas Meter
0393
S-275 Liter/Rev. Dry Gas Meter
  • 275 cu. ft./hr. capacity
  • 0.10 cu.ft. per revolution
  • 0.001 cu. ft. resolution
  • Maximum allowable operating pressure – 5-10psi
  • Weight: 14 lbs.
  • Revolutions: 8 ft³
  • Connections: ¾” NPT
  • Capacity (ft³/h)
  • Natural gas, 250
  • Butane, 150
  • Propane, 175
  • Air, 195
