The PSG Plus Cooler MAK 20, also known as the MAK 10-2 Sample Gas Conditioner, is a compact sample gas treatment system used for drying sample gases to exclude condensation in the analyzers. Stable dew points of less than 3°C can be guaranteed even with highly fluctuating volume flows with different humidity contents, eliminating volumetric errors or H2O cross-sensitivity errors due to various analysis methods. Optimized JET heat exchanger system reduces water-soluble gas leaching, improving analysis accuracy.

Available on backorder

The PSG Plus Cooler MAK 20, also known as the MAK 10-2 Sample Gas Conditioner, is a compact sample gas treatment system used for drying sample gases to exclude condensation in the analyzers. Stable dew points of less than 3°C can be guaranteed even with highly fluctuating volume flows with different humidity contents, eliminating volumetric errors or H2O cross-sensitivity errors due to various analysis methods. Optimized JET heat exchanger system reduces water-soluble gas leaching, improving analysis accuracy.

Precise proportional temperature control, hot gas bypass system, corrosion-resistant heat exchangers and hydrophobic surfaces work together in this gas conditioner to achieve low, extremely constant dew points. Monitor dew point and cooling air temperature on-board or remotely. Operating parameters are stored in a logbook for diagnostics, with an operating hour counter to monitor service intervals.

Features

  • Two gas paths
  • Two heat exchangers
  • Two condensate pumps
  • One 3-pole alarm (optional)
  • Optimized jet stream heat exchanger principle
  • Lowest leaching of measurement gases
  • Powerful compressor cooler with 792 KJ / h cooling capacity
  • The heat exchanger can be changed without opening the housing
  • Gas flow 1 x 150 l / h, 2 x 150 l / h or 1 x 250 l / h (by connecting the heat exchangers in series)
  • Long-lasting hot gas bypass system without switching the compressor
  • Corrosion-resistant PVDF heat exchangers
  • Compact design
  • Digital display for temperature, alarms, logbook, operating hour counter and service interval display
  • Potential-free contacts for operational monitoring, alarm and moisture breakthrough
  • JET heat exchanger in BCR sample gas cooler also available for ATEX Zone II
Model
MAK 10 MAK 20 (MAK 10-2) MAK 10-4 MAK10-1-PS1 MAK10-2-PS2
Technical Data
Number of gas paths 1 2 4 1 2
Pre-Separator (PS) 1 2
Operation Data
Gas flow per gas path dew-point at inlet 65°C 125NI/h 2.0lpm 125NI/h 2.0lpm 100NI/h 1.7lpm 150NI/h 2.5lpm 150NI/h 2.5lpm
Gas flow per gas path dew-point at inlet 55°C 175NI/h 2.9lpm 175NI/h 2.9lpm 140NI/h 2.3lpm 200NI/h 3.3lpm 200NI/h 3.3lpm
Gas-temp at inlet max 140 °C
Ambient temperature 5 – 45 °C
Operating Pressure (abs.) 0.5 – 2.0 bar
Gas dew-point at outlet 3.0° C +/- 0.3 ° C
Pressure drop per gas path 5 mbar (V = 125 N I/H)
Dead space per gas path 26 ml
Ready for start up < 5 min. < 10 min. < 15 min < 5 min. < 10 min.
Cooling capacity temp = 45° C 220 W 220 W 300 W 220 W 220 W
Material of gas path
Cooling transfer tube Aluminum
Cooling surface PTFE-Coating
Housing/Sealings PVDF/Viton
Design data
Width 310 mm 310 mm 449 mm 310 mm 449 mm
Height 266 mm 266 mm 266 mm 266 mm 266 mm
Depth 321 mm 321 mm 321 mm 321 mm 321 mm
Weight 16 kg 18 kg 23 kg 17 kg 20 kg
Housing Wall-mount- optional 19″/Rail 7032
Gas connection PVDF DN 4/6
Condensate connection PVDF DN 4/6
Electrical Data
Mains connection Plug
3-pole alarm contact 25 V AC, 2A
Alarm set points < +2°C / +10°C
Housing protection class IP 20 EN 60529 / EN 61010
Power supply 230 V 50/60 Hz (+15%/-15%)
Power consumption max. 170/185 W 170/185 W 170/185 W 170/185 W 170/185 W
Power supply 115 V 50/60 Hz (+10%/-10%)
Power consumption max. 170/195 W 170/195 W 170/195 W 170/195 W 170/195 W
Part Number Item
07101FSC MAK 10 Fan Speed Controller
07102TF Replacement Filter for MAK 10
07102RT / 9774RT Peristaltic Pump Tubing with Compression or Barbed/Push-On Fittings
8775 Thomas SR-25 Series Peristaltic Pump
Documents Tab User Manual Icon Manufacturer User Manual PDF
Manufacturer MAK 10 Family Brochure PDF

Related Products

PSG MAK Process BCR01 Gas Conditioner
Select options This product has multiple variants. The options may be chosen on the product page

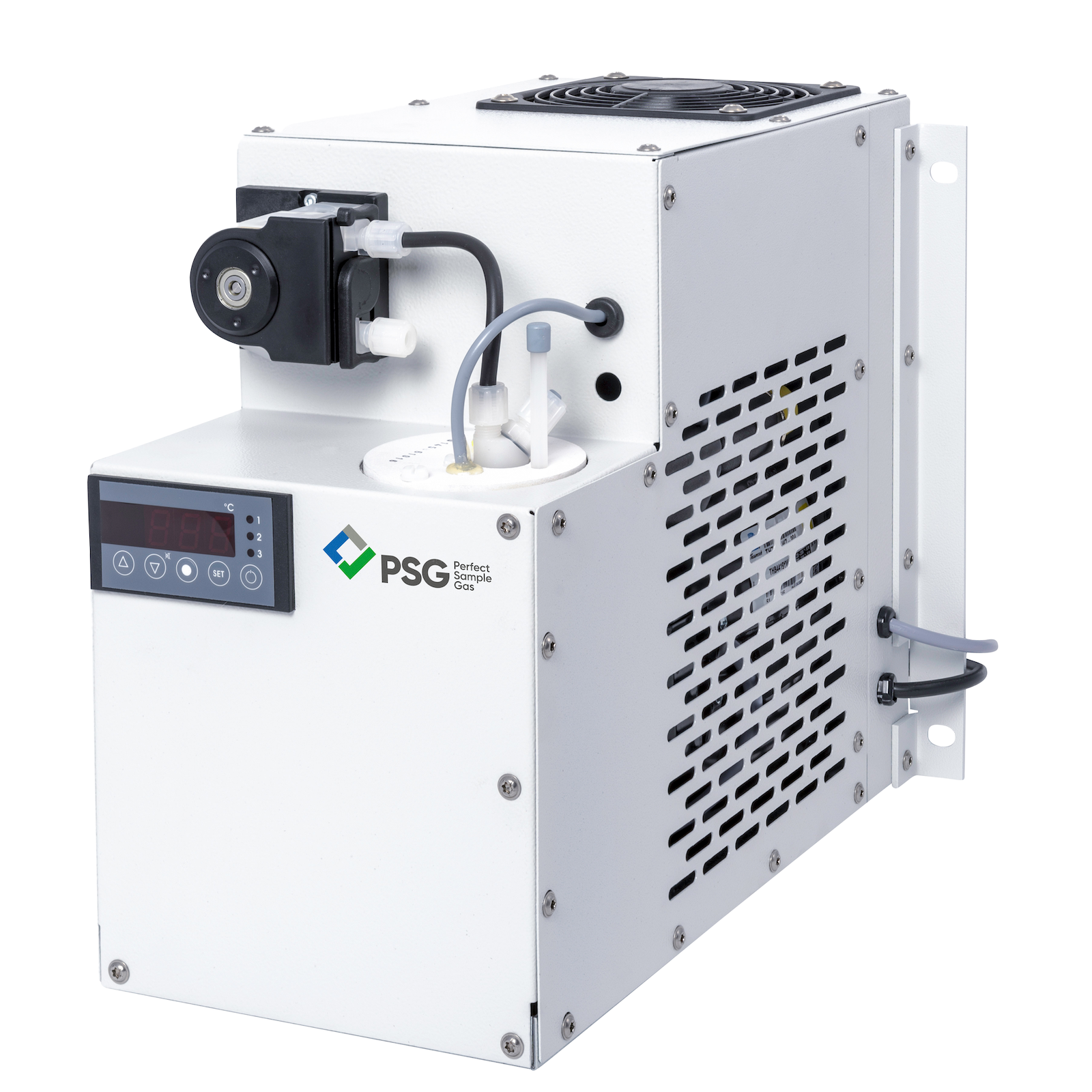

PSG Process Cooler BCR01
