Method 5 Umbilical Tester

Method 5 Umbilical Tester

$600.00

SKU:
0360UT
Share:

Method 5 Umbilical Tester

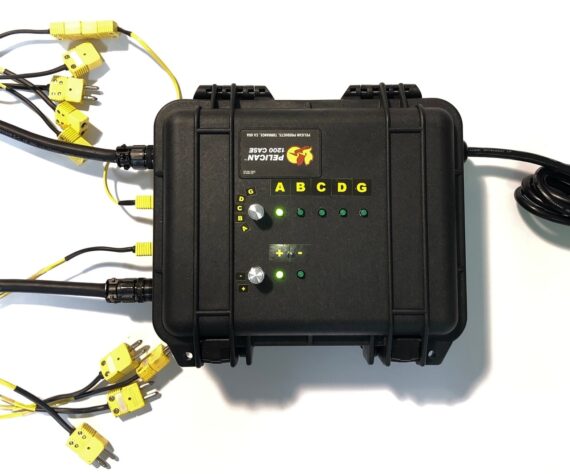

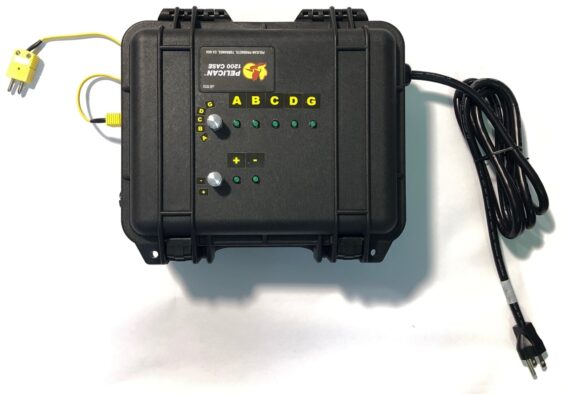

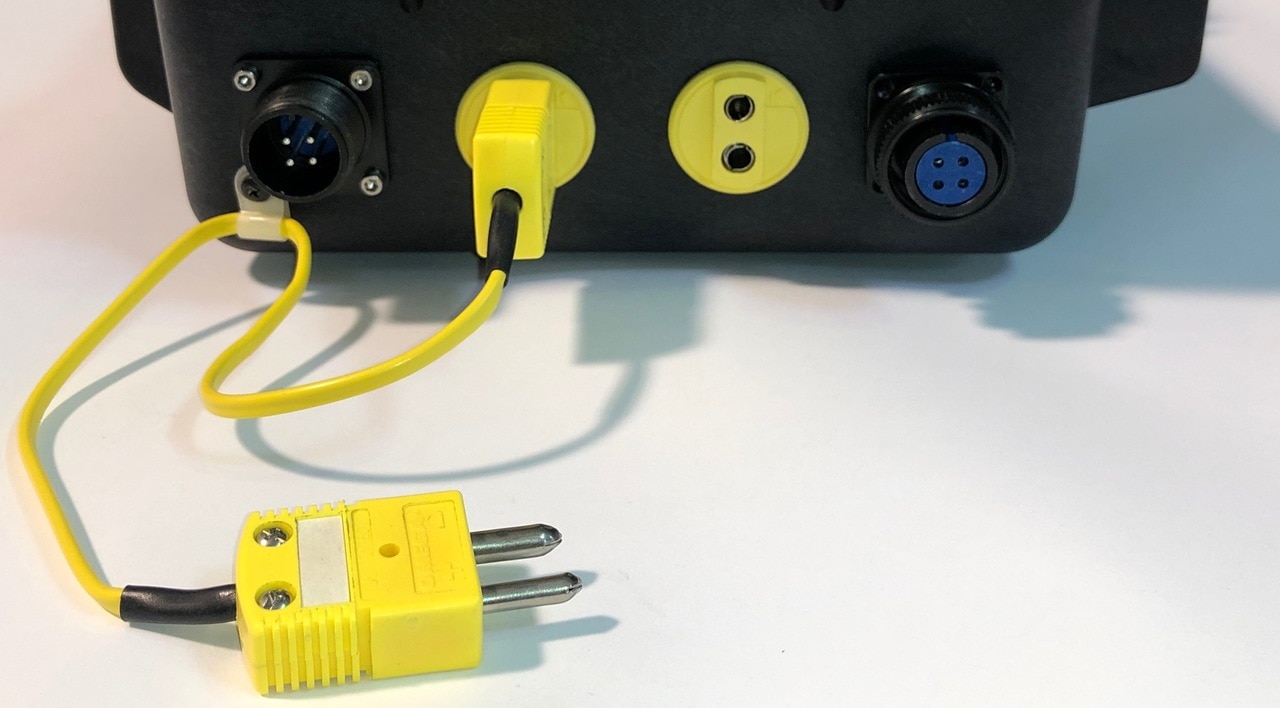

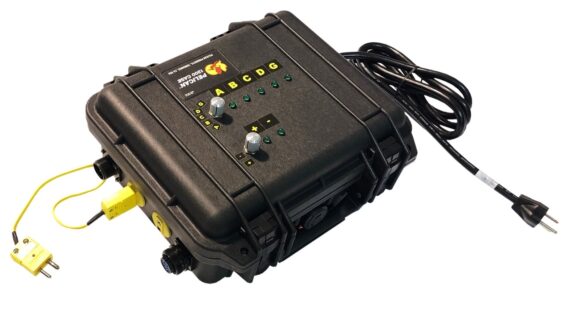

Method 5 Umbilical TesterThe Method 5 Umbilical Tester checks the continuity between the 4 pin amphenol and the male/female thermocouples to ensure proper wiring.  The rotary switch allows the user to isolate each pin to verify that the contact is connected to the correct pin.  The 4 pin amhenol checks continuity between pin A, B, C, D and grounding of the shell.
Part Number
0360UT – Method 5 Umbilical Tester

Umbilical Tester Purpose

  • Testing Continuity between 4 pin Amphenols/Thermocouples
  • Ability to Isolate each pin individually
  • Ensure Proper Grounding
Weight1.360777 lbs
Dimensions19 × 17 × 2 in

No additional documents available for this product
