ADI J-Series Single Head Diaphragm Sampling Pump

ADI J-Series Single Head Diaphragm Sampling Pump

$885.00

SKU:
99374UK
Share:

ADI J-Series Single Head Diaphragm Sampling Pump

ADI J-Series Single Head Diaphragm Sampling Pump

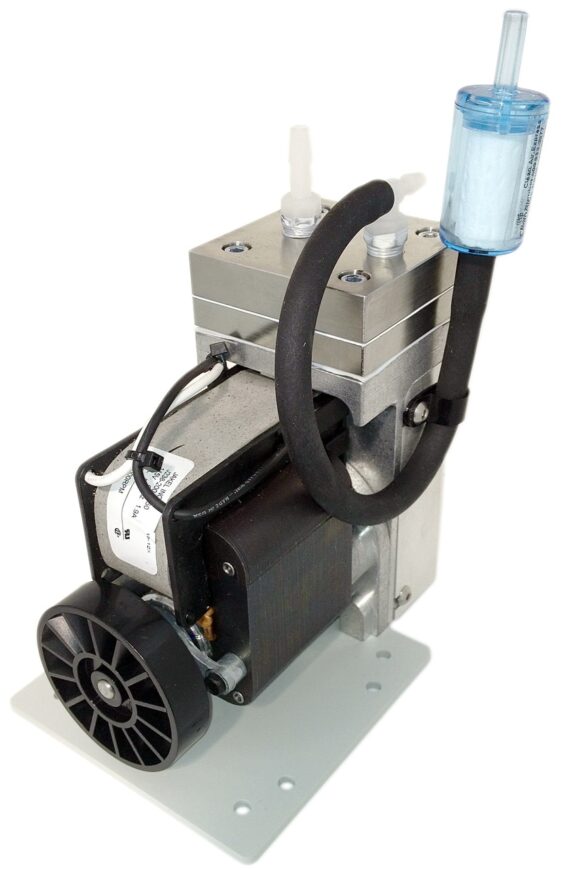

ADI J-Series single heated head diaphragm sampling pump is a general purpose motor that can be used in almost any application. The sampling pump is constructed of 316 ss wetted parts and a 2 ply PTFE ® diaphragm. The PTFE ® diaphragm allows the pump’s diaphragm to have a longer lifetime than the PTFE ® / EPDM diaphragm. For proper pump performance, 2 sheets of PTFE ® material are required to make up one replacement diaphragm.

Model
PSIG (Max P)
Bar (Max P)
In Hg (Ultimate Vacuum)
Mbar (Ultimate Vacuum)
J
31.1
2.14
24.4
826
CFM (Max Flow)
LPM (Max Flow)
Voltage
Diaphragm
Part Number
0.49
14.0
120 Vac
TFE
99374UK
Part Number
Item
99374UK
ADI J series Dia-Vac Pump, 316ss welded parts, TFE Coated Diaphragm, 14 LPM, 24.4″Hg, 120Vac.
Weight2.267962 lbs
Dimensions9 × 9 × 9 in
