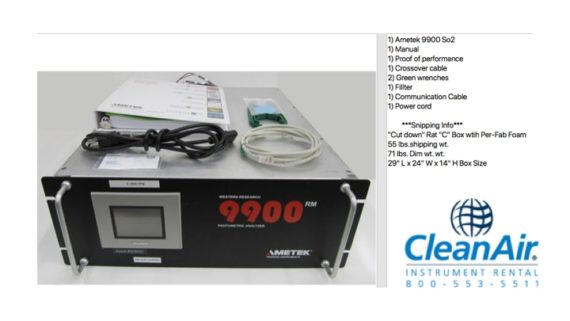

Ametek Model 9900RM SO2 Analyzer

Ametek Model 9900RM SO2 Analyzer

$0.00

SKU:
Ametek 9900RM

Ametek Model 9900RM SO2 Analyzer

Ametek Model 9900RM SO2 Analyzer

The Ametek 9900RM SO2 analyzer utilizes a UV detector to measure levels of SO2. A single or multi-component gas analyzer, the 9900 operates as a standalone device or can be integrated into a Continuous Emission Monitoring (CEM) system. Available in a 19″ rack mount (RM) it can be configured to measure most gas species that absorb in the ultraviolet (UV) range. Up to five components can be measured simultaneously, making the 9900 highly economical for multi-component gas analysis applications. Free of interference from water and CO2, the 9900 uses AMETEK’s proprietary high-resolution UV technology in a dual-beam, multiple-wavelength configuration, supported by powerful data processing.

The 9900RM has replaced the 9000RM.



Call CleanAir for repair or service of your instrument today. In-Stock parts with three technical service centers nationwide—Chicago, Pittsburgh and Houston. Contact us today!
Part Number
Ametek Model 9900RM SO2 Analyzer

Ametek Model 9900RM Specifications:

  • Weight: 40 lbs.
  • Dimensions: 23.7” x 19” x 7”
  • Rackmount: 19″
  • Power: 120VAC (105VAC – 132VAC) 47 to 63 Hz
  • Outputs: Configurable – 4 – 20mA 0-5V, Analog – 0 – 20mA
  • Detection Method: Ultraviolet – Photometric
  • Range: 50 – 5,000ppm
  • Response Time: <30 sec. to 90% full scale
  • Accuracy: <1% of full scale. – Gas Flow Rate: 0.25 – 5 L/min
  • Drift: 2% full scale/24 hours
  • Operating Temperature: -41oF – 122oF
  • Linearity: + 1% of full scale
  • Cell Construction: 316 stainless steel with quartz windows.

9000RM Spec Sheet (Previous Model)

CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project.

CleanAir Engineering offers full-service calibration or repair for this item. To learn more, contact a technician today at: 1-800-553-5511. Or, complete our repair request form to begin your service request today! Your out-of-calibration or out-of-service instrument can be shipped to any one of our four technical service centers, in Chicago, Houston, Pittsburgh, and Marseille, France.
