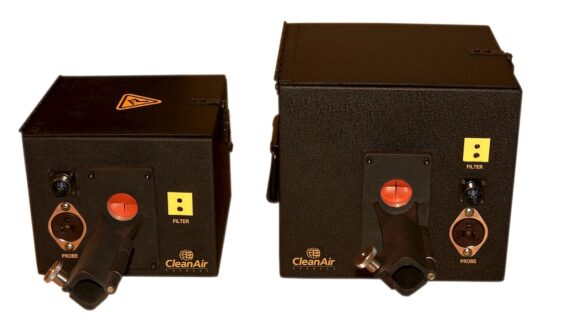

Large Cateco Heated Filter Unit

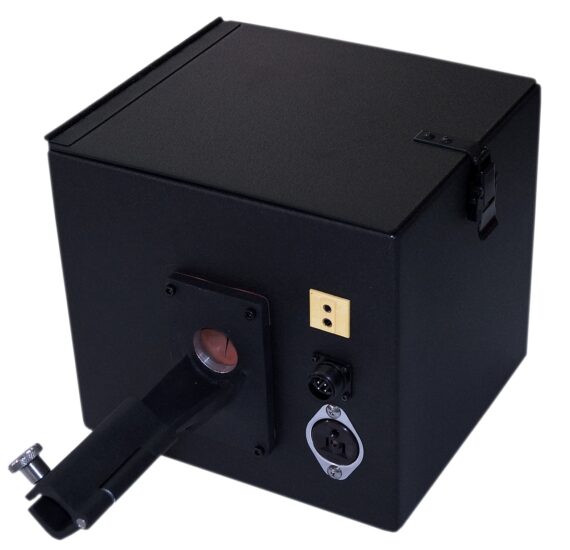

Large Cateco Heated Filter UnitThe double-wall aluminum constructed heated filter unit is an excellent alternative to the much larger Modular Sample Unit. It is ideally suited for applications that require vertical sampling. The case is extremely lightweight and durable, and heats quickly with its small heating area. The probe is mounted through an aluminum arm identical to those used on the Modular Sample Unit. Electrical connections are compatible with those used in the industry. It is designed for use with Clean Air Express stainless steel or glass filter holders. For more information on this method, please visit the EPA’s CFR 40 website.
Part Number
120V Large Cateco Heated Filter Unit
240V Large Cateco Heated Filter Unit

Large Cateco Heated Filter Unit Specifications:

  • Voltage Requirement: 120 V / 240V
  • Power Requirement: 450 W
  • Umbilical Power Input Connection: Amphenol 4-pin

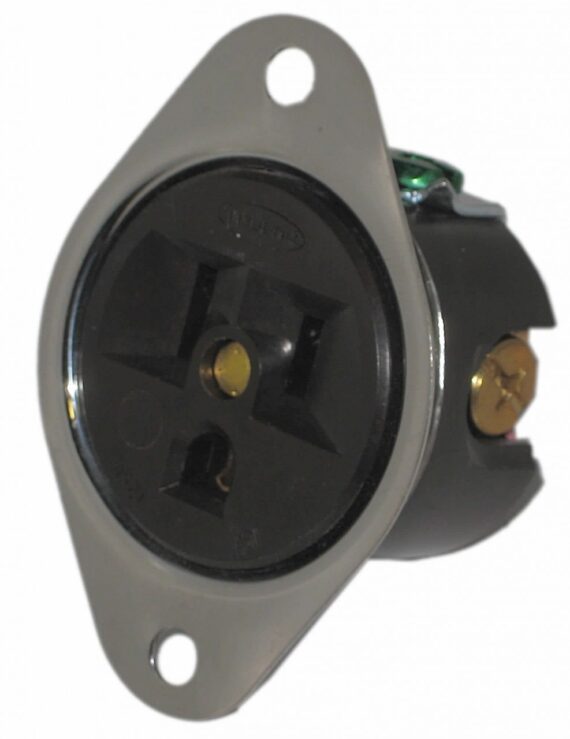

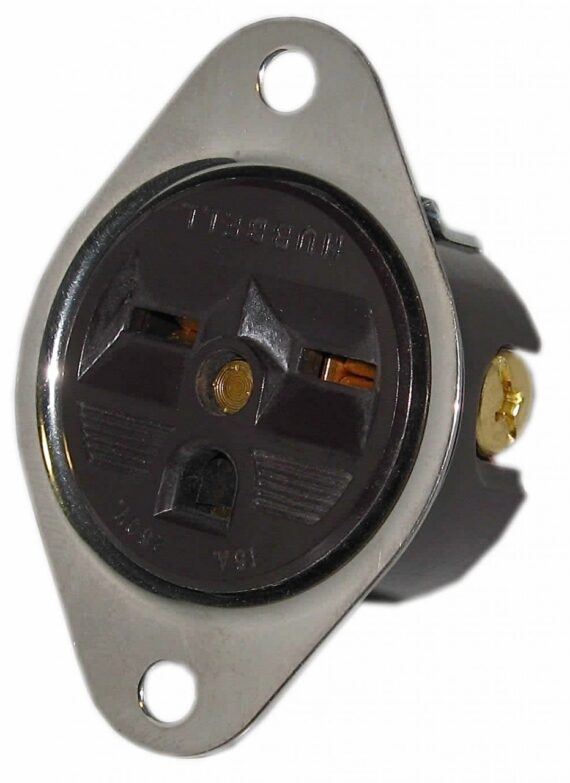

  • Probe Power Output Connection: 3 pin 120 V receptacle
  • Thermal Couple Connection: K-Type panel mount
  • External Dimensions (h x w x d): 9.5″ x 10.5″ x 9.5″

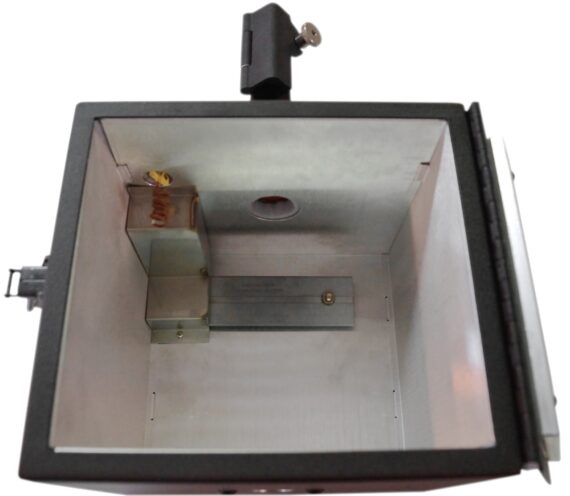

  • Internal Dimensions (h x w x d): 8.25″ x 9.25″ x 8.75″
  • Weight: ~11 lbs. (4.9 kg)

Large Cateco Heated Filter Unit Features:

  • Includes handle for extra support
  • Allows for safe sampling of horizontal ducts (vertical probe orientation).
  • Double wall aluminum construction is durable, yet light weight for ease of handling in the field.
  • Insulation maintains heat for reduced power consumption and reduces the potential for delays from blown breakers.

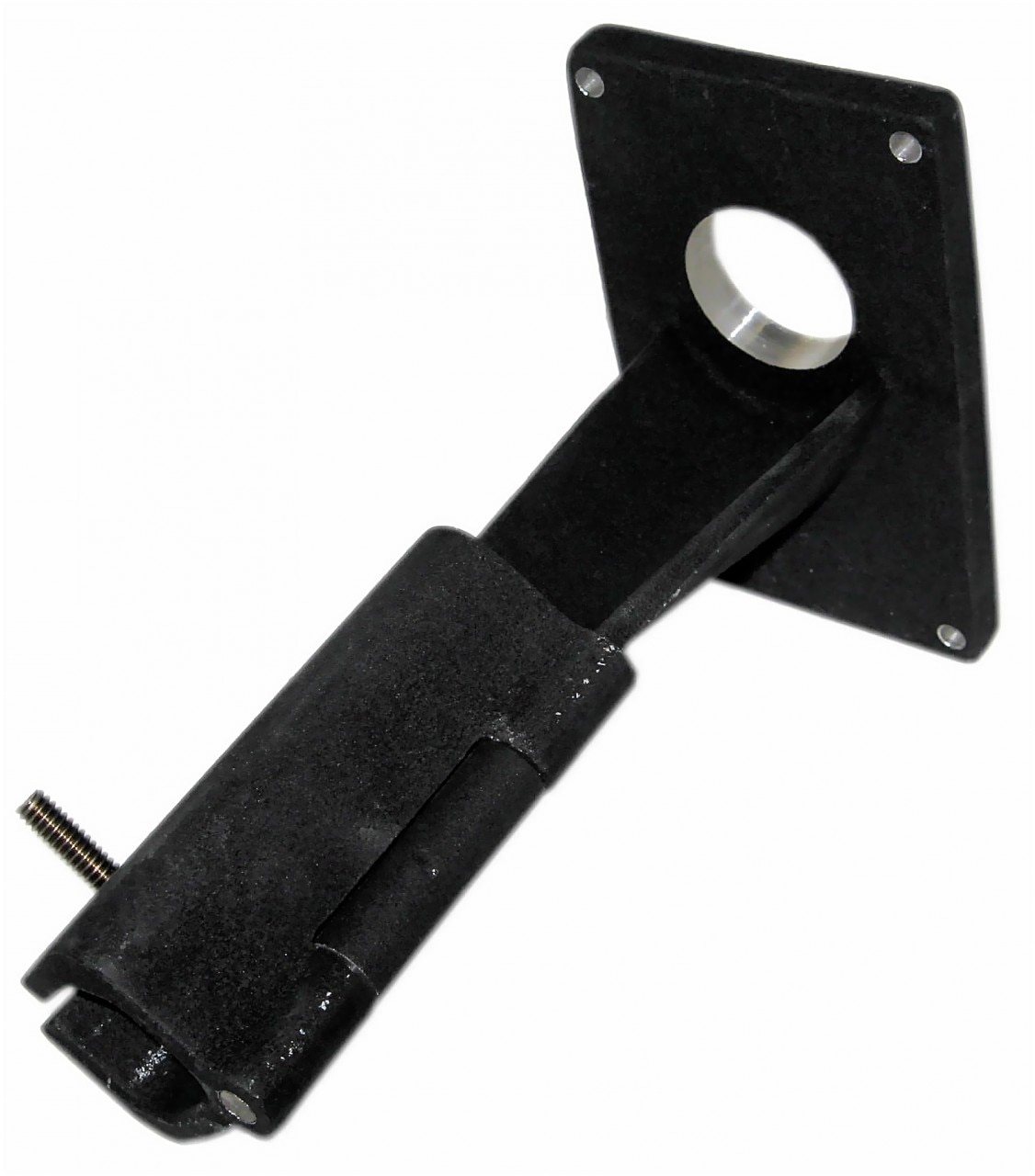

  • Two-piece cast aluminum probe support arm holds the probe securely in place and maintains a solid connection with filter assembly during port changes.
  • Panel mounting of Type K Thermocouple connection eliminates potential fraying and damage associated with un-mounted thermocouple connections.

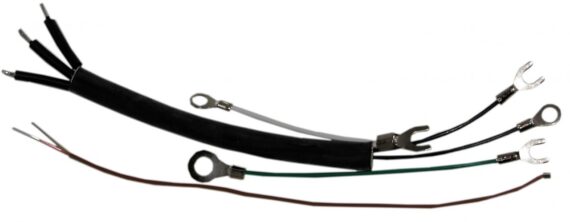

  • All wiring is gaurded with stainless steel to eliminate electrical shock hazards to technicians and delays related to accidents.

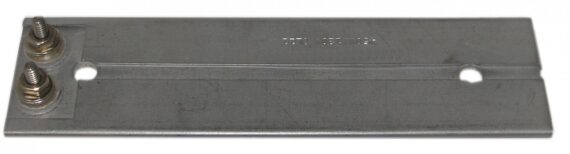

  • 450 Watt Heater (5 Minute Heating time from Ambient to 250°F in a controlled environment)
