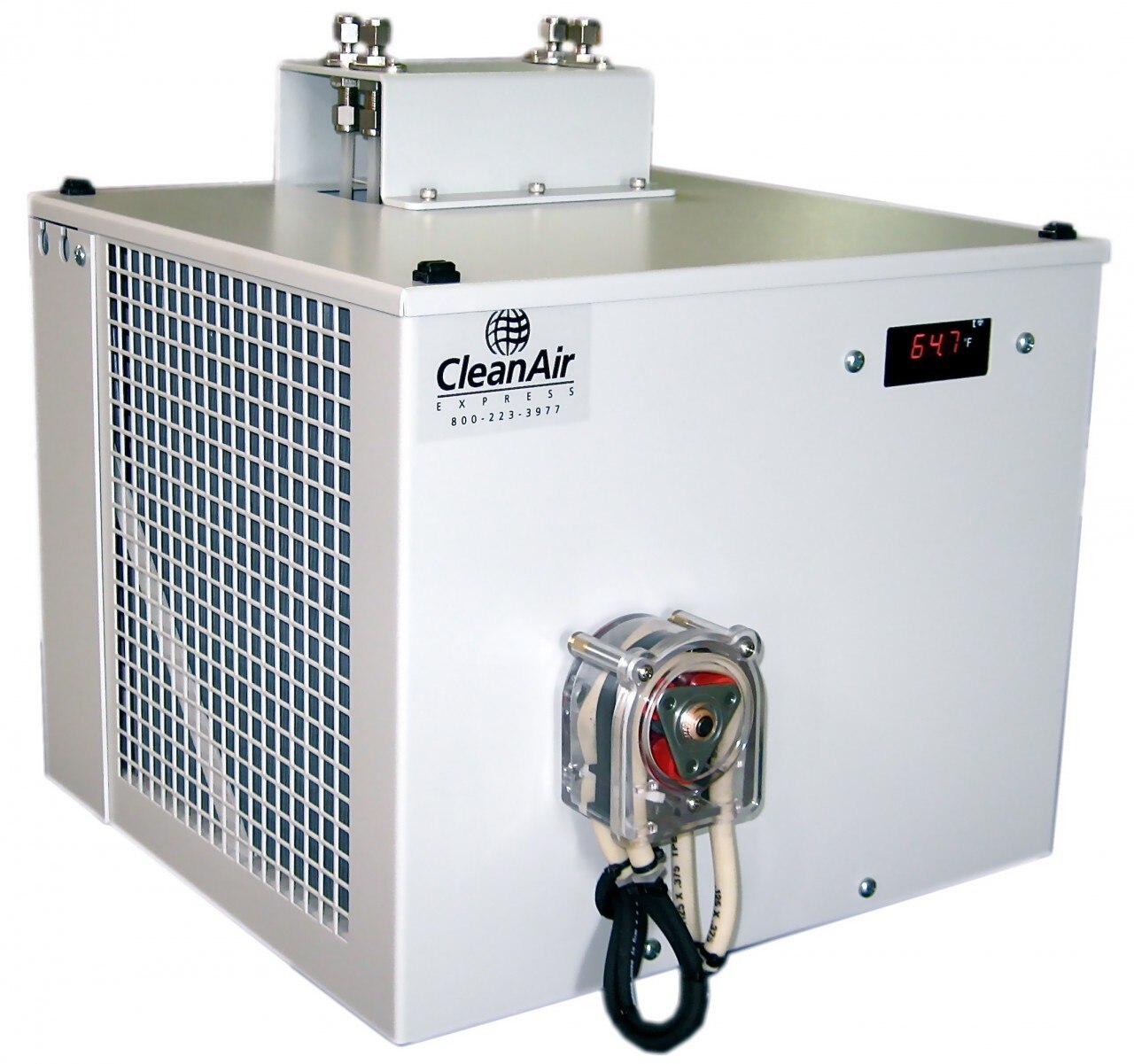

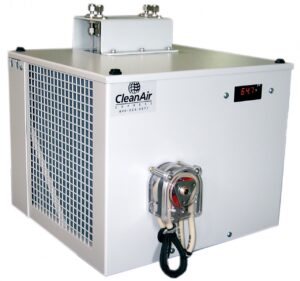

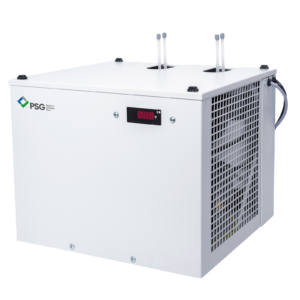

PSG MAK VIA 6-2 Sample Gas Conditioner

PSG MAK VIA 6-2 Sample Gas Conditioner

$6,489.00$7,088.00

CLEANAIR-EXCLUSIVE PRODUCT

The PSG MAK VIA 6-2 Sample Gas Conditioner is an essential part of any extractive gas analyzer system. This unit will continuously dehumidify a sample stream and rapidly separate the condensable liquids from the gas. The MAK VIA 6-2 is ideal for use with SO2, NOX, CO, CO2, or O2 monitors.

For rental options, please contact us.

The PSG MAK VIA 6-2 Sample Gas Conditioner is an essential part of any extractive gas analyzer system. This unit will continuously dehumidify a sample stream and rapidly separate the condensable liquids from the gas. The MAK VIA 6-2 is ideal for use with SO2, NOX, CO, CO2, or O2 monitors.

For rental options, please contact us.

The cooling system consists of a CFC-free compressor/chiller that operates at over 150% excess capacity. This allows the MAK to compensate for wide variations in input temperature and guarantees a constant dew point at the outlet. Additional features include: low maintenance, corrosion-resistant Kynar® sample tubing and digital cooling temperature display. Sample pump and condensate pump not included. Formerly known as VIA MAK.

Specifications

  • Conditioner Cooling Capacity: 410 BTU/hr (433 kJ)
  • Number of Gas Paths: 2
  • Path Material: PVDF (standard), Stainless Steel (optional), Glass (optional)
  • Inlet Temperature: PVDF: 284 °F (140 °C), SS & Glass: 356 °F (180 °C)
  • Gas Path Volume: 8.4 in3 (137 cm3)
  • Ambient Temperature: 41 °F to 113 °F (5 °C-45 °C)
  • Sample Contact Surfaces: PVDF, 316 SS, PTFE
  • H x W x D: 11.5″ x 14.25″ x 13.50″
  • Weight: Appx. 66 lb.
  • Electrical: 3.18A @ 115V 50/60Hz
Part Number Description
0715 MAK VIA 6-2 Sample Gas Conditioner
0715ASSY MAK VIA 6-2 with Stand, Side-Mounted Peristaltic Pump and Gas Path Bracket
PSG-MAKVIA62-RENTAL MAK VIA 6-2 with Stand, Top-Mounted Peristaltic Pump
Documents Tab User Manual Icon User Manual PDF

CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project.

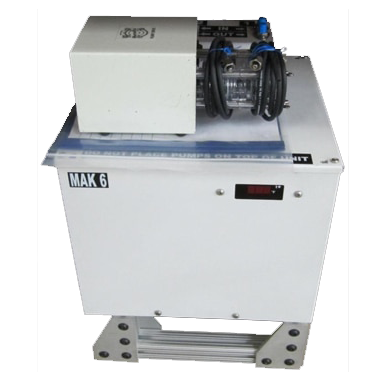

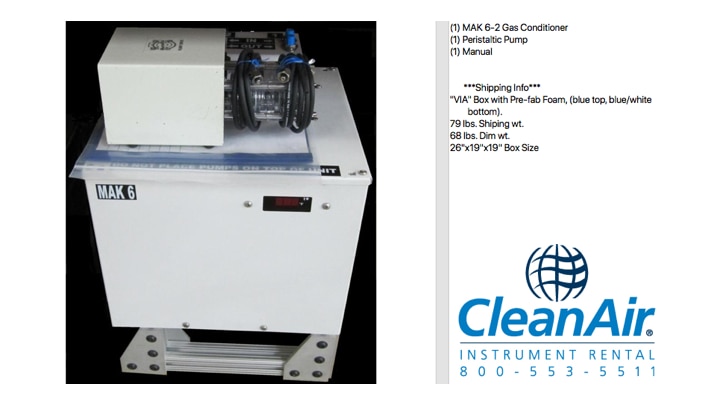

PSG AGT MAK VIA 6-2 Rental Description

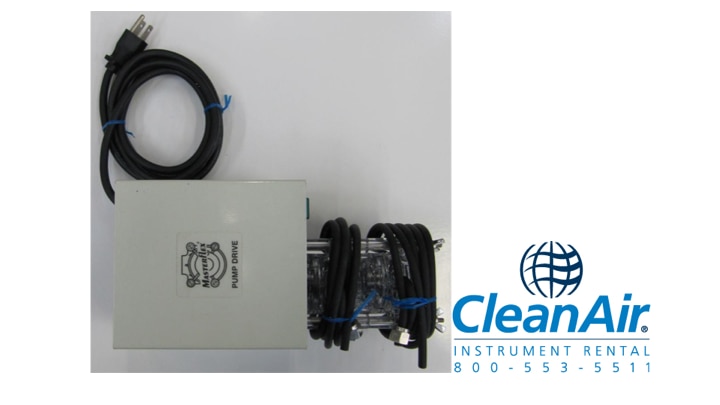

PSG AGT MAK VIA 6-2 Rental Peristaltic Pump
