Method 202 47mm Filter Holder Assembly

Method 202 47mm Filter Holder Assembly

$8.00$342.16

Clear

SKU:
0561202_
Share:

47mm Filter Holder Assembly

47mm Filter Holder Assembly

Method 202 is used to measure the levels of condensable particulate matter (CPM) from a stationary source of emission. It is often used in series with test methods that measure filterable particulate matter (FPM), such as method 5, 17, or 201A. These methods remove the FPM before the sample reaches the method 202 train, where it is then collected in the dry impingers and on the out-of-stack CPM filter. There are specific material and operational requirements that need to be met when performing method 202 testing, therefore it is important to consult the EPA method found at 40 CFR Part 51 prior to testing.
47 mm  Filter Holder Assembly
Part Number
Item
0561202
47 mm Filter Holder Assembly
0561I

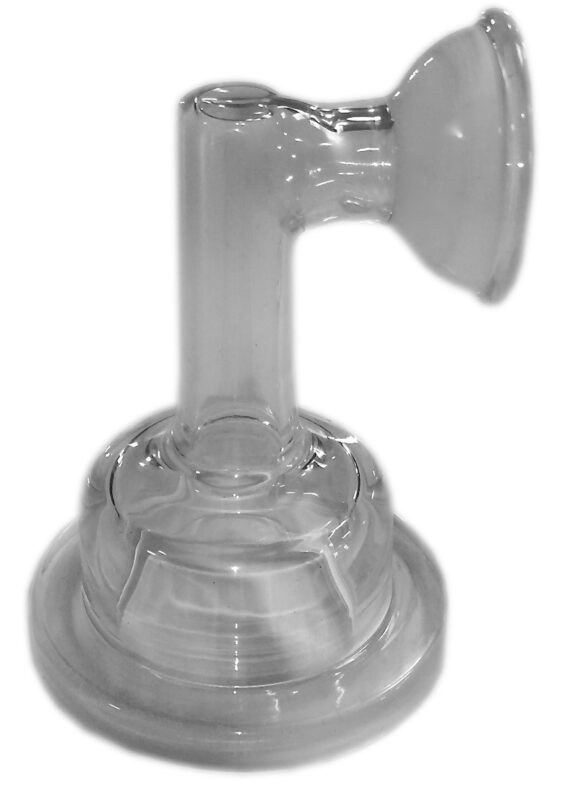

47 mm  Filter Inlet Pyrex 90 Degree 28/12 Socket for Method 202
0561O

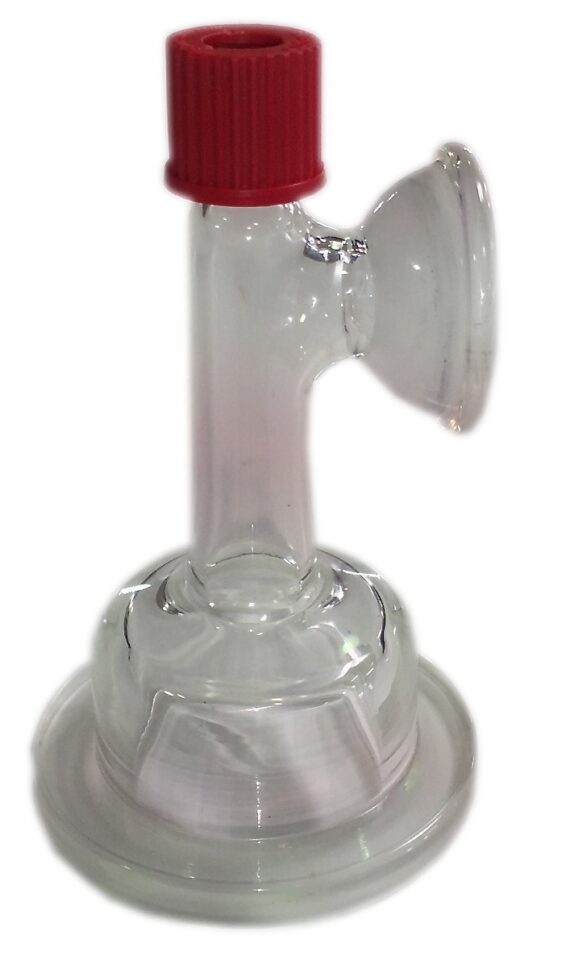

47 mm  Filter Outlet Pyrex 90 Degree 28/12 Socket for Method 202 with Thermowell

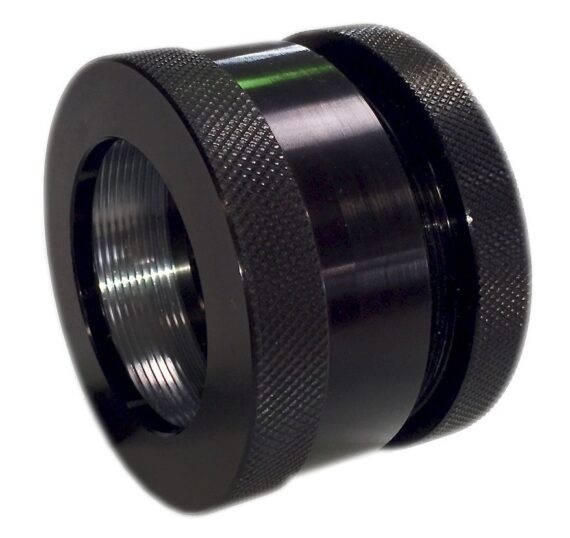

0561CR47 mm Aluminum Clamp Ring Assembly
0561TF

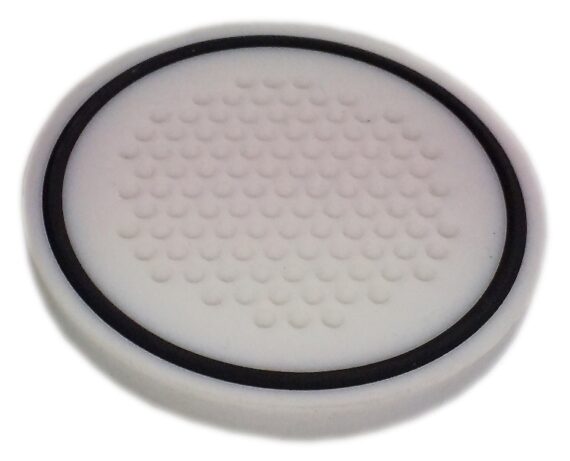

2″ PTFT Frit for 47 mm Filter Holder for Method 202
0509202C

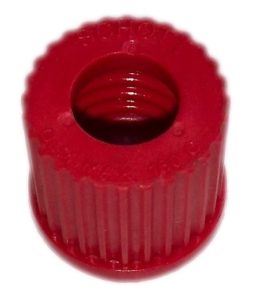

Thermocouple Screw Cap
0509202SR
Thermocouple Silicone Seal Ring
Weight1.360777 lbs
Dimensions10 × 16 × 0.5 in
Filter Holder

0509202C- Thermocouple Screw Cap, 0509202SR- Thermocouple Silicone Seal Ring, 0561202- 47 mm Filter Holder Assembly, 0561CR- 47 mm Aluminum Clamp Ring, 0561I- 47 mm Filter Inlet Pyrex 90 Degree 28/12 Socket for Method 202, 0561O- 47 mm Filter Outlet Pyrex 90 Degree 28/12 Socket for Method 202 with Thermowell, 0561TF- 2" Teflon Frit for 47 mm Filter Holder for Method 202

No additional documents available for this product
