CleanAir VOST Control Console (Pre-Owned)

CleanAir VOST Control Console (Pre-Owned)

Original price was: $3,889.60.Current price is: $2,750.00.

USED ITEM

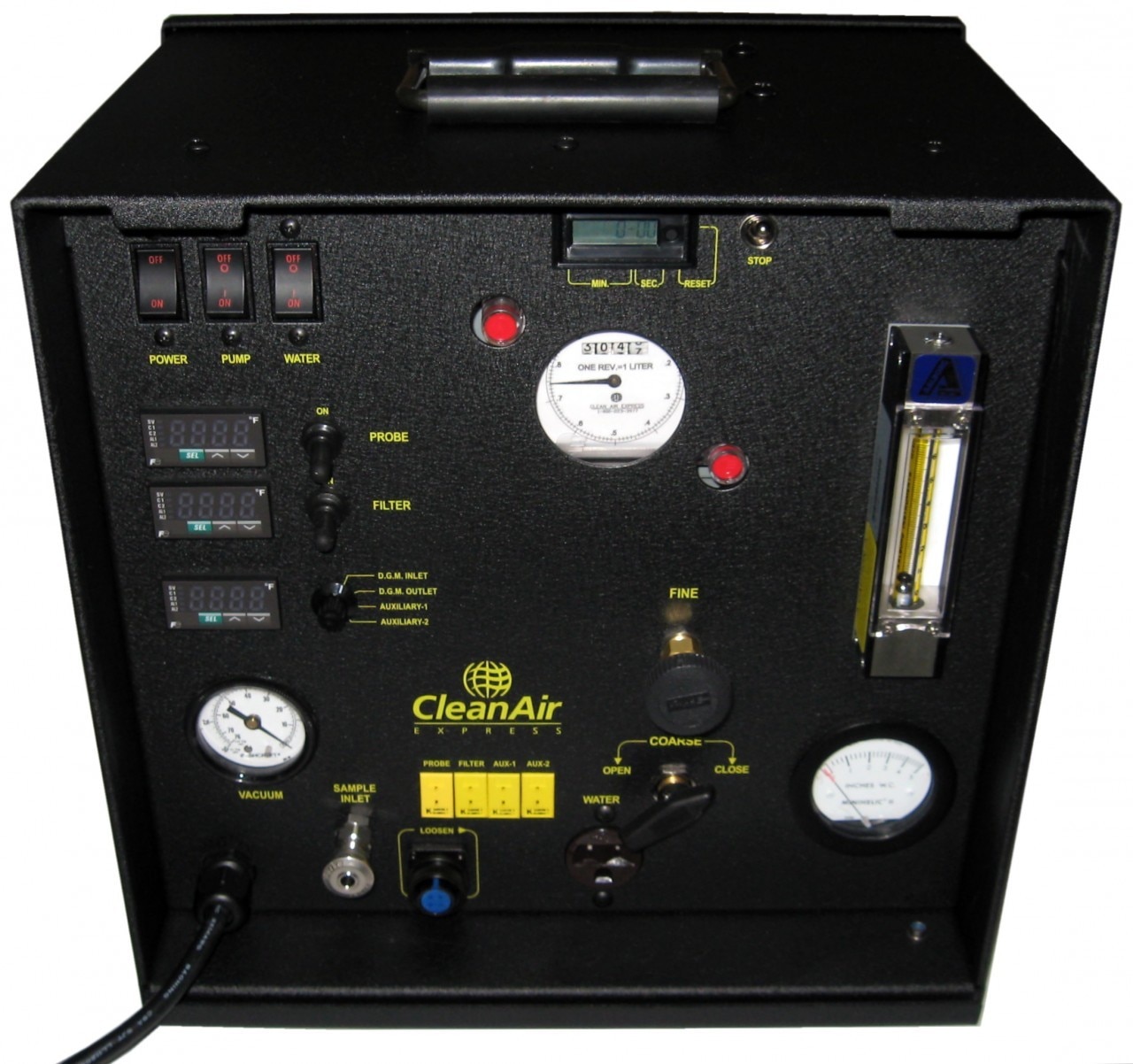

The Model 80 Control Console is a compact unit designed to perform EPA methods 6, 6a, 6b, 15, 18, 26 and VOST. This unit is suitable for use with any low flow sampling method that requires accurate volume measurement. This rugged lightweight console features built in digital temperature control and indication, vacuum and pressure gauges, dual float rotometer, stainless steel fine and coarse valves and internal diaphragm vacuum pump. For more information on this method, please visit the EPA’s CFR 40 website.

SKU:
0080-U71

Pre-Owned Method 6 Vost Control Console

Specifications

  • Sample Pump: Internal Diaphragm Vacuum Pump
  • Dry Gas Meter: S-275 L/rev.
  • Rotometer: Dual Float Glass – 1.24 lpm and 2.54 lpm
  • Timer: Digital LCD with Battery Backup (Displays h,m,,s)
  • Umbilical Power Input Connection: Amphenol 4-pin
  • Auxiliary Power Output Connection: 3 pin 120 V receptacle
  • Circuit Protection: Panel Mounted Circuit Breaker Switches
  • Sample Inlet Connection: 1/4″ Stainless Steel Quick-Connects
  • Temperature Controllers: Solid State for Probe & Filter
  • Temperature Monitor: LED readout with Four-Position Switch
  • Thermal Couple Connection: K-Type Miniature Panel Mount
  • Cabinet: 0.095″ Welded Aluminum with Quick-Release Access Doors
  • External Dimensions (h x w x d): 14″ x 14″ x 11″ (356 mm x 356 mm x 279 mm)
  • Weight: 30 lbs. (13.6 kg)
  • No Warranty; Sold As-Is

Serviced and Full Test Calibrated

The Model 80 Control Console is a compact unit designed to perform EPA methods 6, 6a, 6b, 15, 18, 26 and VOST. This unit is suitable for use with any low flow sampling method that requires accurate volume measurement. This rugged lightweight console features built in digital temperature control and indication, vacuum and pressure gauges, dual float rotometer, stainless steel fine and coarse valves and internal diaphragm vacuum pump. For more information on this method, please visit the EPA’s CFR 40 website.
Part Number
0080-U71
