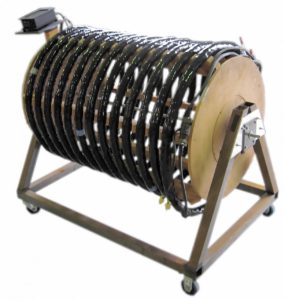

CleanAir Heated Sample Line

CleanAir Heated Sample Line

$1,070.00$5,244.00

Each CleanAir Engineering Heated Sample Line features an electrically heat-traced and insulated 3/8″ PTFE (.030 Wall) sample line with a stainless steel over-braid and stainless steel tube ends, a 1/4 PTFE (.040 wall) calibration line, 3-pin Amphenol power connector, and two type-K thermocouple plugs. Protected by a durable scuff-resistant, extruded polyurethane jacket. Also available to rent.

Clear

Each CleanAir Engineering Heated Sample Line features an electrically heat-traced and insulated 3/8″ PTFE (.030 Wall) sample line with a stainless steel over-braid and stainless steel tube ends, a 1/4 PTFE (.040 wall) calibration line, 3-pin Amphenol power connector, and two type-K thermocouple plugs. Protected by a durable scuff-resistant, extruded polyurethane jacket. Also available to rent.

Heated Sample Lines are not self-limiting; a temperature controller is required. Sold separately.

Custom lengths, voltage, and configurations available.

Part NumberVoltsWattsLength (Ft.) / DescriptionAmps
0723-1012030010′ Heated Sample Line2.73
0723-2512075025′ Heated Sample Line6.82
0723-50120150050′ Heated Sample Line13.64
0723-1001202500100′ Heated Sample Line22.73
*0723-100HD1203000100′ Heavy Duty Heated Sample Line*27
0723-100220120/240100′ Dual Voltage Heated Sample Line
0725RENTCleanAir HSL Universal Temperature Controller
0725RCleanAir Rack-Mount HSL Universal Temperature Controller
0725—PEHeated Sample Line Power Extension

* Heavy Duty Heated Sample Lines are manufactured for a continuous operating temperature of 400°F (~204°C) at -20°F ambient temperature.



Features

  • Lower resistance heaters require less power to heat lines.
  • A backup type-K thermocouple to prevent project delays in the case of primary thermocouple failure in the field.
  • Stainless steel over-braid and stainless steel tube ends help prevent abrasive failure in the field.
  • Optional: stainless steel over-braid for calibration line
  • Durable, extruded polyurethane jacket for protection of sample/calibration lines from abrasive failure in the field.
  • Inert PTFE sample and calibration lines provide more accurate results by eliminating potential bias from other materials. PTFE is also more corrosion-resistant than Tygon, and can be washed with acetone without degradation.

Temperature Ratings

Heavy Duty (HD) Heated Sample Lines are manufactured to have a continuous operating temperature of 400° F (~204° C) at an ambient temperature of -20° F. Triple-Insulated to help maintain line temperature with lower power consumption.

Standard Heated Sample Lines are manufactured to have a continuous operating temperature of 400° F (~204° C) at an ambient temperature of 0° F.

Heated Sample Lines are Used With:

Weight11.339809 lbs
Dimensions81.28 × 81.28 × 35.56 in
Voltage

120 volt, 240 Volt

Length

10 Ft., 25 Ft., 50 Ft., 100 Ft., 100 Ft. Heavy Duty

Temperature Controller with Adapter

Included, Not Included
