Method 201A Cyclone Package

Method 201A Cyclone Package

$2.35$5,588.00

Clear

Method 201A Cyclone Package

The PM 10/2.5 equipment is available in 2 different materials – 304SS or Inconel alloy 600. Both types are limited in temperature by the type of rings used to around 600F. If you need to test in higher temperatures, you can use the “ringless” version which does not have any seal rings or threads, is made from 304SS, and can be used up to around 1250F. Depending on the nozzles used, a 4″ to 6″ port is needed for the PM10 head.



Method 201A PM10 Cyclone Package

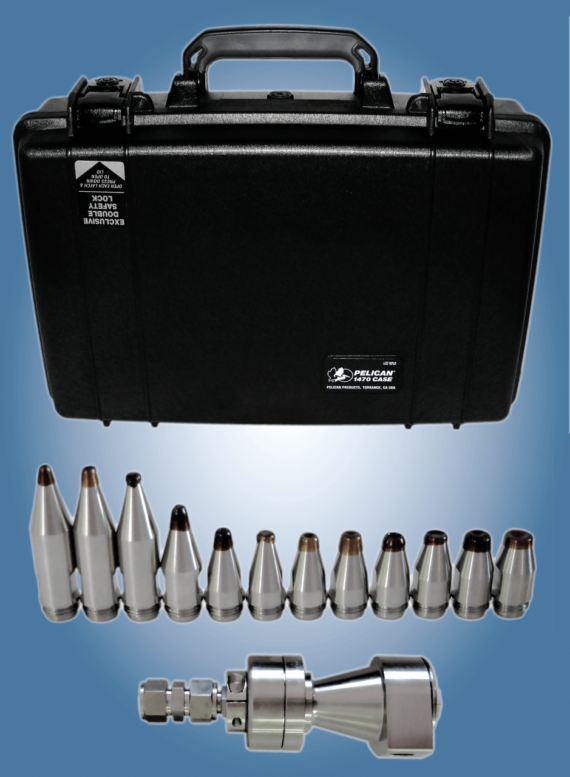

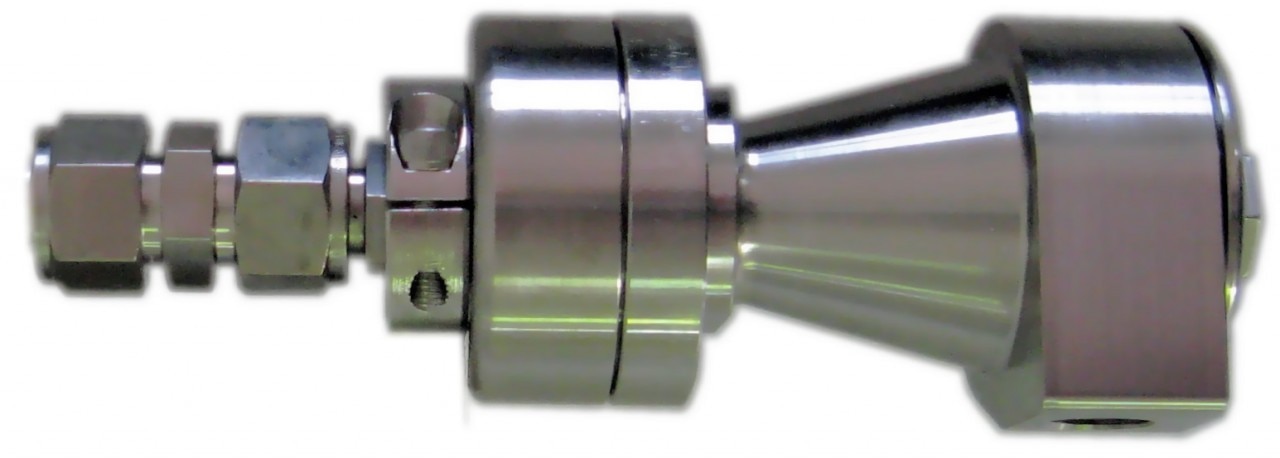

Method 201A PM10 Cyclone PackageThe PM10 cyclone is built to meet EPA specifications for method 201A testing, and is designed for in-stack measurement of particulate matter equal to or less than 10µm. Designed by experienced field testers, its heavy-duty construction can sustain rigorous use. For greater adaptability with various stack sampling equipment, the shank locks down with any 5/8″ compression fitting. The PM10 cyclone kit includes: PM10 cyclone, twelve (12) nozzles, 47mm filter holder, flat wrenches and anti-seize lubricant; all encased in a lifetime warranty shipping case. Depending on the nozzles used, a 4″ to 6″ port is needed for the PM10 head. For more information on this method, please visit the EPA’s CFR 40 website.



Part Number
Item
0040-K
PM10 Cyclone Package
0040
PM10 Cyclone
0040-NS
Isokinetic Nozzle Set (12)
47 mm Stainless Steel Filter Holder (Sold Separately)
47 mm (100ct.) Glass Filters (Sold Separately)
47 mm (100ct.) Quartz Filters (Sold Separately)
Part Number
Item
00400
PM 10 Nozzle Size #0 S.S. .125″
00401
PM 10 Nozzle Size #1 S.S. .136″
00402
PM 10 Nozzle Size #2 S.S. .150″
00403
PM 10 Nozzle Size #3 S.S. .164″
00404
PM 10 Nozzle Size #4 S.S. .180″
00405
PM 10 Nozzle Size #5 S.S. .197″
00406
PM 10 Nozzle Size #6 S.S. .215″
00407
PM 10 Nozzle Size #7 S.S. .233″
00408
PM 10 Nozzle Size #8 S.S. .264″
00409
PM 10 Nozzle Size #9 S.S. .300″
00410
PM 10 Nozzle Size #10 S.S. .342″
00411
PM 10 Nozzle Size #11 S.S. .390″

Method 201A PM2.5 Cyclone Package

Method 201A PM2.5 Cyclone PackageThe PM2.5 cyclone is built to meet EPA specifications for method 201A testing, and is designed for in-stack measurement of particulate matter equal to or less than 2.5 µm. Designed by experienced field testers, its heavy-duty construction can sustain rigorous use. For greater adaptability with various stack sampling equipment, the shank locks down with any 5/8″ compression fitting. The PM2.5 cyclone kit includes: PM2.5 cyclone, twelve (12) nozzles, flat wrenches and anti-seize lubricant; all encased in a lifetime warranty shipping case. For more information on this method, please visit the EPA’s CFR 40 website.



Part Number
Item
00402.5-K
PM2.5 Cyclone Package
00402.5
PM2.5 Cyclone
00402.5-NS
Isokinetic Nozzle Set (12)
47 mm Stainless Steel Filter Holder (Sold Separately)
47 mm (100ct.) Glass Filters (Sold Separately)
47 mm (100ct.) Quartz Filters (Sold Separately)
Part Number
Item
00421
PM 2.5 Nozzle Size #1 S.S. .125″
00422
PM 2.5 Nozzle Size #2 S.S. .138″
00423
PM 2.5 Nozzle Size #3 S.S. .156″
00424
PM 2.5 Nozzle Size #4 S.S. .172″
00425
PM 2.5 Nozzle Size #5 S.S. .188″
00426
PM 2.5 Nozzle Size #6 S.S. .200″
00427
PM 2.5 Nozzle Size #7 S.S. .216″
00428
PM 2.5 Nozzle Size #8 S.S. .234″
00429
PM 2.5 Nozzle Size #9 S.S. .253″
004210
PM 2.5 Nozzle Size #10 S.S. .274″
004211
PM 2.5 Nozzle Size #11 S.S. .296″
004212
PM 2.5 Nozzle Size #12 S.S. .320″

Method 201A PM10/2.5 Cyclone Package

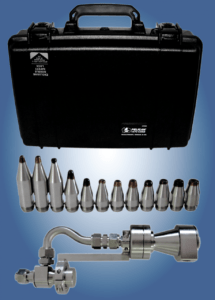

Method 201A PM10/2.5 Cyclone PackageThe PM10/2.5 cyclone is built to meet EPA specifications for method 201A testing, and is designed for in-stack measurement of particulate matter equal to or less than 10µm and or 2.5µm. Designed by experienced field testers, its heavy-duty construction can sustain rigorous use. For greater adaptability with various stack sampling equipment, the shank locks down with any 5/8″ compression fitting. The PM10/2.5 cyclone kit includes: PM10/2.5 cyclone, twelve (12) nozzles, 47mm filter holder, flat wrenches and anti-seize lubricant; all encased in a lifetime warranty shipping case. Depending on the nozzles used, a 4″ to 6″ port is needed for the PM10 head. For more information on this method, please visit the EPA’s CFR 40 website.

Part Number
Item
004010/2.5-K
PM10/2.5 Cyclone Package
004010/2.5
PM10/2.5 Cyclone
0040-NS
Isokinetic Nozzle Set (12)
0040BH
PM10/2.5 Button Hook
0040SR
PM10/2.5 Strain Relief
0040C
PM10/2.5 Connector 5/8″
47 mm Stainless Steel Filter Holder (Sold Separately)
47 mm (100ct.) Glass Filters (Sold Separately)
47 mm (100ct.) Glass Filters (Sold Separately)
Weight11.339809 lbs
Dimensions17 × 21 × 15 in
Component

00402.5OHTR- PM2.5 Stainless Steel Ring, 00402.5ORV- PM2.5 O-ring Viton, 0561ASO- O-ring Stainless Steel for 47mm Filter 0561, 0561AVO- O-ring Viton for 47mm Filter 0561, 47 mm Filter Holder, PM10 Cyclone, PM10 Cyclone Package Kit, PM10 Nozzle Set, PM10.25 Cyclone Package Kit, PM2.5 Cyclone, PM2.5 Cyclone Package Kit, PM2.5 Nozzle Set
