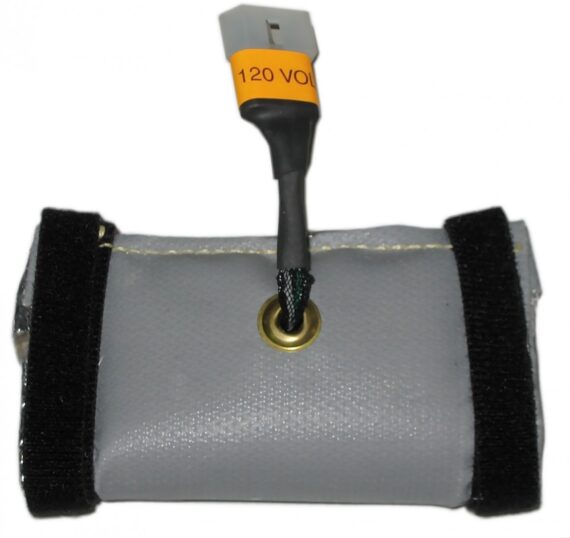

CleanAir Mini Heated/Insulated Electrical Blanket (Hot Pocket)

• Max Operating Temperature: 400° F
• Ambient Temperature: 0° F
• Operating Voltage: 120 VAC
• Wattage: ~ 20.5 Watts
• Amperage: ~ 0.2 amps
• Control: Works in series with Heating Element
• Open/Close: Velcro® Release
• Dimensions Close: 4 “x 3 “x 1 ” (LxWxH)

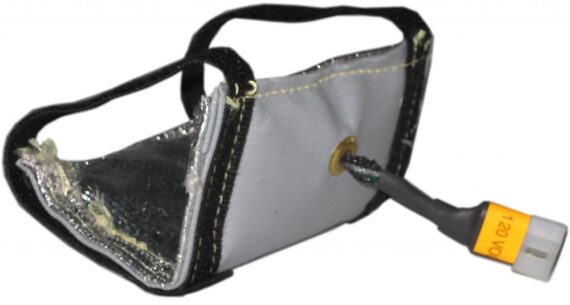

• Dimensions Open: 4″x 6″x.5″ (LxWxH)
• No Thermocouple Included
• Where Used: FTIR Heated Filter Pump Assembly

• Pin Layout:

  • Pin 1 (Black)- Hot 120VAC
  • Pin 2 (White)- Neutral
  • Pin 3 (Green)- Ground
