CleanAir Pressure Temperature Transducer

Pressure Temperature Transducer

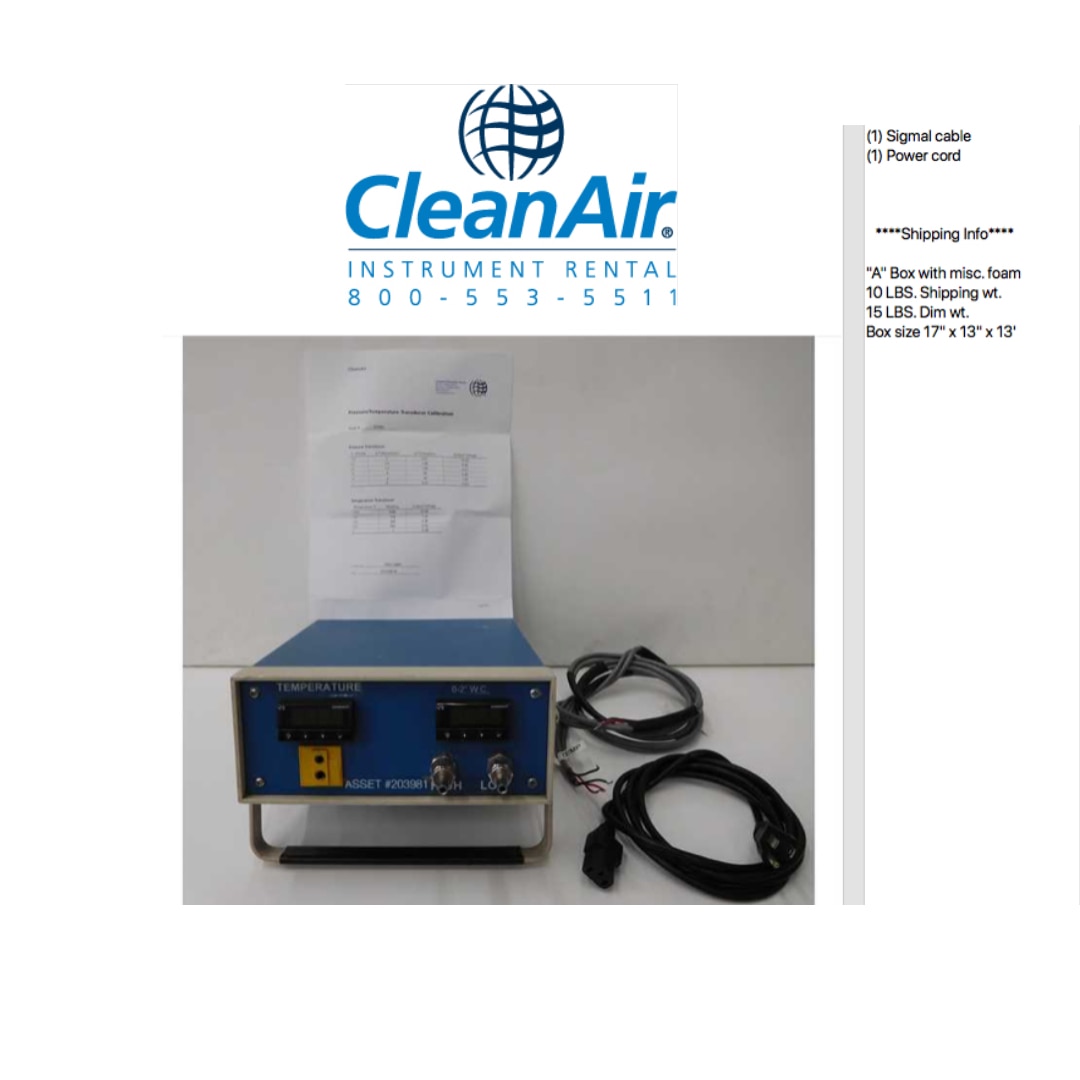

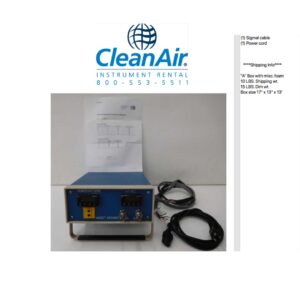

The pressure and temperature transducer box can be used with USEPA Method 2.  Flow data can be outputted via a voltage signal to a data logger for continuous flow measurements.  The pressure temperature transducer comes equip with an adjustable swivel handle for positioning at different viewing angles and effortless transporting between locations.

Part Number

 Pressure Temperature Transducer Specifications:

  • Range: 0-0.25″, 0-2″, 0-5″, 0-10″ WC (specify when ordering) Call for Custom Ranges
  • Temperature Range: 0-1000 °F (specify desired temperature range when ordering)

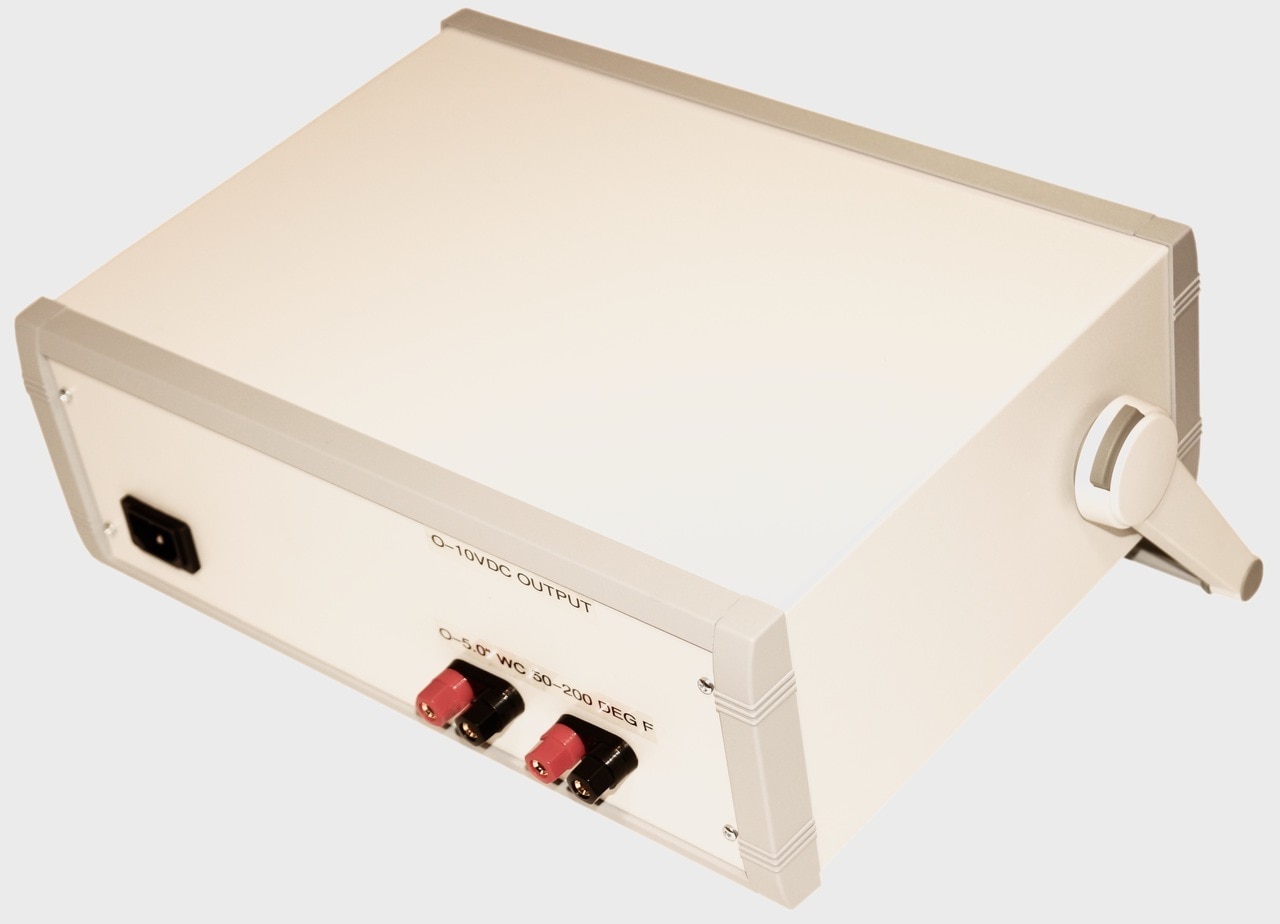

  • Outputs: 0-10 VDC
  • Power: 100-130 VAC
  • Weight: 7.25 lbs.
  • Dimensions: 10.35″ x 13.79″ x 4.72″ (L x W x H)
  • High Accurate Low Pressure Laboratory Transmitter

Temperatuere Controller: Calibrated with a NIST Traceable pyrometer: Five point Calibration of controller reading and output voltage
Process Controller: Calibrated with a pressure calibrator: Six point Calibration of Transducer and output voltage

No additional documents available for this product

CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project.
