Testo 350 XL Replacement Sensors

The Testo Model 350XL is a tried and true portable combustion analyzer, one of the best of its kind, when it was introduced to the market. Keystone features include interchangeable, calibrated sensors with temperature control; a CO sample dilution system for test range expansion; complete, onboard sample conditioning; and an abundance of opportunities to interface with the entire system. The cells can be easily replaced or exchanged for greater testing flexibility.

Part Number	Item	MFG Part Number

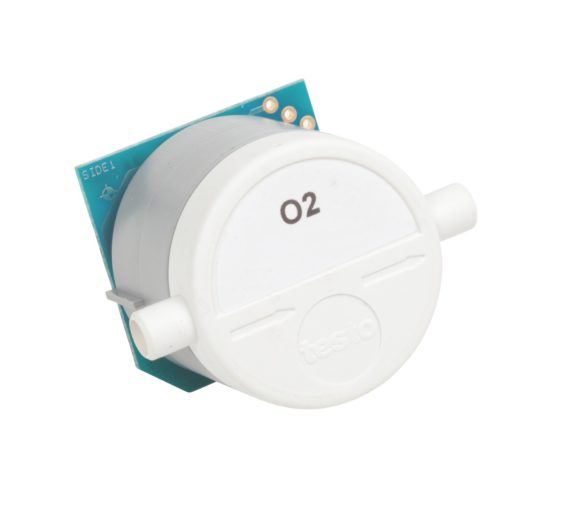

0350XLO2R	O2 (Oxygen) replacement sensor – 300/350	0390 0070
0350XLCOLR	CO (Carbon Monoxide) low replacement sensor (0-500 ppm, H2 comp., 0.1 ppm res.)	0390 0078
0350XLCOR	CO (Carbon Monoxide) replacement sensor (0-10,000 ppm, H2 compensated)	0390 0088
0350XLNO2R	NO2 (Nitrogen Dioxide) replacement sensor (0-500 ppm)	0390 0075
0350XLSO2R	SO2 (Sulphur Dioxide) replacement sensor (0-5,000 ppm)	0390 0081
0350XLNOLR	NO(Nitrogen Oxide) low replacement sensor (0-300 ppm, 0.1 ppm res.)	0390 0077

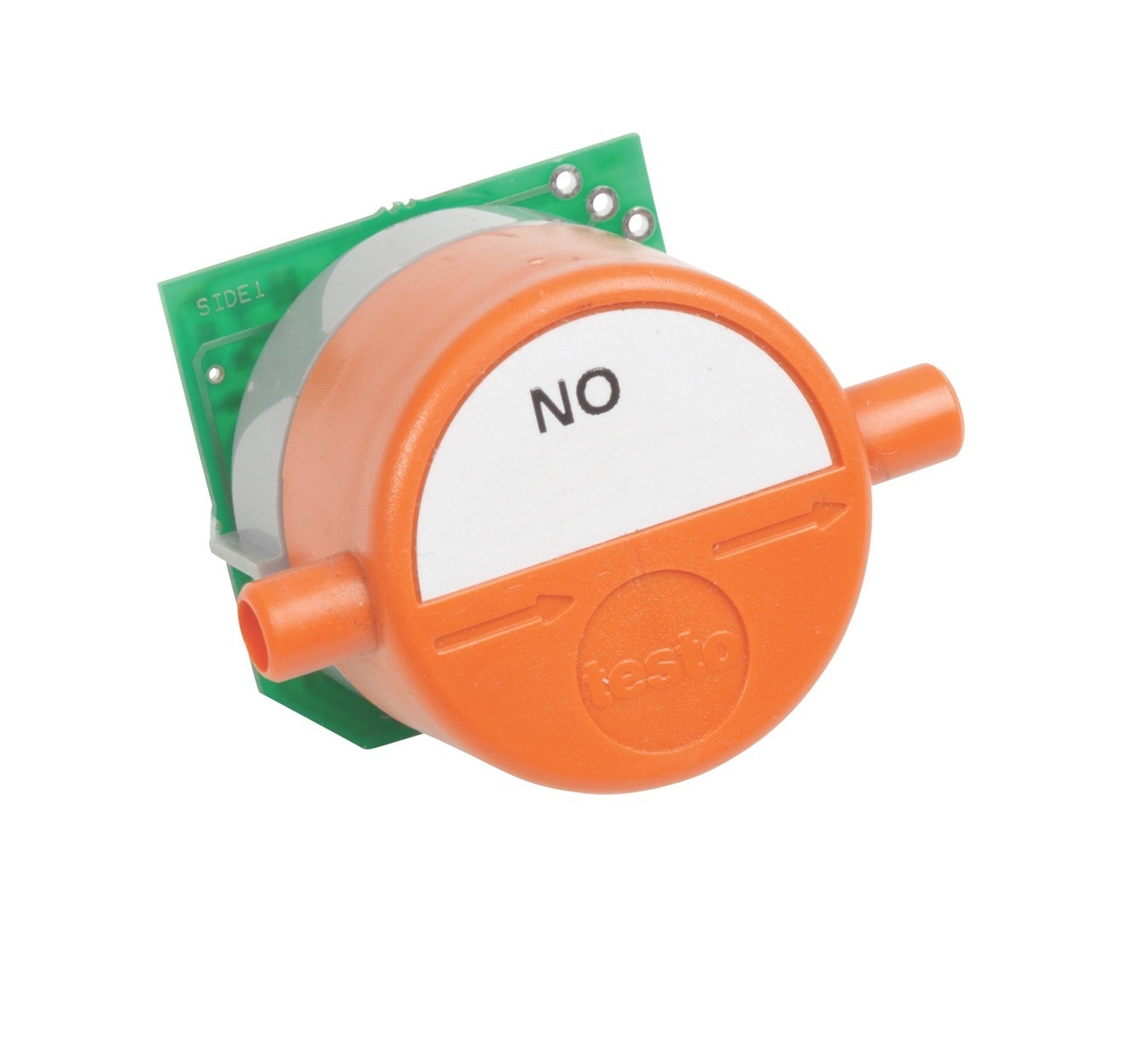

0350XLNOR	NO (Nitrogen Oxide) replacement sensor (0-3,000 ppm)	0390 0093
0350XLHCR	HC (Hydrocarbon) replacement sensor 0-4% – 300	0390 0076
0350XLH2SR	H2S (Hydrogen Sulfide) replacement sensor – 300 (0-300 ppm)	0390 0079

Part Number	Range	Accuracy	Resolution	Response Time
0350XLO2	0-25% vol.	< 0.2% of m.v.	0.1 vol. %	20 s (t₉₅)
0350XLCOL	0-500 ppm H₂ comp.	< 2 ppm (0 to 39.9 ppm) < 5% of m.v. (40 to 500 ppm)	0.1 ppm	40 s (t₉₀)
0350XLCO	0-10,000 ppm H₂ comp.	< 5ppm (0 to 99 ppm) < 5% of m.v. (100 to 2,000 ppm) < 10% of m.v. (2,001 to 3,000 ppm)	1 ppm	40 s (t₉₀)
0350XLNO2	0-500 ppm	< 5 ppm (0 to 99 ppm) < 5% of m.v. (500 ppm)	0.1 ppm	40 s (t₉₀)
0350XLSO2	0-5,000 ppm	< 5ppm (0 to 99 ppm) < 5% of m.v. (100 to 2,000 ppm) < 10% of m.v. (2,001 to 5,000 ppm)	1 ppm	30 s (t₉₀)
0350XLNOL	0-300 ppm	< 2 ppm (0 to 39.9 ppm) < 5% of m.v. (300 ppm)	0.1 ppm	30 s (t₉₀)
0350XLNO	0-3,000 ppm	< 5ppm (0 to 99 ppm) < 5% of m.v. (100 to 2,000 ppm) < 10% of m.v. (2,001 to 3,000 ppm)	1 ppm	30 s (t₉₀)
0350XLHC	0.01-4% vol.	< 400 ppm (100 to 4,000 ppm) < 10% of m.v. (> 4,000 ppm)	0.1 ppm	40 s (t₉₀)
0350XLH2S	0-300 ppm	< 2 ppm (0 to 39.9 ppm) < 5% of m.v. (40 to 300 ppm)	0.1 ppm	35 s (t₉₀)
0350XLCO2	0-50% vol.	± 0.3%vol.+1% of m.v. (0-25%vol.) ± 0.5%vol.+1.5% of m.v.(>25-50%)	0.01%vol (0-25% vol.) 0.01%vol (>25% vol.)	10 s (t₉₀)
CO₂(Calculated)	O to CO₂ max vol.%	Calculated from O₂	0.1 vol. %

	Range	Accuracy	Resolution
Differ. Press. 1	± 80″ H₂O	< 1% m.v. (-20″ to 80″ H₂O) < 1% m.v. (+20″ to +80″ H₂O) < 0.5% m.v. (-19″ to +19″ H₂O)	0.01″ H₂O
Differ. Press. 2	± 16 ” H₂O	< 1% m.v. (16″ to 1.2 ” H₂O) < 1% m.v. (+16″ to +1.2″ H₂O) < 0.5% m.v. (-1.2″ to +1.2″ H₂O)	0.01″ H₂O
Efficiency	0-100%		0.1%
Flow Velocity	0-7900 ft/min		10 ft/min
Current	0-20 mA	± 0.04 mA	± 0.01 mA
Voltage	0-10 V	± 0.01 V	± 0.01 V
rpm	20-20,000 rpm		1 rpm
Temperature	-40-2192 °F	± 0.9 °F (-40 TO +212 °F) ± 0.5% m.v. (+212 TO +2,192 °F)

No additional documents available for this product

CleanAir Engineering offers full-service calibration or repair for this item. To learn more, contact a technician today at: 1-800-553-5511. Or, complete our repair request form to begin your service request today! Most out-of-calibration or out-of-service instruments can be shipped to any one of our four technical service centers, in Chicago, Houston, Pittsburgh, or Marseille, France.
