Aeroqual AQM 65

Aeroqual AQM 65

$0.00

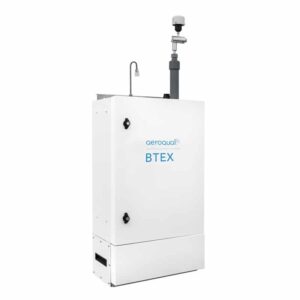

The Aeroqual AQM 65 air quality monitoring station is a near reference1 ambient air analyzer which can be set up for measuring and logging up to 20 different environmental parameters simultaneously. AQM enclosures are large enough to accommodate BTEX (Benzene, Toluene, Ethylbenzene and Xylene) monitoring components, and are sold or rented pre-configured as the AQM 65 BTEX Monitoring Station.

The Aeroqual AQM 65 air quality monitoring station is a near reference1 ambient air analyzer which can be set up for measuring and logging up to 20 different environmental parameters simultaneously. AQM enclosures are large enough to accommodate BTEX (Benzene, Toluene, Ethylbenzene and Xylene) monitoring components, and are sold or rented pre-configured as the AQM 65 BTEX Monitoring Station. Units can be calibrated in the field against certified standards for maximum traceability. Learn more about our full line of Aeroqual ambient air monitors.

Networking multiple monitors together creates a lower-cost, high-density ambient pollution monitoring system for a city or industrial fenceline/perimeter. With near reference sensor performance, the AQM-65 ensures data is reliable, statistically robust and traceable to recognized international standards (e.g. US EPA 40 CFR Part 53 and EU 2008/50/EC).

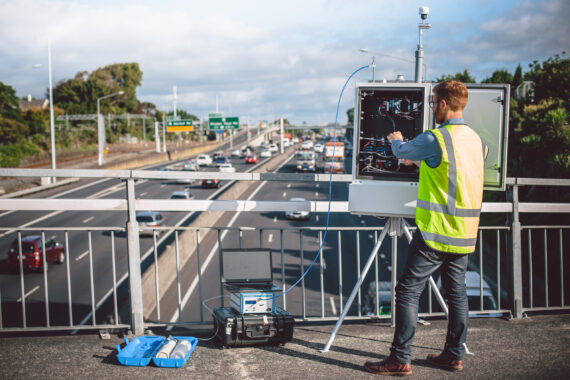

Aeroqual’s AQM 65 can be transported by car, carried by two people, and installed and operational in under 30 minutes. A comparably smaller monitor size means lower power consumption and greater siting possibilities. A modular design increases flexibility and makes maintenance and servicing easy. Rent your AQM 65 configured only with the sensors your project requires. Modules can be individually removed from enclosures and serviced individually and swapped for replacements.

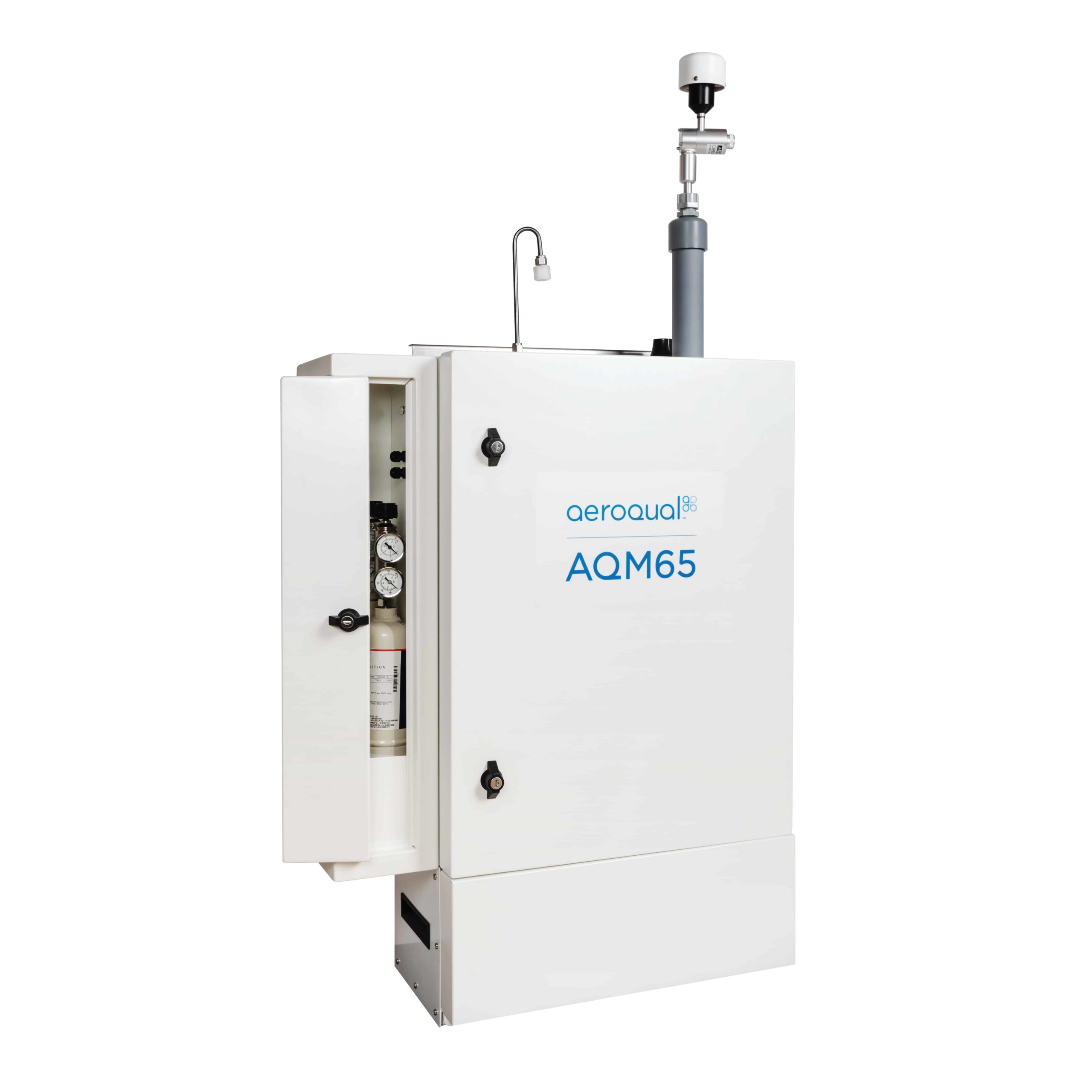

Two Aeroqual calibration options are available for the AQM 65: the AirCal 1000 is a stand-alone calibrator and the AirCal 8000 is a fully-integrated calibration system. Both options limit downtime and allow users to calibrate on site.

AQM 65 Base System Includes:

    • Lockable IP65 enclosure with insulated aluminum construction
    • Gas Sampling System (brushless DC pump, sampling system)
    • Thermal Management System: Danfoss compressor, heater and TMS controller
    • Gas Inlet: PTFE, glass-coated stainless steel tubing, stainless steel fittings
    • Embedded PC (Intel Atom, 1.6GHz, dual core, 2GB RAM, 32GB SSD hard drive)
    • Communications: Ethernet, WIFI
    • Aeroqual Cloud
    • Power Module (90-264 VAC, 47-63Hz)
    • External Temperature & Humidity Sensor (-40 to 120° C; 0-100% RH)
    • Pole and wall mount brackets
    • Documentation (Hard Copy: User Guide, Log Book; Soft Copy on USB stick)

1 Near reference is a classification for air measurement systems where good quality data generated at lower costs is more important than U.S. EPA Federal Reference Method certificated data. Learn more about near reference air measurement equipment.



Included Sensors in Base Rental

Measurements Formula Range
Carbon Dioxide CO2 0-2,000 ppm
Carbon Monoxide CO 0-25 ppm
Hydrogen Sulfide H2S 0-10 ppm
Nitrogen Oxide NOx 0-0.5 ppm
Ozone O3 0-0.5 ppm
Sulfur Dioxide SO2 0-10 ppm
Volatile Organic Compounds (High) VOC 0-30 ppm
Volatile Organic Compounds (Low) VOC 0-500 ppb
Particle Sensor (Nephelometer)
Particle Counter (Profiler)
Manufacturer Product Brochure PDF
Manufacturer Product Spec Sheet PDF

CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project.

CleanAir Engineering offers full-service calibration or repair for this item. To learn more, contact a technician today at: 1-800-553-5511. Or, complete our repair request form to begin your service request today! Your out-of-calibration or out-of-service instrument can be shipped to any one of our four technical service centers, in Chicago, Houston, Pittsburgh, and Marseille, France.

Applications

    • Urban air monitoring networks
    • National air monitoring networks
    • Roadside air monitoring
    • Industrial perimeter monitoring
    • Environmental impact assessments
    • Research and consultancy projects
    • Short term hot spot monitoring
