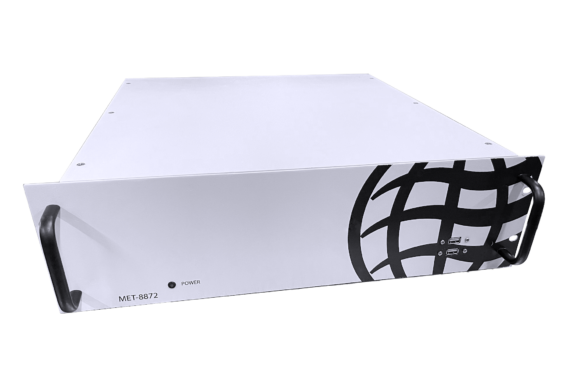

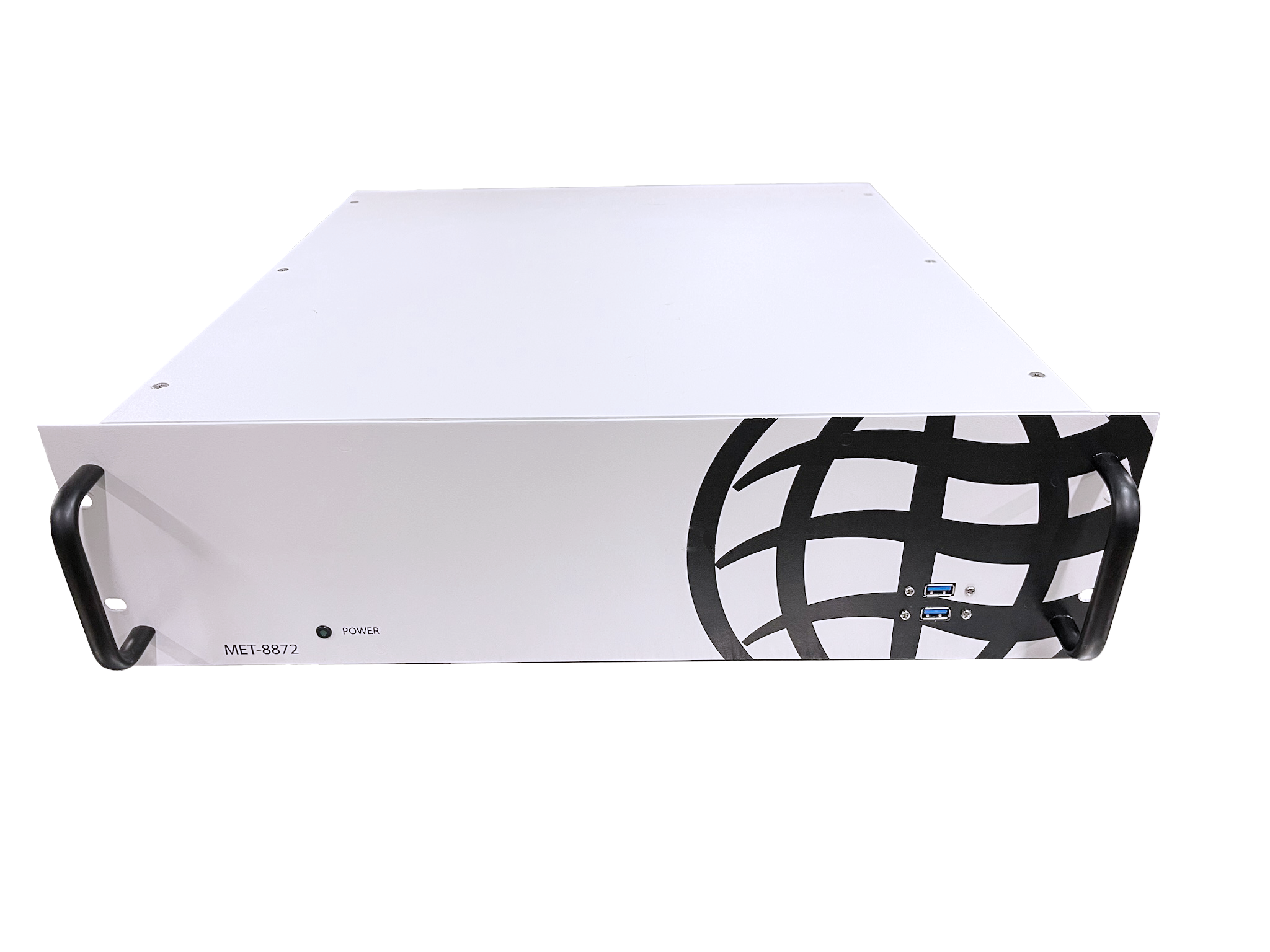

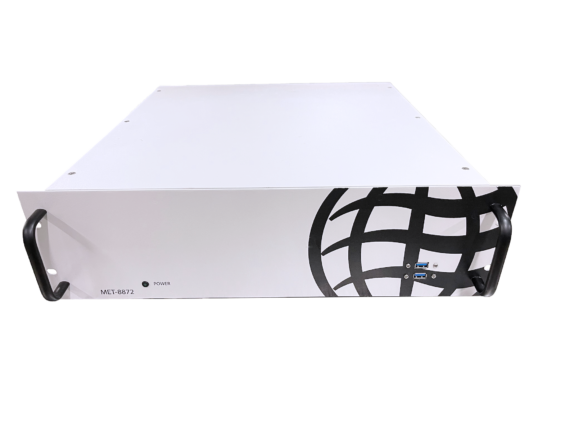

Agilaire 8872 / MET-8872 SiteNode Ambient Data Logger
$0.00
The Agilaire 8872 / MET-8872 SiteNode serves as both the primary data collection device for smart instruments and the host for commonly used PC based programs for analyzer maintenance or running site GCs, BTEX instruments, etc. The SiteNode also provides data backup for up to 20,000,000 data points, or roughly a year’s worth of 1-minute data for 40 parameters. Data can be allocated by parameter, so finer resolution data can be stored as well. Data beyond the defined limit will be automatically written to archive files, which can be removed and restored on the Node or an AirVision server.
The Model 8872 is a true digital site platform for all your site needs, including traditional I/O, direct polling of serial / Ethernet based equipment (improving on the 8832’s capabilities), and providing a host platform for other required site software such as APICOM, iPort, etc. All controlled by a fully graphical user interface, familiar to any AirVision user.
The Agilaire 8872 / MET-8872 SiteNode serves as both the primary data collection device for smart instruments and the host for commonly used PC based programs for analyzer maintenance or running site GCs, BTEX instruments, etc. The SiteNode also provides data backup for up to 20,000,000 data points, or roughly a year’s worth of 1-minute data for 40 parameters. Data can be allocated by parameter, so finer resolution data can be stored as well. Data beyond the defined limit will be automatically written to archive files, which can be removed and restored on the Node or an AirVision server.
The Model 8872 is a true digital site platform for all your site needs, including traditional I/O, direct polling of serial / Ethernet based equipment (improving on the 8832’s capabilities), and providing a host platform for other required site software such as APICOM, iPort, etc. All controlled by a fully graphical user interface, familiar to any AirVision user.
More Data Storage, More Serial Port Expansion, External I/O
The Model 8872 offers solid state storage for 10,000,000 data storage points (100x that of the Model 8832). That’s equivalent to minute data for 5 years. After that point, the unit will internally archive for an additional 100,000,000 data points if needed.
The Model 8872 comes with four (4) serial ports, and can be expanded to an additional 32 serial ports, if needed. And, of course, Ethernet is available for communication to Ethernet-based instruments, DSL, wireless, satellite, etc.
Push, Sync, and Other Options

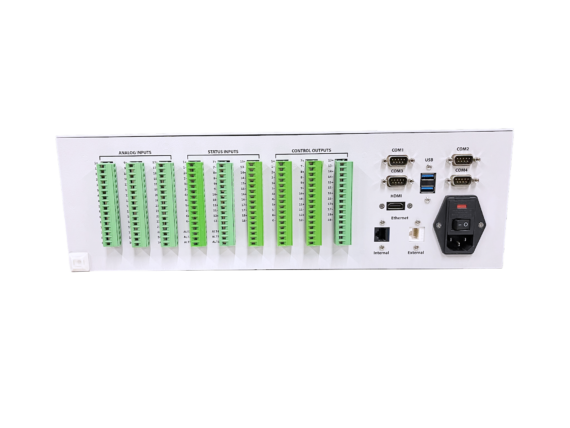

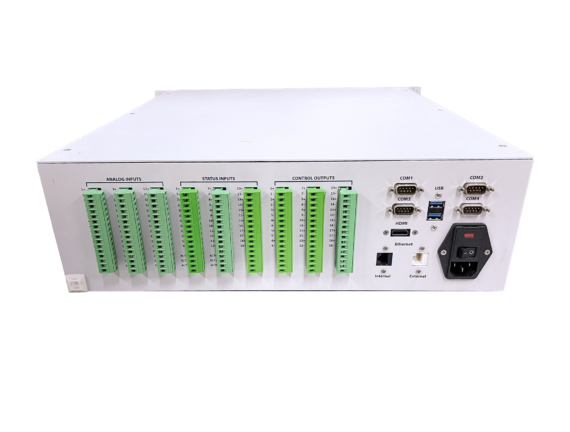

- Legacy I/O Available (analog/digital I/O)
- I/O is plug-compatible with ESC Model 8816 / 8832
- Electronic Site Logbook
- Automatic sync over TCP/IP to AirVision, including data, configuration, logbook entries, chart annotations, etc.
- Serial 8832 emulation mode for polling over dial-up modems
- Remote I/O capable, in case your signals don’t stop in the shelter
- Direct connect to BAM, TEOM, Partisol, Sharp, etc
- Automatic push of HTML / XML / Excel / CSV data
- Automated Data Validation option
- OpenNode2 Compatible
