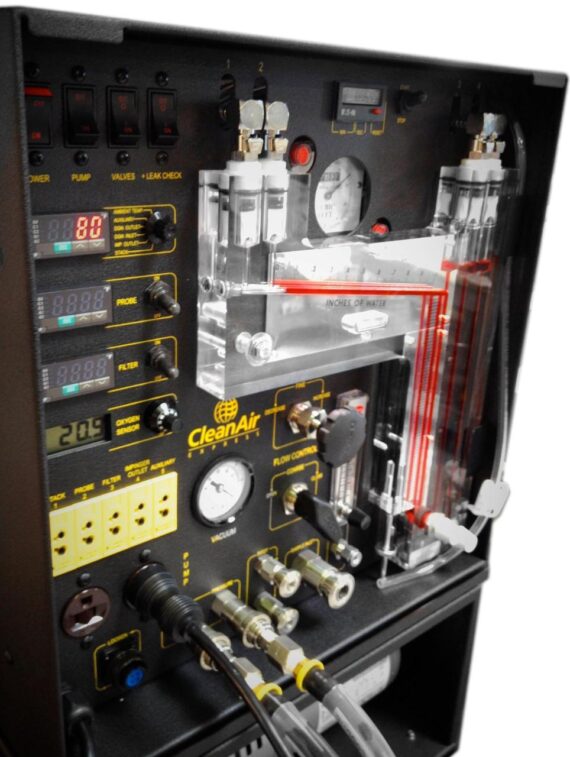

CleanAir Isokinetic Control Console with O2 Sensor

CleanAir Isokinetic Control Console with O2 Sensor



Method 5 Isokinetic Control Console with O2 Sensor


The CleanAir Express Method 5 Isokinetic Control Console is designed to allow monitoring and control of temperatures, pressures, gas velocities and sample flow rates to maintain Isokinetic sampling conditions. Top quality components and field proven durability make this the most dependable control console you can buy. Compatible with most systems currently in use. Suitable for EPA methods: 4, 5, 5I, 6, 8, 8A, 13, 17, 23, 26, 29, and many more (with proper accessories).  With the intergration of the O2 sensor, leak rates can be detected during a test run and save time/money. For more information on this method, please visit the EPA’s CFR 40 website.
Part Number
Isokinetic Control Console with Pump with O2 Sensor
Isokinetic Control Console with Pump (220 V Metric) with O2 Sensor

Isokinetic Control Console with 02 Sensor Specifications:

  • O2 Sensor:  O2 Sensor in-line with dry gas meter exhaust
  • Sample Pump: Pulsation Free 1/3 HP Rotary Vane Vacuum Pump (26″ Hg Vac, 2 cfm @ 15″ Hg) 120 V / 230 V, 50 /60 Hz
  • Dry Gas Meter: S-275 (L/rev., ft./rev., & m3/rev. options)
  • Manometer: 8″ Dual Incline with Stainless Steel Quick-Connects Solenoid Valves Provide Zeroing Ability at any Time
  • Timer: Digital LCD with Battery Backup (Displays h, m, s)
  • Umbilical Power Output Connection: Amphenol 4-pin Fused
  • Auxiliary Power Output Connection: 3 pin 120 V Receptacle
  • Pitot Inlet Connections: 3/8″ Stainless Steel Quick Connects
  • Sample Inlet Connection: 1/2″” Stainless Steel Quick Connect with Stainless Steel Valves
  • Pumpless: Integrated Gas Sample System
  • Temperature Controllers: Solid State for Probe, Filter, and 6 Channel Selector
  • Thermocouple Connections: K-Type Panel Mount
  • Cabinets: Welded Aluminum, Detachable/Stackable Meter and Pump
  • Quick-Release: Access Doors for Both Meter and Pump
  • External Dimensions (h x w x d): 17.5″ x 12″ x 27″ (445 mm x 305 mm x 686 mm)
  • Weight: 70 lbs. (32 kg)
  • Meter Box Console Leak Check Procedure
Documents Tab User Manual Icon CleanAir User Manual PDF

Method 5 Isokinetic Sampling Console Leak Check Procedure
