Temperature Controller Modules
$126.00 – $580.00
Fuji Electric, Watlow, and CleanAir temperature controller modules and assemblies for custom builds and replacement. The FE PXR3 Series offers 100-240 VAC or 24V AC/DC input, while Watlow models offer single- or dual-output, electromechanical relay and switched-DC options, among other features. The CleanAir 9131R is a complete replacement indicator assembly.
Fuji Electric, Watlow, and CleanAir temperature controller modules and assemblies for custom builds and replacement. The PXR3 Series RCY1-4V0A1 and 4BRA1 offer 100-240 VAC or 24V AC/DC input, while Watlow models offer single- or dual-output, electromechanical relay and switched-DC options, among other features. The CleanAir 9131R is a complete replacement indicator assembly.
| Part Number | Item |
|---|---|

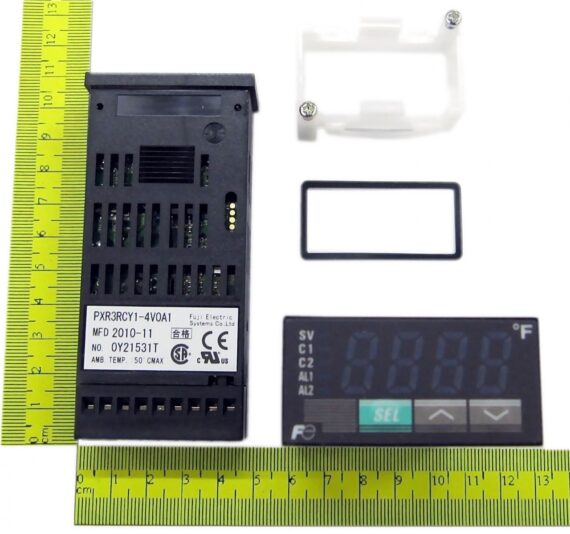

| 91301 | Fuji Electric PXR3 series Fuzzy Logic Controller 1/32 DIN with PID Auto-tune, Nema 4x faceplate, 100-240v AC input power (50/60Hz), 8 segment ramp/soak programming, relay or SSR outputs. Download Temperature Controller pdf Manual- 1.3 Mb |
| 91304 | Fuji Electric PXR3 series Fuzzy Logic Controller 1/32 DIN with PID Auto-tune, Nema 4x faceplate 24v AC/DC input power (50/60Hz), 8 segment ramp/soak programming, relay or SSR outputs and retransmission (4-20mA DC). |
| 91305 | Watlow Temperature Controller microprocessor based 1/16 DIN, single input (switched DC), Dual Output, 100v-240v AC input power, and display colors red and green. |
| 91307 | Watlow Temperature Controller microprocessor based 1/16 DIN, single input (switched DC), Single Output, 100v-240v AC input power, and display colors red and green. |
| 9130M | Watlow Temperature Controller microprocessor based 1/16 DIN, single input, dual output 4 digit display, NEMA 4x rating, electromechanical relay, from C, 5A, CE complaint, without contact suppression. |

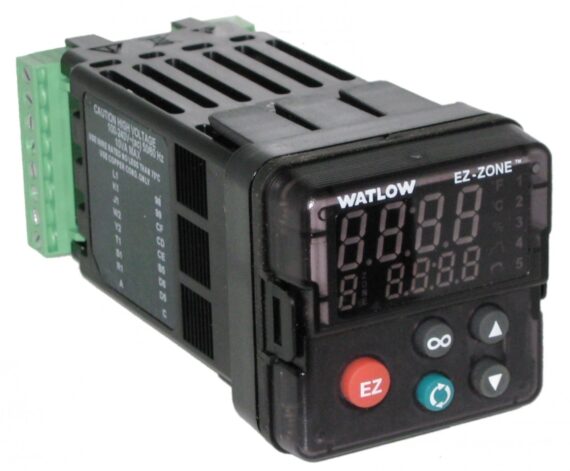

| 9130 | Watlow Temperature Controller microprocessor base 1/16 DIN, single input, dual output 4 digit display, NEMA 4x rating, switched dc output, non insulated, from C, 5A, CE compliant, for use with solid state relay. |

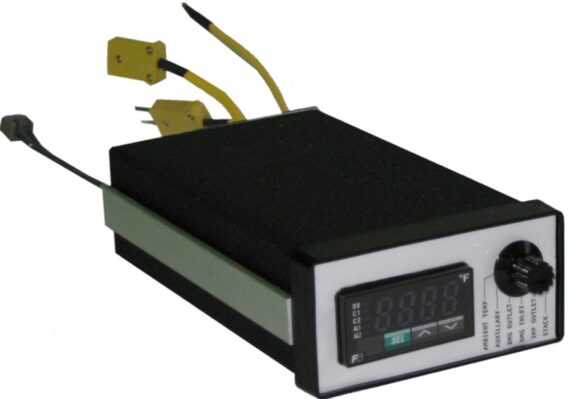

| 9131R | CleanAir 6-Channel replacement indicator. Rugged and dependable. |
| Weight | 0.045359 lbs |
|---|---|
| Dimensions | 8 × 12 × 0.1 in |
| Model Number | 9130 – PM6C1CA-AAAAAAA, 91301- PXR3-RCY1-4V0A1, 91304 – PXR3-RCY1-4BRA1, 91305 – SD3C-HCCA-AARG (Dual Output), 91307 – SD3C-HCCA-AARG (Single Output), 9130M – PM6C1EA-AAAAAAA, 9131R- CleanAir 6-Channel replacement indicator |
No additional documents available for this product
