Tedlar Sample Bags

Tedlar Sample Bags

$20.00$51.00

Clear

SKU:
0600.5P_
Share:

Tedlar ® Sample Bags

Tedlar Sample Bag

Tedlar ® Sample Bags are unlike other sample bag materials, Tedlar ® film resists gas permeation- both into and out of the bag, assuring sample integrity for all applications. Tedlar ® is rated for continuous use from -98 to 225 deg F. This wide range of operation of Tedlar ® Sample Bags allows for use in very cold or very hot environments including stacks, vents, and flues. Tedlar ® film is inert to a wide range of chemicals. Tedlar ® Sample Bags are referenced for many EPA methods, including Methods 3, 18, and 40. Avoid shipping filled bags in unpressurized planes

Sample Tedlar ® Bag Size
Part Number
Length
Capacity
Halkey Roberts Metal Valve Hose Barb
Polypropylene 2N1 Valve
6″ x 6″
0.5 Liter
0600.5R
0600.5P
7″ x 7″
1 Liter
06001R
06001P
9″ x 9″
2 Liter
06002R
06002P
10″ x 10″
3 Liter
06003R
06003P
12″ x 12″
5 Liter
06005R
06005P
12″ x 18″
10 Liter
06010R
06010P
18″ x 18″
16 Liter
06016R
06016P
18″ x 24″
25 Liter
06025R
06025P
24″ x 24″
40 Liter
06040R
06040P
NOTE: We recommend shipping filled Tedlar ® bags in a rigid carton to prevent damage /discharge during shipping. Do not ship sample bags by air unless the cargo cabin is pressurized. Do not overfill sample bags- avoid filling the bag to more that 80% of its maximum volume. At the end of the sampling period, turn the pump off and close the valve on the bag. Flush the bags out with nitrogen or purified air before use.

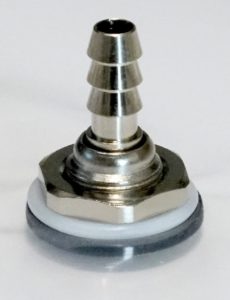

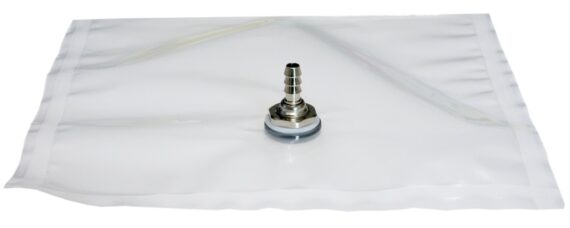

Tedlar Bags with Halkey Roberts Metal Valve Hose Barb
Tedlar Bags with Polypropylene 2N1 Valve
Weight0.226796 lbs
Dimensions8 × 12 × 0.1 in
Fitting

Halkey Roberts Metal Valve, Polypropylene 2N1 Valve with Septum

Size

10" x 10" (3 Liter), 12" x 12" (5 Liter), 12" x 18" (10 Liter), 18" x 18" (16 Liter), 18" x 24" (25 Liter), 24" x 24" (40 Liter), 6" x 6" (0.5 Liter), 7" x 7" (1 Liter), 9" x 9" (2 Liter)
