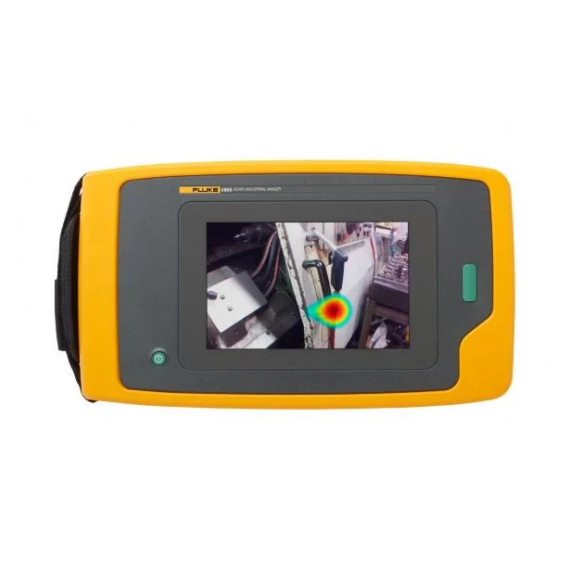

The Fluke ii900 sonic imager detects and locates acoustic signatures. These signatures can indicate leaks in compressed air, compressed gas, and vacuum systems. Equipped with an acoustic sensor-array that aligns a sound source heatmap with the image. A 7-inch display provides a live-view image of the inspection area. Capture and save still image files and videos from the inspection for documentation and reports. Includes rechargeable battery, external charger and universal power adapters. Transfer files via USB-C.
Specifications
| Sensors |
| # of microphones |
64 digital MEMS microphones |
| Frequency band |
2 kHz to 52 kHz |
| Sound pressure sensitivity |
Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet
(Detects a 2.5 cm3/sec leak at 7 bar from up to 10 meters) |
| Operation distance range |
0.5 to > 70 meters (1.6 to > 164 feet)* |
| Field of View |
63 ° ± 5 ° |
| Nominal frame rate |
25 FPS |
| *Depending on ambient conditions |
| Built-in digital camera (visible light) |
| Field of View (FOV) |
63 ° ± 5 ° |
| Focus |
Fixed lens |
| Zoom |
3 x Digital Zoom |
| Resolution |
1.2 MP |
| Display |
7″ LCD with backlight, under-sunlight readable |
| Resolution |
1280 x 800 (1,024,000 pixels) |
| Touchscreen |
Capacitive |
| Acoustic Image |
Yes, SoundMap™ image |
| Image storage |
| Storage capacity |
20GB (>5000 pictures / >999 videos) |
| Image format |
Blended visual and SoundMap™.JPG or .PNG |
| Video format |
Blended visual and SoundMap™.MP4 |
| Video length |
Up to 5 minutes |
| Digital export |
USB-C for data transfer |
| Acoustic Measurements |
| Sound pressure (typical) |
15.4 dB to 115.2 dB SPL (±1 dB) at 2 kHz
5.6 dB to 102.5 dB SPL (±2 dB) at 19 kHz
28.4 dB to 131.1 dB SPL (±1 dB) at 35 kHz
41.8 dB to 133.1 dB SPL (±3 dB) at 52 kHz |
| Auto max/min dB gain |
Auto or manual, user selectable |
| Frequency band selection |
User selectable through user-made presets or manual entry |
| Classification and quantification |
LeakQ™
Leak size and cost estimation |
| Software |
| Ease of use |
Intuitive user interface |
| Trend graphs |
Frequency and dB scale |
| Spot markers |
dB level reading at center point of the image |
| Asset ID |
QR code based asset ID identification |
| Asset Inspection Status: |
‘As left’, ‘As found’ ; ‘Undetermined’ |
| Photo notes |
Up to 4 photos notes for reference |
| Source |
Show single or multiple sources |
| Profile |
Preset capture profiles |
| Annotation: |
Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure; |
| Other |
Operating conditions; Weather notes |
| Leak values |
Leak costs; Leak volume; LeakQ™ scale |
| Battery |
| Batteries (field-replaceable, rechargeable) |
Rechargeable Li-ion |
| Battery life |
6 hours (product includes spare battery) |
| Battery charging time |
3 hours |
| Battery charging system |
External charger |
| General Specifications |
| Standard palettes |
3: Grayscale, Ironbow, Blue-Red |
| Operating Temperature |
-10 °C to 45 °C (14 °F to 113 °F) |
| Storage Temperature |
-20 °C to 70 °C (-4 °F to 158 °F) Without batteries |
| Relative humidity |
10 % to 95 % non-condensing |
| Size (H x W x L) |
186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) |
| Weight (battery included) |
1.8 kg (3.95 pounds) |
| Ingress Protection (IP) |
IP41 |
| Warranty |
2 year |
| Fluke Premium Care |
Premium Care Standard** |
| Self-diagnostic notification |
Array-health test to identify when microphone array needs attention |
| Supported languages |
Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| RoHS compliant |
Yes |
| ** Subject to regional availability |
|
| Safety |
| General Safety |
IEC 61010-1 |
| Electromagnetic Compatibility (EMC) International |
IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2
CISPR 11: Group 1, Class A |
| Korea (KCC) |
Class A Equipment (Industrial Broadcasting & Communication) |
| USA (FCC) |
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
