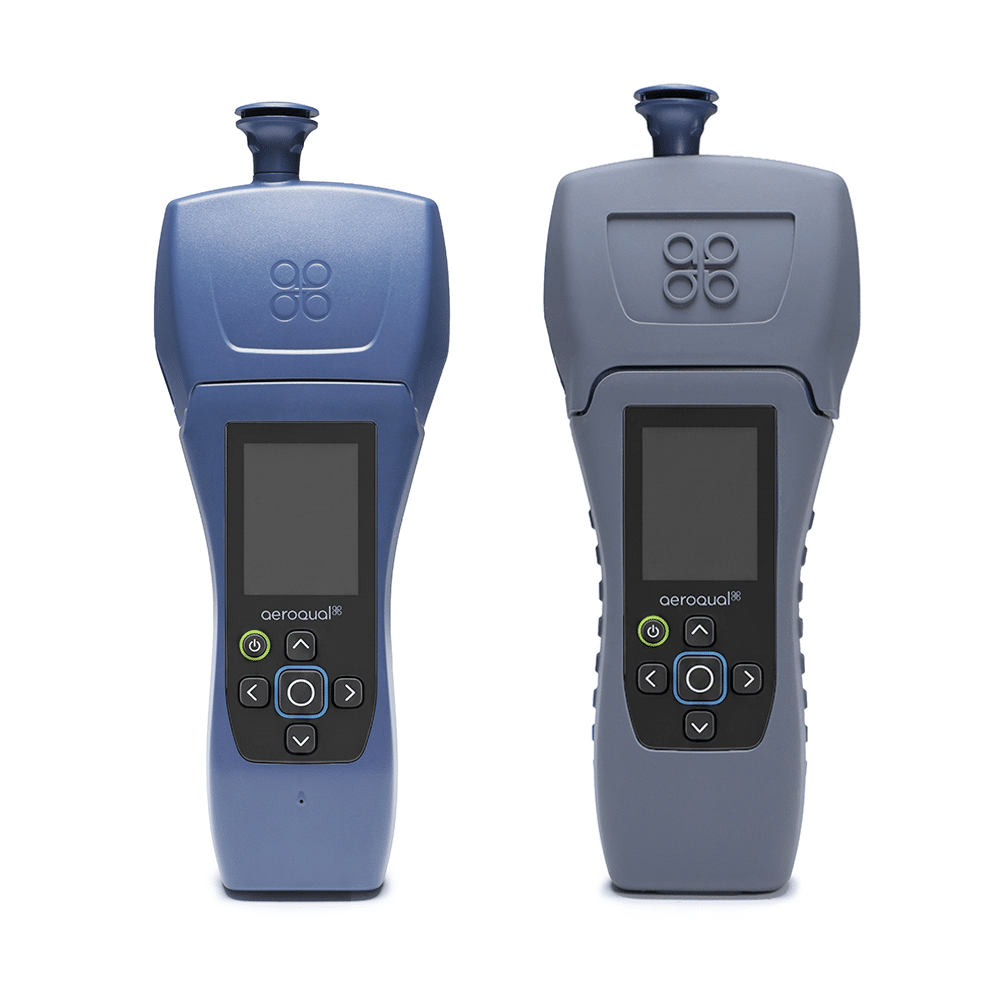

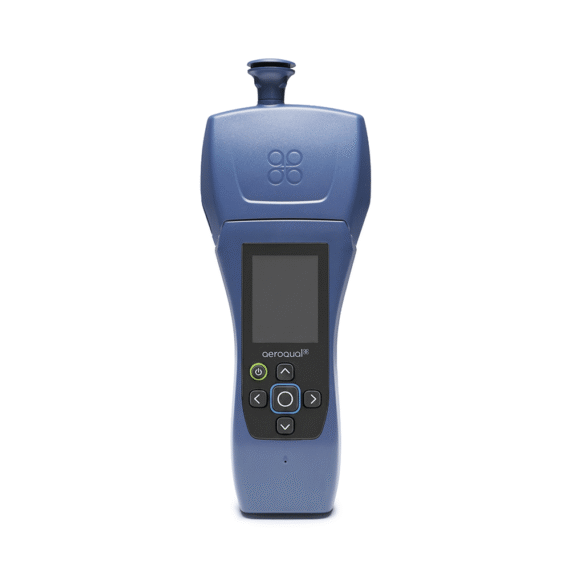

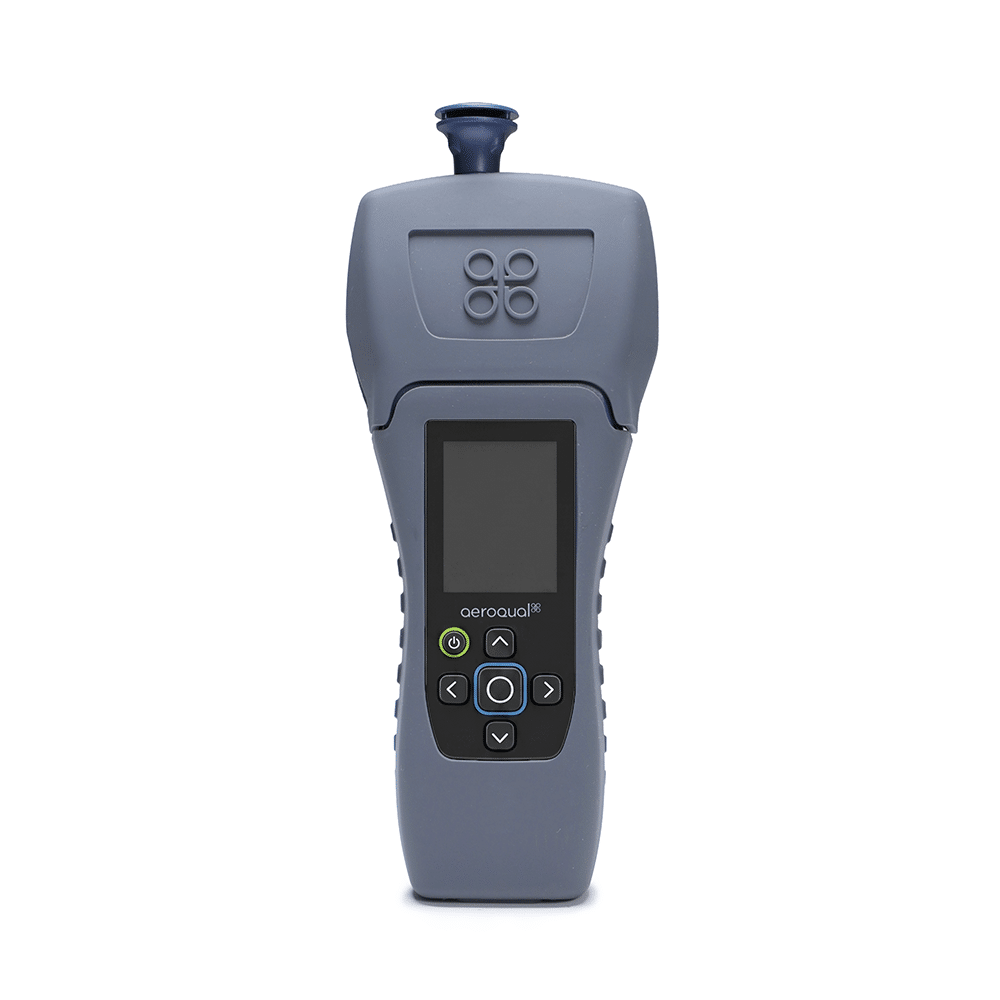

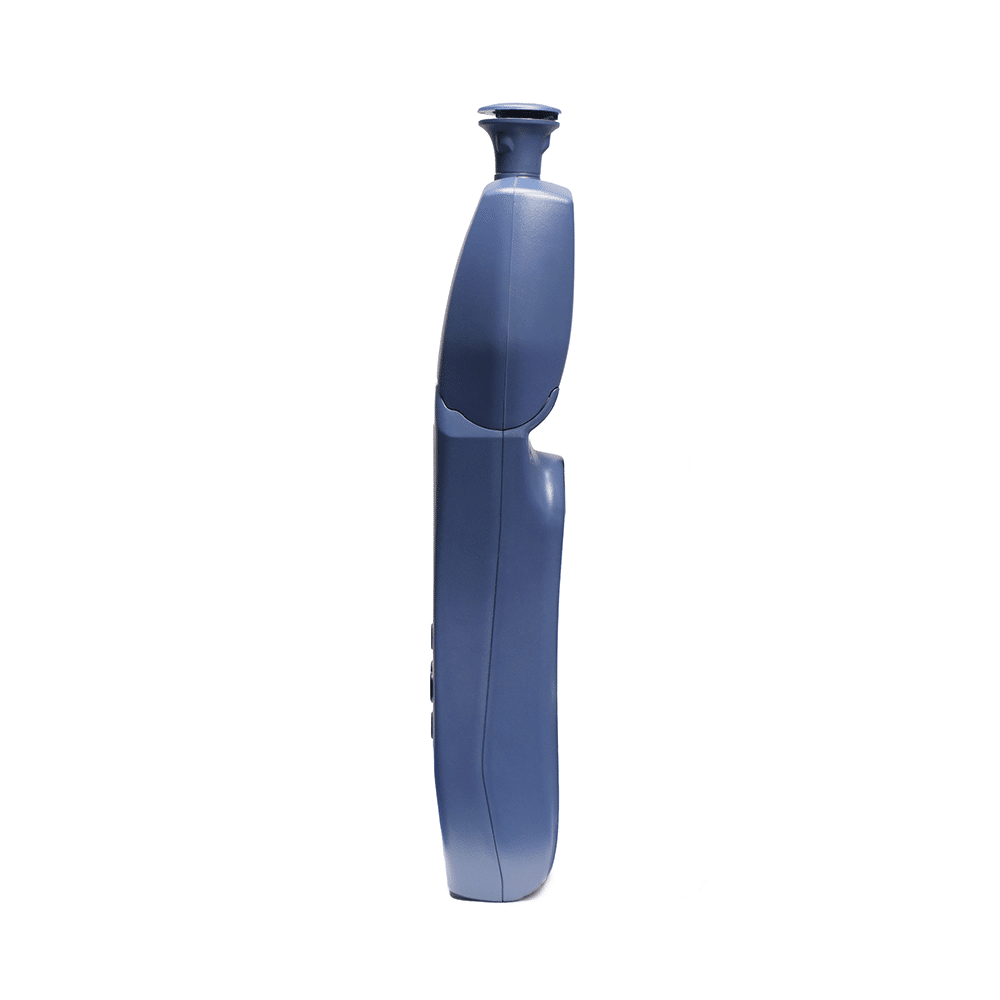

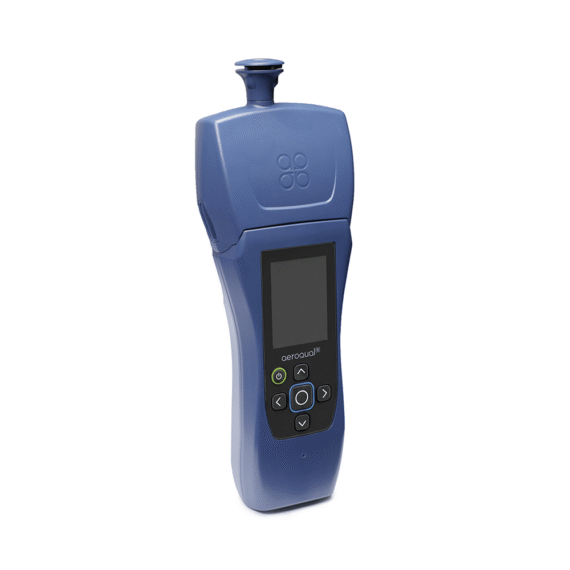

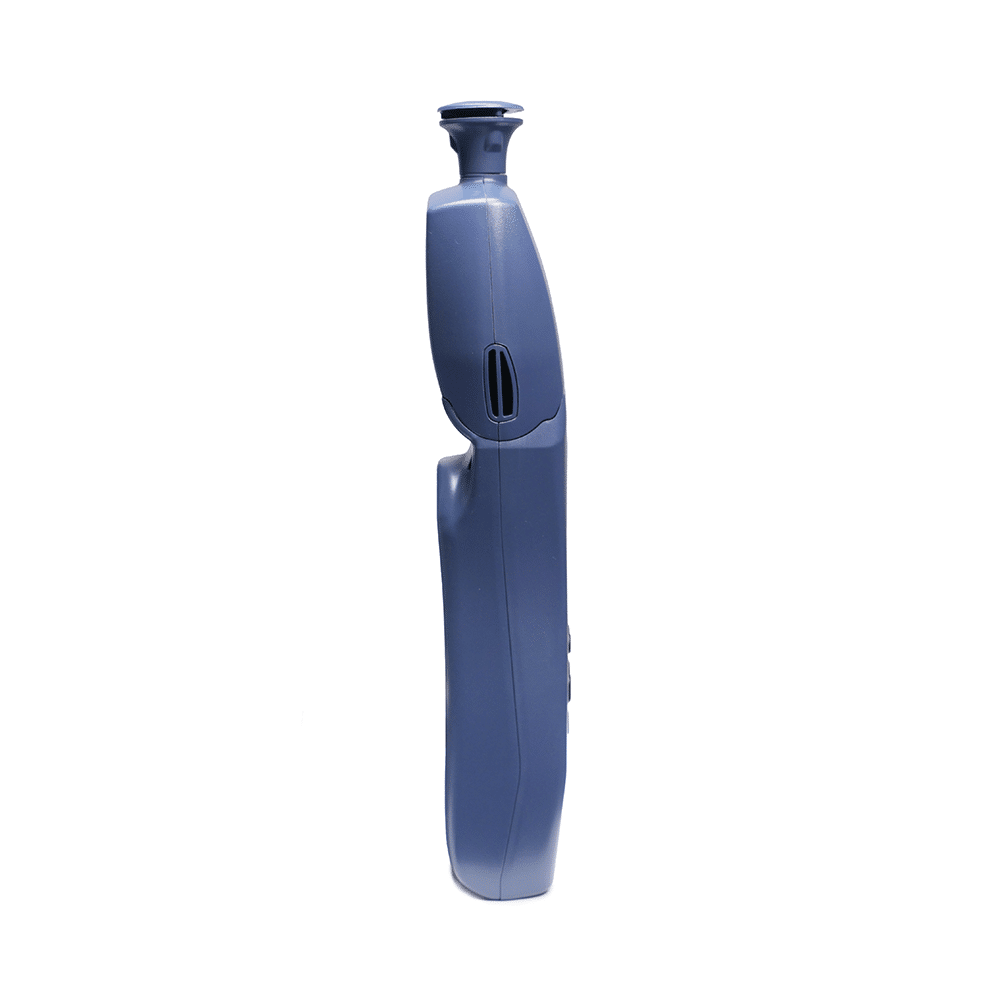

Aeroqual Ranger Portable Dust Monitor
$2,520.00 – $5,200.00

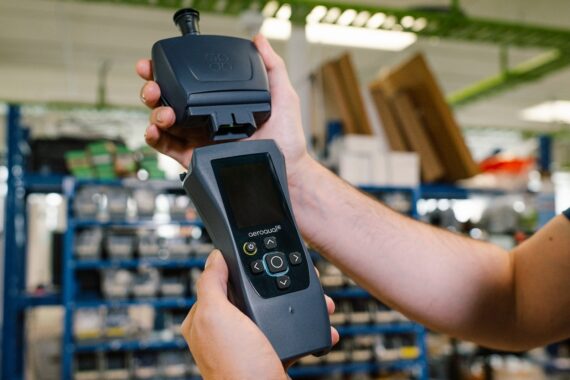

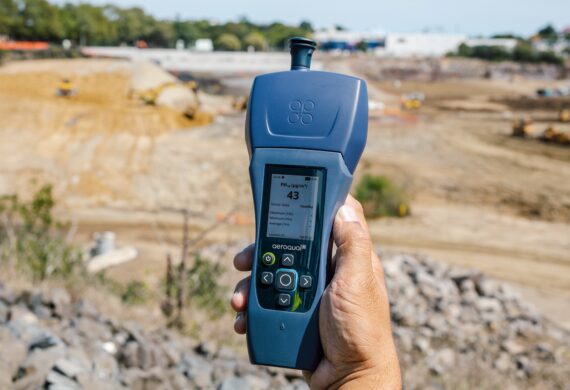

The Aeroqual Ranger for handheld dust and PM sampling simultaneously measures particulate matter at four fractions: PM1, PM2.5, PM4, PM10, TSP, plus relative humidity, and temperature. Ambient sampling every second for concentrations of 0-30,000 μg/m3 with the active, omni-directional sampling head. Wi-Fi enabled, cloud-connected, with onboard data storage. Operating range: 32°-122° F. Weight: 22 oz.
The Aeroqual Ranger for handheld dust and PM sampling simultaneously measures particulate matter at four fractions: PM1, PM25, PM4, PM10, TSP, including Relative Humidity, and Temperature. Ambient sampling every second for concentrations of 0-30,000 μg/m3 with the active, omni-directional sampling head. Wi-Fi enabled, cloud-connected, with onboard data storage. Operating range: 32°-122° F. Weight: 22 oz.

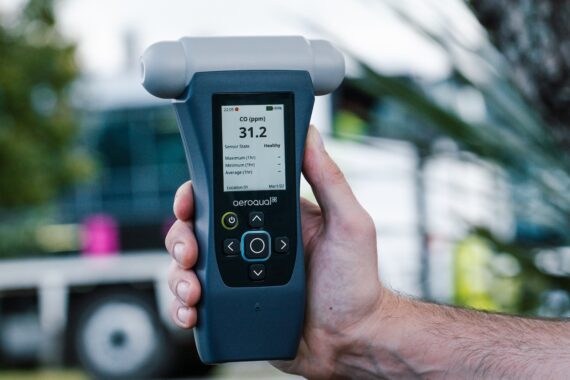

The Ranger supports the full line of Aeroqual S-500 sensors. Available as a package rental with replacement sensors and Cloud data services or as a base unit purchase, plus Ranger Cloud and sensor replacement subscriptions (extra). First year subscription included with purchase. Additional years: $1,200 per year.
For other product offerings from Aeroqual and CleanAir, Discover the Aeroqual Range.
For ordering information, see Aeroqual 500 Portable Monitor Sensors.
All sensors use active, fan sampling
| Part Number | Measurements | Formula | Range (ppm) | Accuracy | Resolution (ppm) | Sensor Type |
|---|---|---|---|---|---|---|
| SHCD | Carbon Dioxide | CO2 | 0-2000 | <±10ppm + 5% | 1 | NDIR |
| SHCE | Carbon Dioxide | CO2 | 0-5000 | <±20ppm + 5% | 1 | NDIR |
| SHECL | Chlorine | Cl2 | 0-10 | <±0.02ppm + 10% | 0.01 | GSE |
| SHCO | Carbon Monoxide (Leak Detector) | CO | 0-1000 | <±2ppm + 15% | 1 | GSS |
| SHECM | Carbon Monoxide | CO | 0-25 | <±0.5 ppm 0-5 ppm <±10% 5-25ppm |
0.01 | GSE |
| SHECN | Carbon Monoxide | CO | 0-100 | <±1 ppm 0-10 ppm <±10% 10-100ppm |
0.1 | GSS |
| SHEF | Formaldehyde | CH2O | 0-10 | <±0.05 ppm 0-0.5 ppm <±10% 0.5-10ppm |
0.01 | GSE |
| SHEHS | Hydrogen sulfide | H2S | 0-10 | <±0.05 ppm 0-0.5 ppm <±10% 0.5-10ppm |
0.01 | GSE |
| SHEHT | Hydrogen sulfide | H2S | 0-100 | <±0.5 ppm 0-5 ppm <±10% 5-100ppm |
0.1 | GSE |
| SHENG | Ammonia | NH3 | 0-100 | <±0.5ppm + 10% | 0.1 | GSE |
| SHENW | Nitrogen Dioxide | NO2 | 0-1 | <±0.02 ppm 0-0.2 ppm <±10% 0.2-1 ppm |
0.001 | GSE |
| SHESO | Sulfur Dioxide | SO2 | 0-10 | <±0.05 ppm 0-0.5 ppm <±10% 0.5-10ppm |
0.01 | GSE |
| SHESP | Sulfur Dioxide | SO2 | 0-100 | <±0.5 ppm 0-5 ppm <±10% 5-100ppm |
0.1 | GSE |
| SHHA | Hydrogen | H2 | 0-5000 | <±10ppm + 10% | 1 | GSS |
| SHMT | Methane | CH4 | 0-10,000 | <±20ppm + 15% | 1 | GSS |
| SHNH | Ammonia | NH3 | 0-1000 | <±5 ppm +15% | 1 | GSS |
| SHEOZ | Ozone | O3 | 0-10 | <±0.01ppm + 7.5% | 0.01 | GSE |
| SHOZG | Ozone | O3 | 0-10 | <±0.1ppm + 15% | 0.01 | GSS |
| SHOZL | Ozone | O3 | 0-0.5 | <±0.008 ppm 0-0.1 ppm <±10% 0.1-0.5 ppm |
0.001 | GSS |
| SHOZU | Ozone | O3 | 0-0.15 | <±0.005 ppm | 0.001 | GSS |
| SHOZS | Ozone | O3 | 0-0.05 | <±0.002 ppm | 0.001 | GSS |
| SHVOCH | Volatile Organic Compounds | VOC | 0-2000 | <±0.2ppm + 10% | <1000ppm: 0.1 >1000ppm: 1 |
PID |
| SHVOC | Volatile Organic Compounds | VOC | 0-30 | <±0.02ppm + 10% | 0.01 | PID |
| SHPM | Particulate Matter | PM with RH Correction | 0.001-1.000 mg /m3 | ± 0.005 mg /m3 + 15 % | 0.001 mg /m3 | LPC |
| SHVM | Volatile Organic Compounds | VOC | 0-25 | <±0.1 ppm + 10% | 0.1 | GSS |
| SHVP | Volatile Organic Compounds | VOC | 0-500 | <±5ppm + 10% | 1 | GSS |
| SHPE | Perchloroethylene | C2Cl4 | 0-200 | <±5 ppm 0-50 ppm <±10% 50-200 ppm |
1 | GSS |
| SHVN | Nonmethane Hydrocarbons | NMHC | 0-25 | <±0.1 ppm + 10% | 0.1 | GSS |
Sensor Types
|
||||||
CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project. Contact us for more information.
