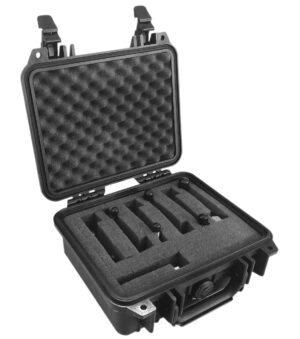

Isokinetic Sampling Nozzle Set

Full Screen

Isokinetic Sampling Nozzle Set

$280.00 – $1,405.00

Purchase Proposal
SKU:
NS7PB
Tag:

Method 5 Isokinetic Sampling Nozzle Sets
Method 5 Isokinetic Sampling Nozzle Sets

Clean Air Express Isokinetic Sampling Nozzles are available in Pyrex (Borosilicate glass), Quartz, Stainless Steel, or Inconel (Alloy 600). When using a straight Quartz or Pyrex (Borosilicate) nozzle, we suggest using a glass filled ptfe union. Please specify material when ordering.

Nozzles Sets are available in the following materials:

Pyrex (Borosilicate)(PB), Quartz (QB), 316 Stainless Steel (SB), Inconel (IB), Tapered Pyrex (Borosilicate) 14/20 (PT20), Tapered Pyrex (Borosiicate) 14/35 (PT35), Tapered Quartz 14/20 (QT20), Tapered Quartz 14/35 (QT35)

*Stainless Steel and Inconel Alloy 600 Nozzles come with Nut and Ferrule
Button Hook Nozzle Sets with 5/8″ Shank
Part Number
Material
Nozzle Size
NS7-
(PB), (QB), (SB), (IB)
1/8,3/16,1/4,5/16,3/8,7/16,1/2
Button Hook Nozzle Sets with 14/35 Female Taper
Part Number
Material
Nozzle Size
NS7-
(PT20), (PT35), (QT20), (QT35)
1/8,3/16,1/4,5/16,3/8,7/16,1/2
  • PB – Borosilicate Glass with 5/8″ Shank (max temp. 900°F or 480°C)
  • PT20 – Bororsilicate Glass with 14/20 Female Taper (max temp. 900°F or 480°C)
  • PT35 – Borosilicate Glass with 14/35 Female Taper (max temp. 900°F or 480°C)
  • QB – Glass Quartz with 5/8″ Shank (max temp. 1650°F or 900°C)
  • QT20 – Glass Quartz with 14/20 Female Taper (max temp. 1650°F or 900°C)
  • QT35 – Glass Quartz with 14/35 Female Taper (max temp. 1650°F or 900°C)
  • SB – Stainless Steel with 5/8″ Shank (max temp. 1200°F or 650°C)
  • IB – Inconel (Alloy 600) with 5/8″ Shank (max temp 1600°F or 871°C)

Individual Nozzles can be purchased here
