Method 5 Isokinetic Sampling Nozzles Low Profile

Method 5 Isokinetic Sampling Nozzles Low Profile

$42.00$518.00

Clear

SKU:
0401PLP
Share:

Method 5 Isokinetic Sampling Nozzles Low Profile

Method 5 Isokinetic Sampling Nozzles Low Profile

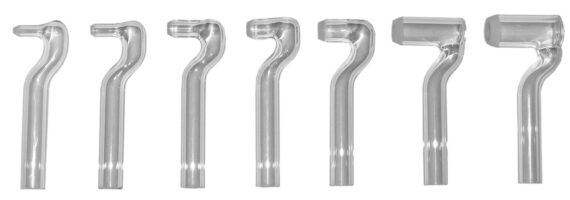

The Low Profile Method 5 Isokinetic Sampling Nozzles are not for Compliance purposes. They are designed for diagnostics where there is no port size available for the stardard nozzles. Designed to fit into a 2″ Port. Clean Air Express Low Profile Isokinetic Sampling Nozzles are available in Pyrex (Borosilicate) and Quartz. When using quartz or Pyrex (Borosilicate) nozzles, we suggest using a PTFE union. Please specify material when ordering.

Button Hook Nozzle with 5/8″ Shank
Part Number for Pyrex
Part Number for Quartz
Nozzle Size
0401PLP
0401QLP
1/8″
0402PLP
0402QLP
3/16″
0403PLP
0403QLP
1/4″
0404PLP
0404QLP
5/16″
0405PLP
0405QLP
3/8″
0406PLP
0406QLP
1/2″
0407PLP
0407QLP
5/8″

Nozzles are available in the following materials:
Pyrex(P), Quartz (Q)

Temperature Ratings for Isokinetic Sampling Nozzles:

  • Pyrex (Borosilicate): (max temp 900°F or 480°C)
  • Quartz: (1650°F or 900°C)
  • *Recommended temperatures are listed first, actual temperature limitations in parenthesis.
Weight0.090718 lbs
Dimensions9 × 9 × 0.3 in
Set or Individual

1/2", 1/4", 1/8", 3/16", 3/8", 5/16", 5/8", Nozzle Set: 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8" with 5/8" Nuts/Ferrules

Material

Pyrex, Quartz
