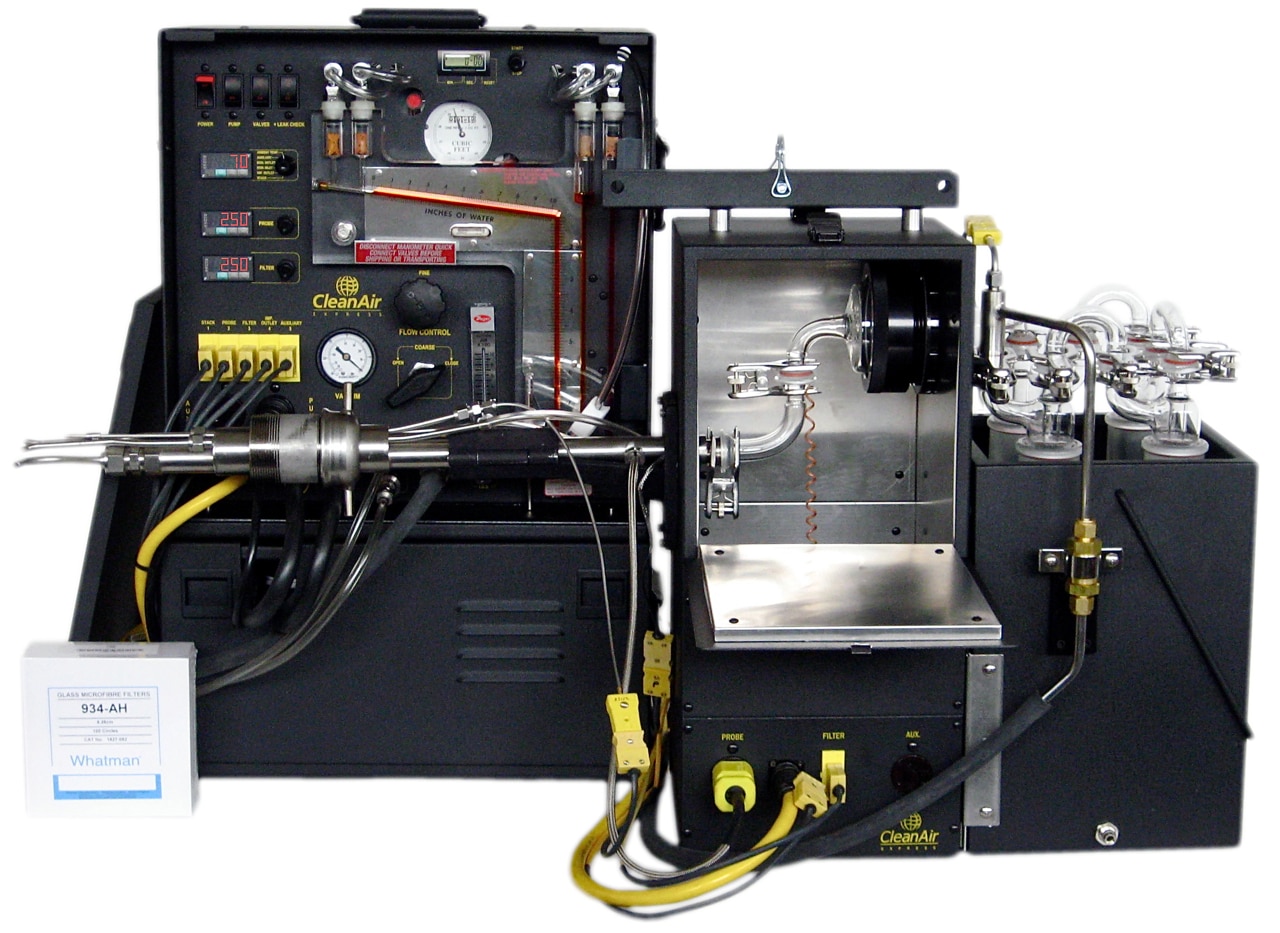

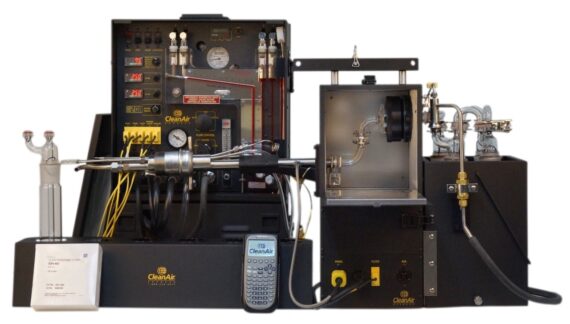

CleanAir Method 5 Isokinetic Train

CleanAir Method 5 Isokinetic Train

$0.00

The CleanAir Method 5 Isokinetic Train is the benchmark of the industry. It is suited to perform isokinetic particulate testing Referencing Federal EPA 40 CFR 60, Appendix A, Method 5 -“Determination of Particulate Emissions From Stationary Sources.” Other pollutants can be collected in the impinger portion of the system, providing the proper reagent is utilized.

The CleanAir Method 5 Isokinetic Train is the benchmark of the industry. It is suited to perform isokinetic particulate testing Referencing Federal EPA 40 CFR 60, Appendix A, Method 5 -“Determination of Particulate Emissions From Stationary Sources.” Other pollutants can be collected in the impinger portion of the system, providing the proper reagent is utilized. A Method 5 Train is the basic equipment for several EPA Reference Methods. Ask your CleanAir Customer Service Representative for details on the accessories needed to perform Methods 4, 5, 6, 8, 8A, 5I, 17, 23, 26, and 29. For more information on this method, visit the EPA’s Methods web page. For vertical or hard-to-access sampling, consider our CATECO Method 5 Sampling Train.

Please note: Online pricing is an estimate only and for purchases in the United States only.  To place your order, please contact us by phone at (847) 654-4606 or email us at express@cleanair.com.

Specifications

  • Power Requirement: 120V and 220V configurations in stock
  • Thermocouple Connections: Type K
  • Cabinets: Welded Aluminum Detachable/Stackable Meter and Pump
  • Temperature Controllers: Solid State with 6 Channel Selector
  • Approximate Shipping Weight: 4-5 Boxes total weight 250 lbs.
  • Method 5 Train Layout

Included Components

Part Number Description
0028 Isokinetic Control Console with Pump
0032 Sample Oven Compartment
0033 Impinger Compartment
05003B or 05003 3″ Ball Joint or Ball Joint O-Ring Glassware Set
0034 Stainless Steel Impinger Outlet
036050QC 50′ Umbilical Cable with Stainless Steel Quick Connects
0106BS 6′ Stainless Steel Heated Method 5 Probe with liner and Geometric Calibration Report
0140 Stainless Steel Probe Port Adaptor Seal Assembly
0400NS Stainless Steel Nozzles Set (1/8″, 3/16″, 1/4″, 5/16″, 3/8″, and 1/2″) with Nuts and Ferrules
0156 Sample Recovery Kit
0621.26 8.26 cm Glass Fiber Filters (Box of 100)
0006 TI-89 Programmed Calculator

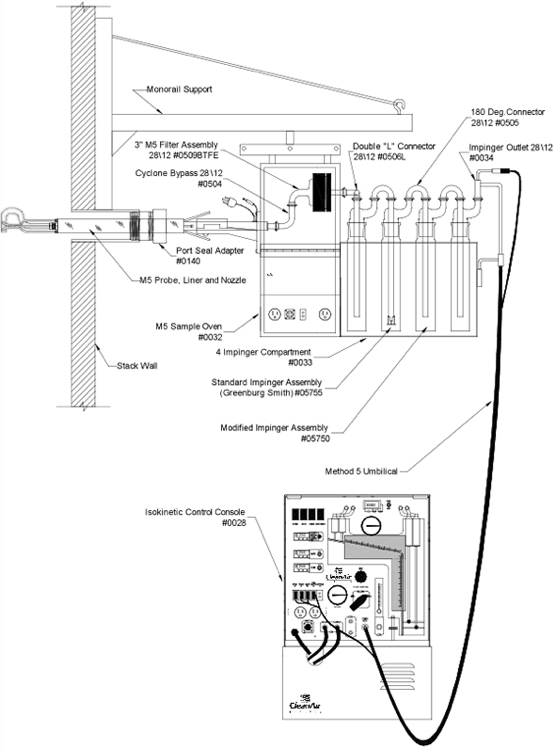

Documents Tab Diagram Icon Diagram: CleanAir Method 5 Train Layout JPG
