Cateco Method 5 Sampling Train

Cateco Method 5 Sampling Train




Cateco Method 5 Sampling Train

Cateco Method 5 Sampling Train

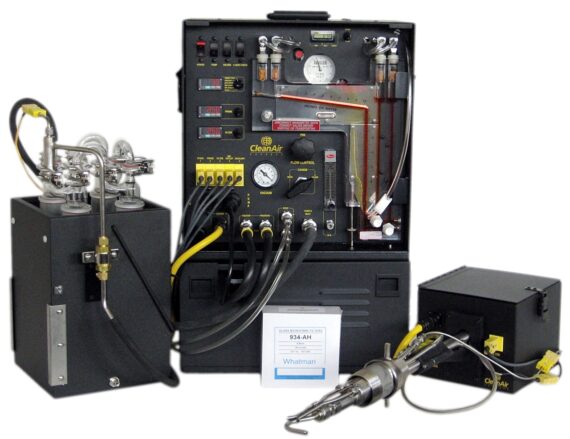

The Method 5 Cateco Sampling Train is similar to the Method 5 train except that it replaces the Modular Sample Unit with a more versatile Cateco Heated Filter Unit. Separating the probe and heated filter from the glassware makes this train ideal for testing vertical and hard to access locations. The Clean Air Cateco Method 5 Train is suited to perform isokinetic particulate testing Referencing Federal EPA 40 CFR 60, Appendix A, Method 5 -“Determination of Particulate Emissions From Stationary Sources.” Other pollutants can be collected in the impinger portion of the system providing the proper reagent is utilized. Many components of the Cateco Method 5 Train are also basic equipment for several other EPA Reference Methods. Ask your Clean Air Express customer Service Representative for details about the accessories needed to perform Methods 4, 5, 6, 8, 8A, 5I, 17, 23, 26, and 29. For more information on this method, please visit the EPA’s CFR 40 website.

Part Number

  • Power Requirement: 120V and 220V configurations in stock
  • Thermocouple Connections: Type K
  • Cabinets: Welded Aluminum Detachable/Stackable Meter and Pump
  • Temperature Controllers: Solid State with 6 Channel Selector
  • Approximate Shipping Weight: 4-5 Boxes total weight 250 lbs.
  • Method 5 Train Components also Available Separately
  • Cateco Method 5 Train Layout
  • US Price List Only
  • * Filter for Cateco Train Sold Separately #0037

*Note: Train Purchase Online can only be purchased in the United States.  If ordering outside the United States please contact us by phone at (847)-654-4606 or email us at express@cleanair.com.

Method 5 Sampling Train Includes:
Part Number
Isokinetic Control Console with Pump
Cateco Heated Sample Oven Compartment
Impinger Compartment
3″ Cateco Ball Joint or Ball Joint O-Ring Glassware Set
Stainless Steel Impinger Outlet
50′ Umbilical Cable with Stainless Steel Quick Connects
10′ Cateco Extension
6′ Stainless Steel Heated Method 5 Probe with liner and Geometric Calibration Report
Stainless Steel Probe Port Adaptor Seal Assembly
Complete Set of Stainless Steel Nozzles (1/8″, 3/16″, 1/4″, 5/16″, 3/8″, and 1/2″) with Nuts and Ferrules
Sample Recovery Kit
8.26 cm Glass Fiber Filters (Box of 100)
Weight113.398093 kg
Dimensions48 × 48 × 48 cm

120 volt, 240 Volt

Umbilical Length

100', 25', 50'

Probe Length (Effective)

10', 2', 4', 6', 8'

Buy or Rent

Buy, Rent
