Method 5 Heated Sampling Probe

$679.25 – $2,883.54

Clear

Add to Quote
SKU:
0104BP
Categories:
, , ,
Tag:
Share:

No additional documents available for this product

Method 5 Heated Sampling Probes

Clean Air Express EPA Method 5 Heated Sampling Probes feature a unique sheathed design that allows quick and easy replacement of pitot, stack thermocouple, and liner. Geometric calibration of pitot is included: wind tunnel calibration is also an option.

Method 5 Probes can be configured in the following configurations:

  • Standard Method 5 Probe with Silicone Heater
  • High Temperature Method 5 Probe with Cable Heater
  • Water-Cooled Method 5 Probe with Silicone Heater
  • High Velocity High temperature Method 5 Probe with Cable Heater

Standard Method 5 Probe

Method 5 Heated Sampling Probes

  • Heated Liner – 28/12 ball joint o-ring, 14/35 male taper or 5/8″ chamfered end.
  • Liner material – (P) Pyrex (Q) Quartz (S) 316 stainless steel (I) Inconel (T) Titanium
  • Type K probe liner thermocouple with standard male plug
  • Type K stack thermocouple with standard male plug
  • Type “S” pitot
  • Service/Calibration
  • Power Requirement: 120V AC or 220V configurations are available.
  • *Note: Standard probes use a flexible silicone heater (Max temp. 450 deg. F).Optional high temperature heaters are available.
  • *Note: Lengths below indicate effective length. To determine overall length, add 12″. Custom probe lengths and materials are available. Please specify liner material when ordering

High Temperature Method 5 Probe

Method 5 Heated Sampling Probes

  • High temperature testing to 800° F
  • Solid, stainless steel HT cable heater
  • Sheathed liner & components
  • Pyrex, quartz, SS Inconel & Hastelloy liners available

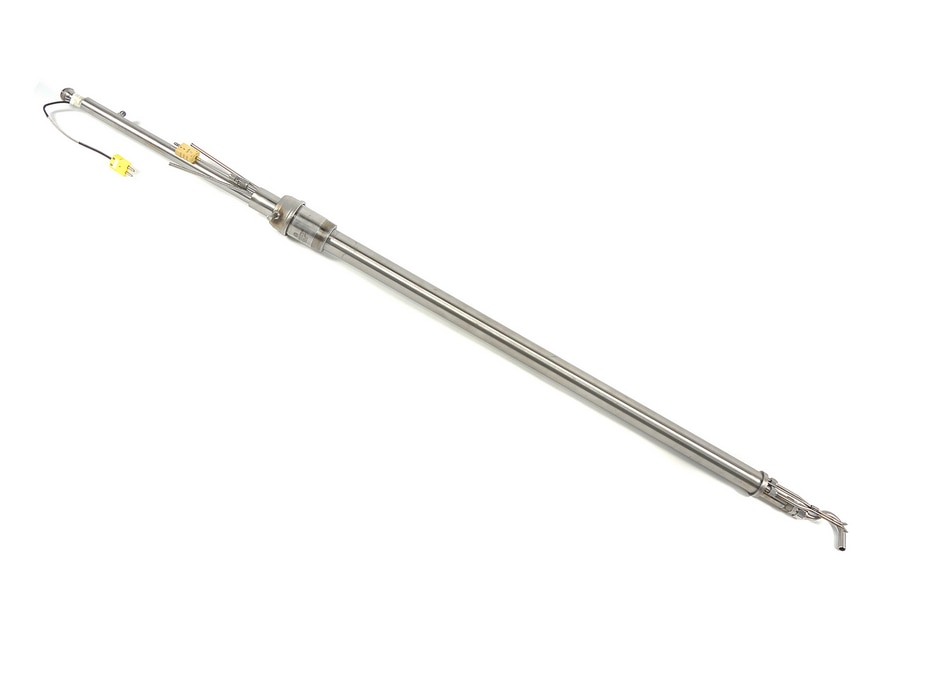

HV/HT Method 5 Probe

high velocity high temperature sample probe

  • Includes safety stop ring for positive or negative pressure
  • Available with or without HT SS cable heater
  • Sheathed liner & components
  • Pyrex, Quartz, SS, Inconel, & Hastelloy liners available

 H2O Cooled Probe

water cooled sample probe

  • High-temperature testing to 1,850° F
  • Inconel removable liner, pitot tubes and thermocouple
  • Available quartz, hastelloy or titanium liners
  • Chamfered, 28/12 ball joint and tapered liner connections
With 28/12 Ball Joint 5/8″ Chamfered End Liner
Liner Material
Item
(P), (Q), (S), (I), (T)
4′ M-5 Probe
(P), (Q), (S), (I), (T)
6′ M-5 Probe
(P), (Q), (S), (I), (T)
8′ M-5 Probe
(P), (Q), (S), (I), (T)
10′ M-5 Probe
With 28/12 Ball Joint/ 14/35 Male Tapered End Liner
Liner Material
Item
(P), (Q), (S), (I), (T)
4′ M-5 Probe
(P), (Q), (S), (I), (T)
6′ M-5 Probe
(P), (Q), (S), (I), (T)
8′ M-5 Probe
(P), (Q), (S), (I), (T)
10′ M-5 Probe
With 28/12 Ball Joint O-Ring / 5/8″ Chamfered End Liner
Liner Material
Item
(P), (Q), (S), (I), (T)
4′ M-5 Probe
(P), (Q), (S), (I), (T)
6′ M-5 Probe
(P), (Q), (S), (I), (T)
8′ M-5 Probe
(P), (Q), (S), (I), (T)
10′ M-5 Probe
With 28/12″ Ball Joint O-ring/ 14/35 Male Tapered End Liner
Liner Material
Item
(P), (Q), (S), (I), (T)
4′ M-5 Probe
(P), (Q), (S), (I), (T)
6′ M-5 Probe
(P), (Q), (S), (I), (T)
8′ M-5 Probe
(P), (Q), (S), (I), (T)
10′ M-5 Probe
With 5/8″ Chamfered End/ 14/35 Male Tapered End liner
Liner Material
Item
(P), (Q), (S), (I), (T)
4′ M-5 Probe
(P), (Q), (S), (I), (T)
6′ M-5 Probe
(P), (Q), (S), (I), (T)
8′ M-5 Probe
(P), (Q), (S), (I), (T)
10′ M-5 Probe
Weight9.071847 kg
Dimensions5 × 99 × 7 cm
Buy or Rent

Buy, Rent

Probe Configuration

High Temperature Heated Sampling Probe, High Velocity/High Temperature Heated Sampling Probe, Standard Heated Sampling Probe, Water-Cooled Heated Sampling Probe

Length/FT (Effective)

1', 10', 11', 12', 13', 14', 15', 16', 17', 18', 19', 2', 20', 3', 4', 5', 6', 7', 8', 9'

Liner Connection/Material

Inconel 28/12 Ball Joint O-Ring 5/8" Chamfered End, None- No Liner Included, Pyrex 28/12 Ball Joint O-Ring 14/35 Male Tapered End, Pyrex 28/12 Ball Joint O-Ring 5/8" Chamfered End, Quartz 28/12 Ball Joint O-Ring 14/35 Male Tapered End, Quartz 28/12 Ball Joint O-Ring 5/8" Chamfered End, Stainless Steel 28/12 Ball Joint O-Ring 5/8" Chamfered End, Titanium 28/12 Ball Joint O-Ring 5/8" Chamfered End

Voltage Requirements

120 Volt, 240 Volt

Calibration

Geometric Pitot Calibration (Usually ships in 24 hours), Wind Tunnel and Geometric Pitot Calibration (~2 weeks)

Crate Fee

Local Pickup, Shipping
