Method 5 Isokinetic Sampling Nozzle

Method 5 Isokinetic Sampling Nozzle

$42.00$200.00

SKU:
PB125

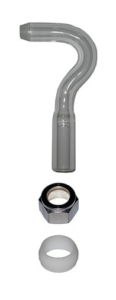

CleanAir Method 5 Individual Isokinetic Sampling Nozzles are available in Pyrex, Quartz, Stainless Steel, and Inconel. When using quartz or Pyrex nozzles, we suggest using Teflon unions.

Complete nozzle sets are also available for purchase.

Nozzles are available in the following materials:

Pyrex(PB)
Quartz (QB)
316 Stainless Steel (SB)
Inconel (IB)
Female Tapered Pyrex 14/20 (PT20)
Female Tapered Pyrex 14/35 (PT35)
Female Tapered Quartz 14/20 (QT20)
Female Tapered Quartz 14/35 (QT35)

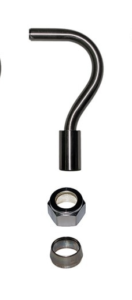

* Stainless Steel and Inconel Alloy 600 Nozzles include Nut and Ferrule.



Standard Individual Size/Material Nozzle Options
 Material
Nozzle Size
  • PB – Borosilicate Glass with 5/8″ Shank (max temp. 900°F or 480°C)
  • PT20 – Bororsilicate Glass with 14/20 Female Taper (max temp. 900°F or 480°C)

  • PT35 – Borosilicate Glass with 14/35 Female Taper (max temp. 900°F or 480°C)

  • QB – Glass Quartz with 5/8″ Shank (max temp. 1650°F or 900°C)

  • QT20 – Glass Quartz with 14/20 Female Taper (max temp. 1650°F or 900°C)

  • QT35 – Glass Quartz with 14/35 Female Taper (max temp. 1650°F or 900°C)

  • SB  Stainless Steel with 5/8″ Shank (max temp. 1200°F or 650°C)

  • IB – Inconel Alloy 600 with 5/8″ Shank (max temp 1600°F or 871°C)

125 – (1/8″)
156 – (5/32″)
187 – (3/16″)
218– (7/32″)
250 – (1/4″)
281 – (9/32″)
312 – (5/16″)
343 – (11/32″)
375 – (3/8″)
406 – (13/32″)
 437 – (7/16″)
 468 – (15/32″)
 500 – (1/2″)
531 – (17/32″)
562 – (9/16″)
