CleanAir Method 202 Sampling Train

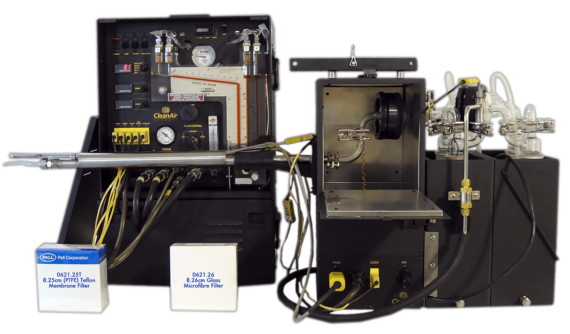

CleanAir Method 202 Sampling Train



The CleanAir Method 202 Sampling Train is used to measure the levels of condensable particulate matter (CPM) from a stationary source of emission. It is often used in series with test methods that measure filterable particulate matter (FPM), such as method 5, 17, or 201A. These methods remove the FPM before the sample reaches the method 202 train, where it is then collected in the dry impingers and on the out-of-stack CPM filter. There are specific material and operational requirements that need to be met when performing method 202 testing, therefore it is important to consult the EPA method found at 40 CFR Part 51 prior to testing.

Part Number: 0100-202

Method 202 Sampling Train Specifications

    • Power Requirement: 120V and 220V configurations in stock
    • Thermocouple Connections: Type K
    • Cabinets: Welded Aluminum Detachable/Stackable Meter and Pump
    • Temperature Controllers: Solid State with 6 Channel Selector
    • Approximate Shipping Weight: 4-5 Boxes total weight 250 lbs.
    • Method 202 Train Components also Available Separately

Method 202 Sampling Train Includes

Part Number Item
0028 Isokinetic Control Console with Pump
0032 Sample Oven Compartment
0030202 Method 202 Impinger Compartment
05003B202 Method 202 3″ Ball Joint O-Ring Glassware Set
0034 Stainless Steel Impinger Outlet
036050QC 50′ Umbilical Cable with Stainless Steel Quick Connects
0106BS 6′ Stainless Steel Heated Method 5 Probe with liner and Geometric Calibration Report
0140 Stainless Steel Probe Port Adapter Seal Assembly
0400NS Complete Set of Stainless Steel Nozzles (1/8″, 3/16″, 1/4″, 5/16″, 3/8″, and 1/2″) with Nuts and Ferrules
0156 Sample Recovery Kit
0620T202 47mm PTFE Membrane Filters
9900 Submersible Pump

Method 202 Train Layout
