Silicone Rubber Tubing
$28.00 – $279.50

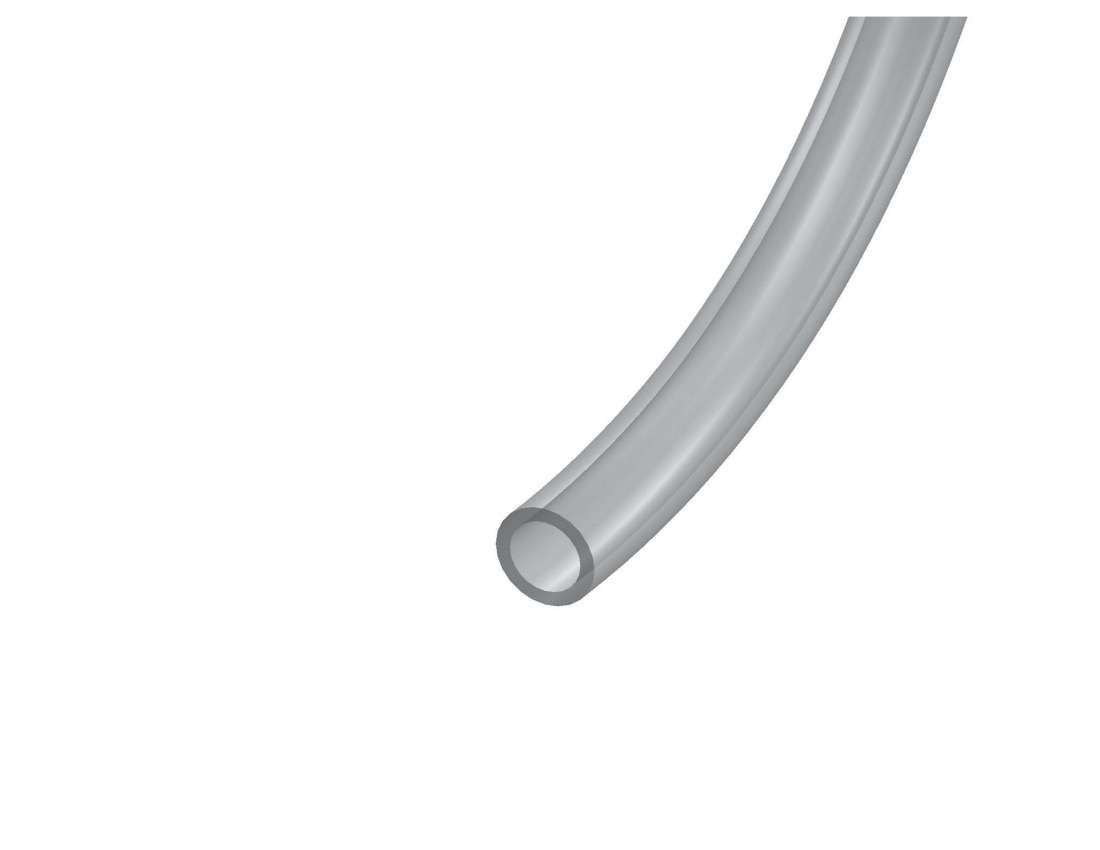

NSF 51 High Temperature White Silicone Rubber Tubing
 Clean Air Engineering stocks a variety sizes of high temperature silicone rubber tubing. The silicone tubing has the flexiblity of soft tubing while being able to be used in high temperature environments.
|
High-Temperature Silicone Rubber Tubing- NSF 51 Soft | |||||
Part Number | ID | OD | Wall | Bend Radius | Max PSI @ 72°F |
1126 | 1/4″ | 3/8″ | 1/16″ | 3/8″ | 5 |
11261 | 1/16″ | 1/8″ | 1/32″ | 1/8″ | 10 |
11262 | 3/32″ | 7/32″ | 1/16″ | 7/32″ | 15 |
11263 | 1/8″ | 1/4″ | 1/16″ | 1/4″ | 20 |
11264 | 3/16″ | 5/16″ | 1/16″ | 5/16″ | 20 |
11265 | 3/16″ | 7/16″ | 1/8″ | 7/16″ | 15 |
11266 | 5/16″ | 7/16″ | 1/16″ | 7/16″ | 10 |
11267 | 3/8″ | 1/2″ | 1/16″ | 1/2″ | 10 |
11268 | 1/2″ | 11/16″ | 3/32″ | 11/16″ | 5 |
11269 | 1/2″ | 3/4″ | 1/8″ | 3/4″ | 10 |
Other Tubing Clean Air Offers: | |||||
| Weight | 1.814369 lbs |
|---|---|
| Dimensions | 22 × 22 × 6 in |
| Silicone Rubber Size | 1126- 25 Ft. 3/8" O.D., 1/4" I.D., 1/16" Wall, 11261- 25 Ft. 1/8" O.D., 1/16" I.D., 1/32" Wall, 11262- 25 Ft. 7/32" O.D., 3/32" I.D., 1/16" Wall, 11263- 25 Ft. 1/4" O.D., 1/8" I.D., 1/16" Wall, 11264- 25 Ft. 5/16" O.D., 3/16" I.D., 1/16" Wall, 11265- 25 Ft. 7/16" O.D., 3/16" I.D., 1/8" Wall, 11266- 25 Ft. 7/16" O.D., 5/16" I.D., 1/16" Wall, 11267- 25 Ft. 1/2" O.D., 3/8" I.D., 1/16" Wall, 11268- 25 Ft. 11/16" O.D., 1/2" I.D., 3/32" Wall, 11269- 25 Ft. 3/4" O.D., 1/2" I.D., 1/8" Wall |
No additional documents available for this product
