PTFE Tubing

$25.00$762.50

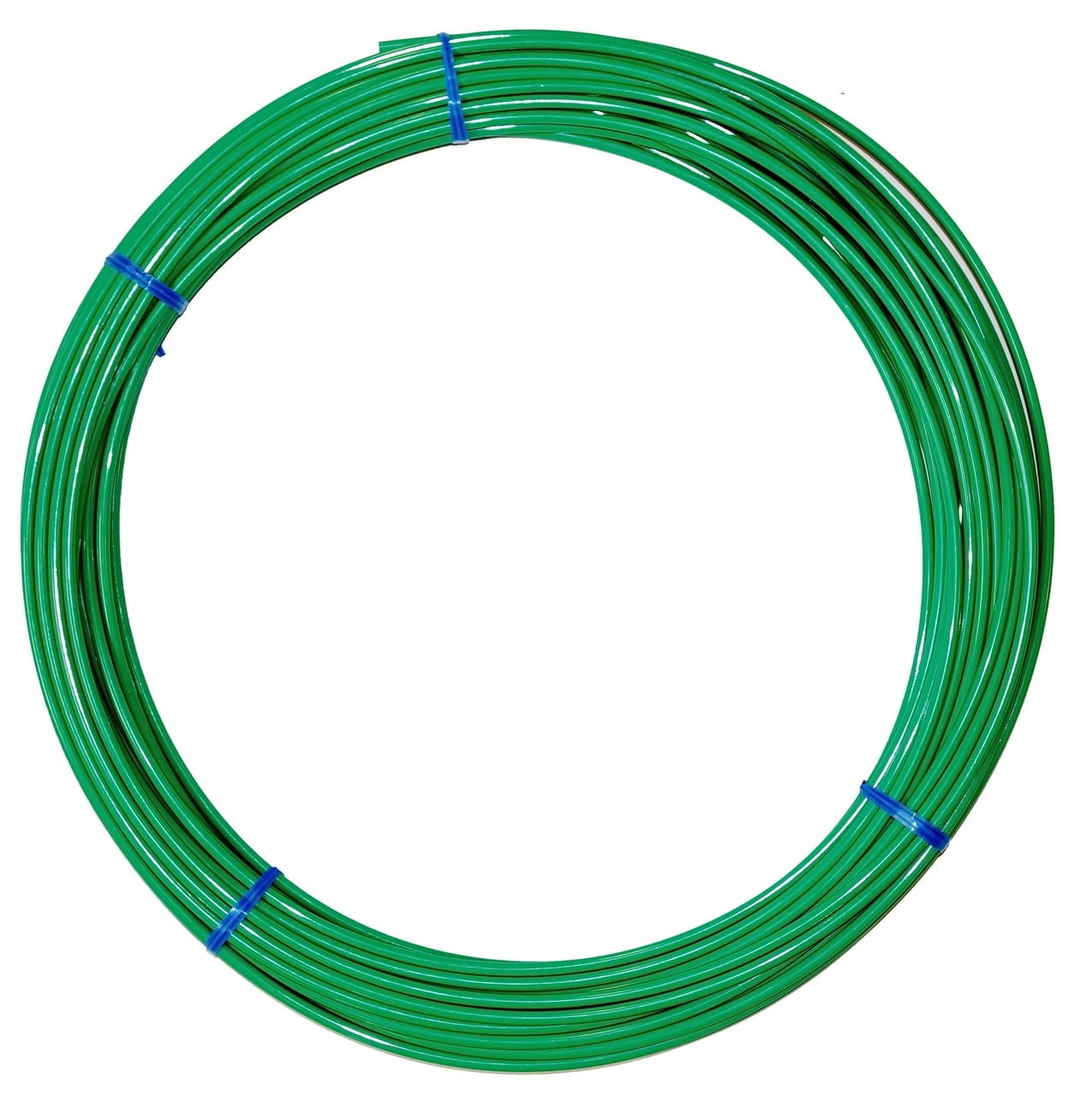

PTFE Tubing is the preferred tubing for emissions measurement below 500° F. Heavy-wall polytetraflouroethylene is flexible and resistant to crimping and blockage. Available in a variety of diameters and lengths. Quarter-Inch (1/4″ O.D.) tubing is stocked in the following colors: Black, Blue, Gray, Green, Orange, Natural (White), Red and Yellow. Call for additional options.

SKU:
769250

PTFE Tubing is the preferred tubing for emissions measurement below 500° F. Heavy-wall polytetraflouroethylene is flexible and resistant to crimping and blockage. Available in a variety of diameters and lengths. Quarter-Inch (1/4″ O.D.) tubing is stocked in the following colors: Black, Blue, Gray, Green, Orange, Natural (White), Red and Yellow. Call for additional options.

CleanAir Engineering’s PTFE tubing is weather- and UV-resistant. Independent testing on samples exposed to a wide range of climatic conditions and prolonged ultraviolet exposure confirm these properties of fluoropolymer tubing. Highly inert, high chemical resistance, where applications demand complete dependability in extreme weather conditions.

Tube OD
Tube ID
Tube Wall
Part Number
Color
Bend Radius **
1/8″
1/16″
~0.031
0769125
Natural (White)
<0.3″
1/8″
1/16″
~0.031
07691252 (250ft.)
Natural (White)
<0.3″
1/4″
1/8″
~0.062
0769250
Natural (White)
<0.5″
1/4″
1/8″
~0.062
0769250-[COLOR]
Specify *
<0.5″
1/4″
1/8″
~0.062
07692502 (250ft.)
Natural (White)
<0.5″
3/8″
1/4″
~0.062
0769375
Natural (White)
<1.0″
3/8″
1/4″
~0.062
07693752 (250ft.)
Natural (White)
<1.0″
1/2″
3/8″
~0.062
0769500
Natural (White)
<2.0″
5/8″
1/2″
~0.062
0769625
Natural (White)
<4.0″

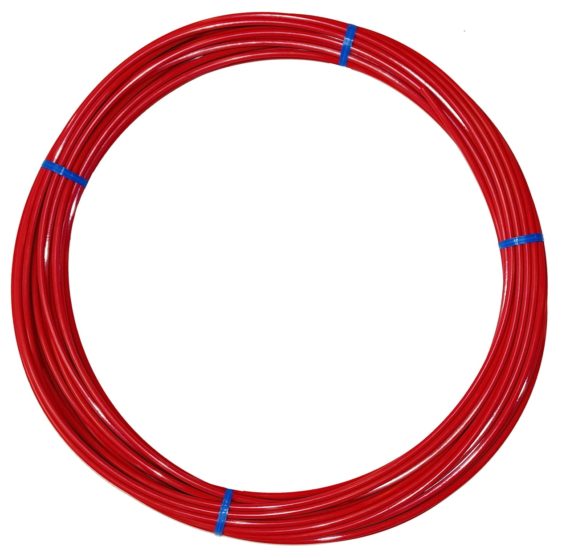

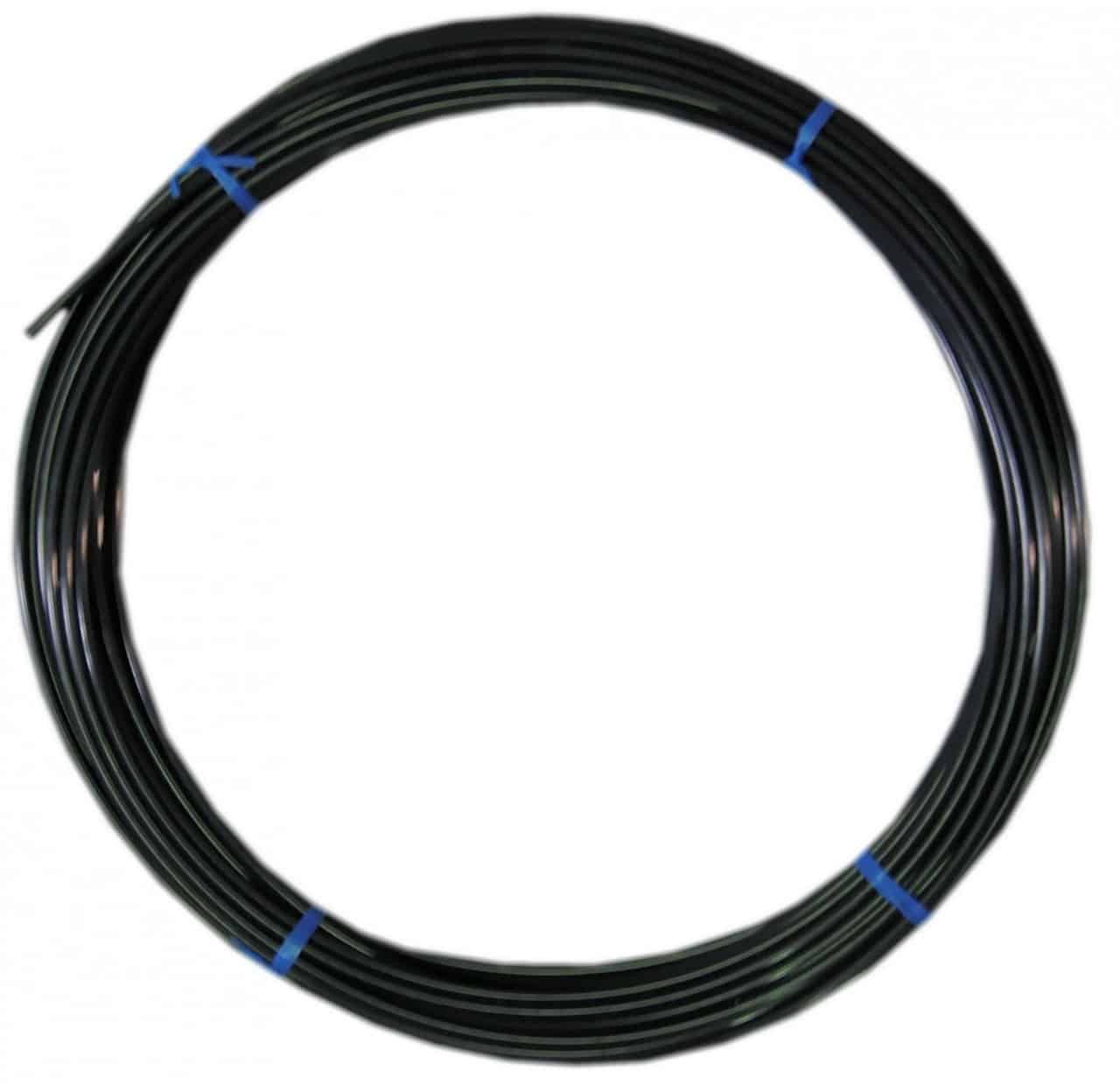

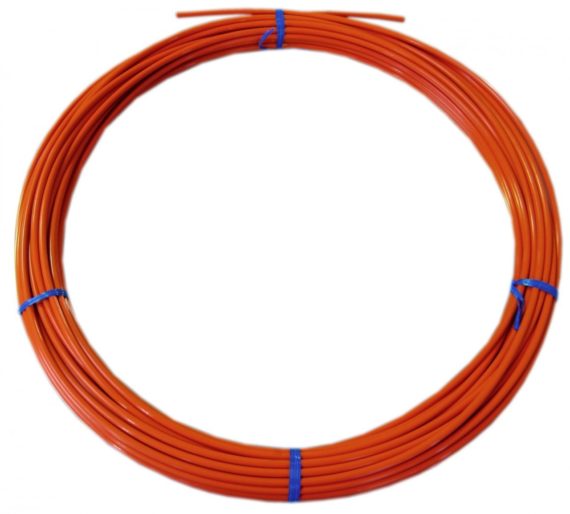

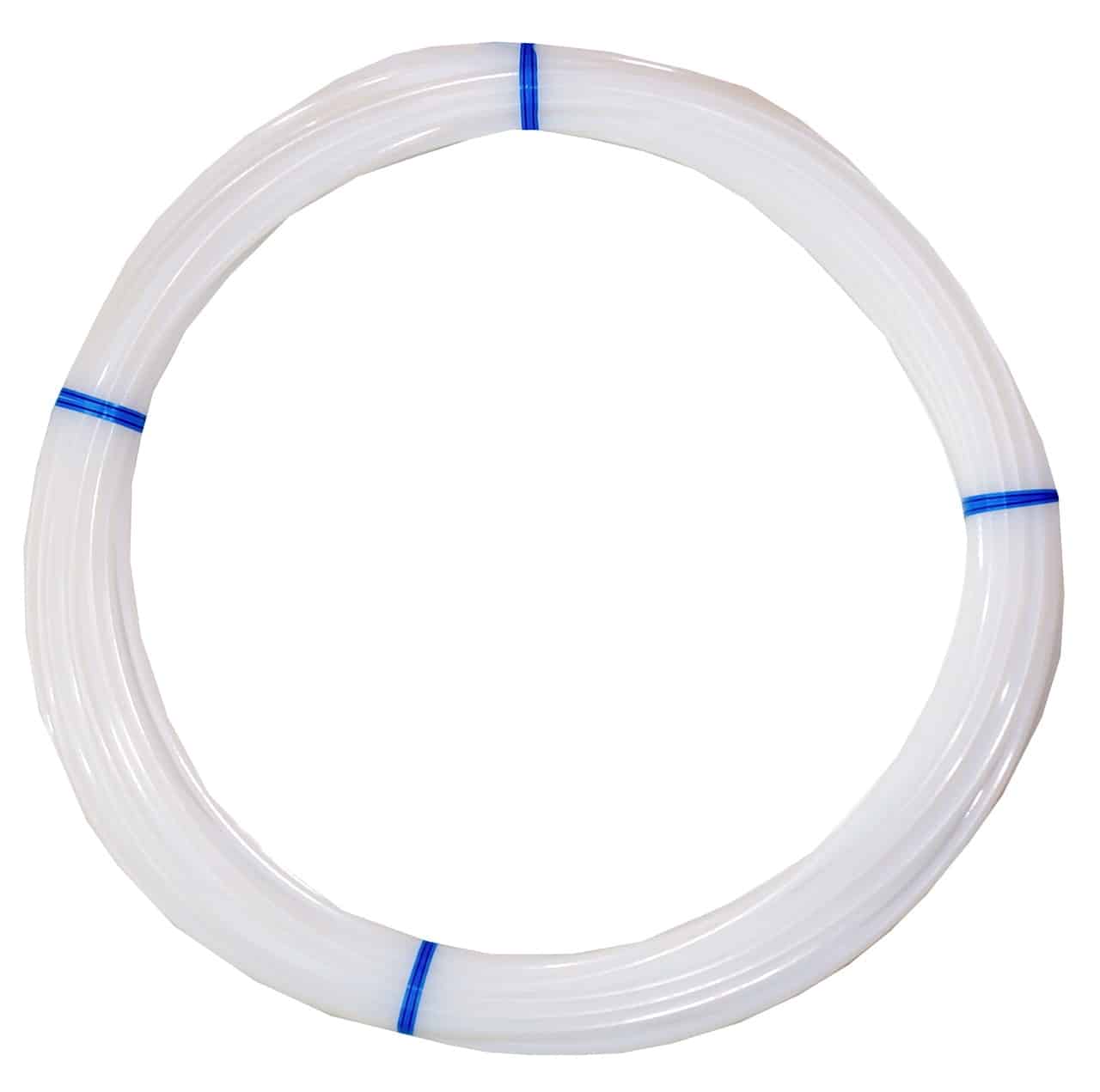

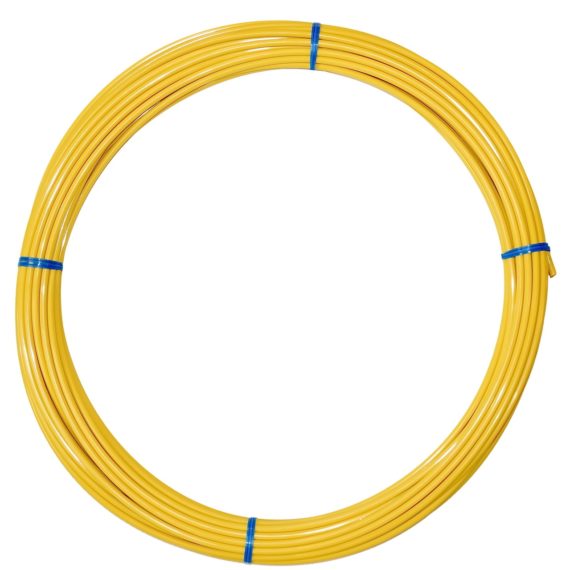

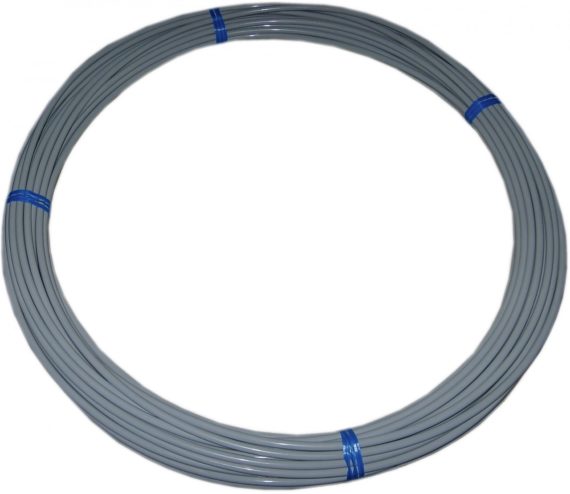

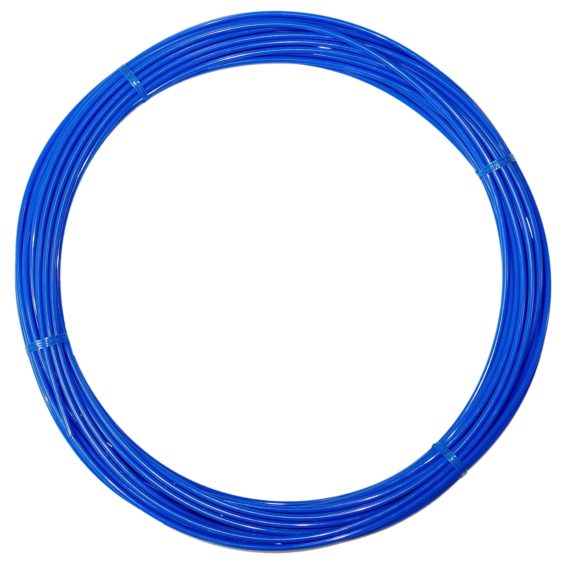

* In-Stock 1/4″ Tubing Colors: Black, Blue, Gray, Green, Orange, Natural (White), Red and Yellow.
** Bend radius is for room temperature bends. Heating tube to soft point prior to bending is best for permanent bends.

Ordering Notes

  • 1/8″, 3/8″, 1/2″ and 5/8″ Tubing available in Natural (White) color only
  • Continuous lengths over 100 feet for sizes 1/2″ and 5/8″ ship appx. 4 weeks after order
  • Continuous lengths of 250 ft are now available and in stock: 1/8″, 1/4″ and 3/8″
  • For burst pressure values, see our Tubing Theoretical Burst Pressure Chart
  • Custom colors and sizes available

PTFE Tubing Applications

  • Automotive: Pure Fluid/Air Systems
  • Chemical: Laboratory, chemicals, corrosives
  • Electrical: Wire Insulation
  • Medical: High purity transfer lines
  • Other: Water transfer/sampling, food and beverage
