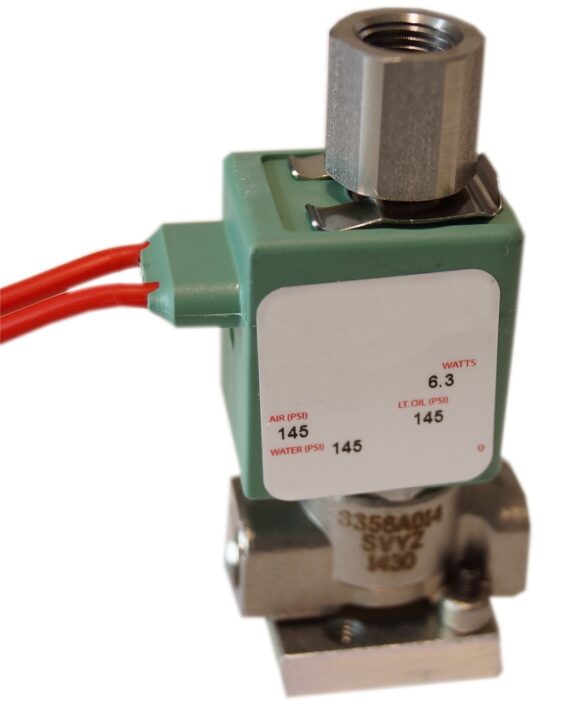

3 Way Normally Closed Solenoid Valves

3 Way Normally Closed Solenoid ValvesWe stock 120 VAC and 240 VAC three way normally closed solenoid valves. We currently use three solenoids per Method 5 Isokinetic Control Console. *The solenoid standoff bracket is needed to mount on our faceplate. Solenoid Valves can be found in: Method 5 Isokinetic Control Console

Solenoid Valves Specifications:

  • Pipe Size: 1/8″ NPT
  • Orifice Size: 1/16″
  • Max Fluid Temp: 180°F

Part Number
Description
Voltage
9127ASSY
Stainless Steel norm/close 3-way 125 psi Assembly
120 VAC
91271ASSY
Stainless Steel norm/close 3-way 125 psi Assembly
240 VAC
9127
Stainless Steel norm/close 3-way 125 psi (Body Only)
120 VAC
91271
Stainless Steel norm/close 3-way 125 psi (Body Only)
240 VAC
9127B
Stainless Steel Solenoid Standoff Bracket for Method 5 Mount
N/A
9759A

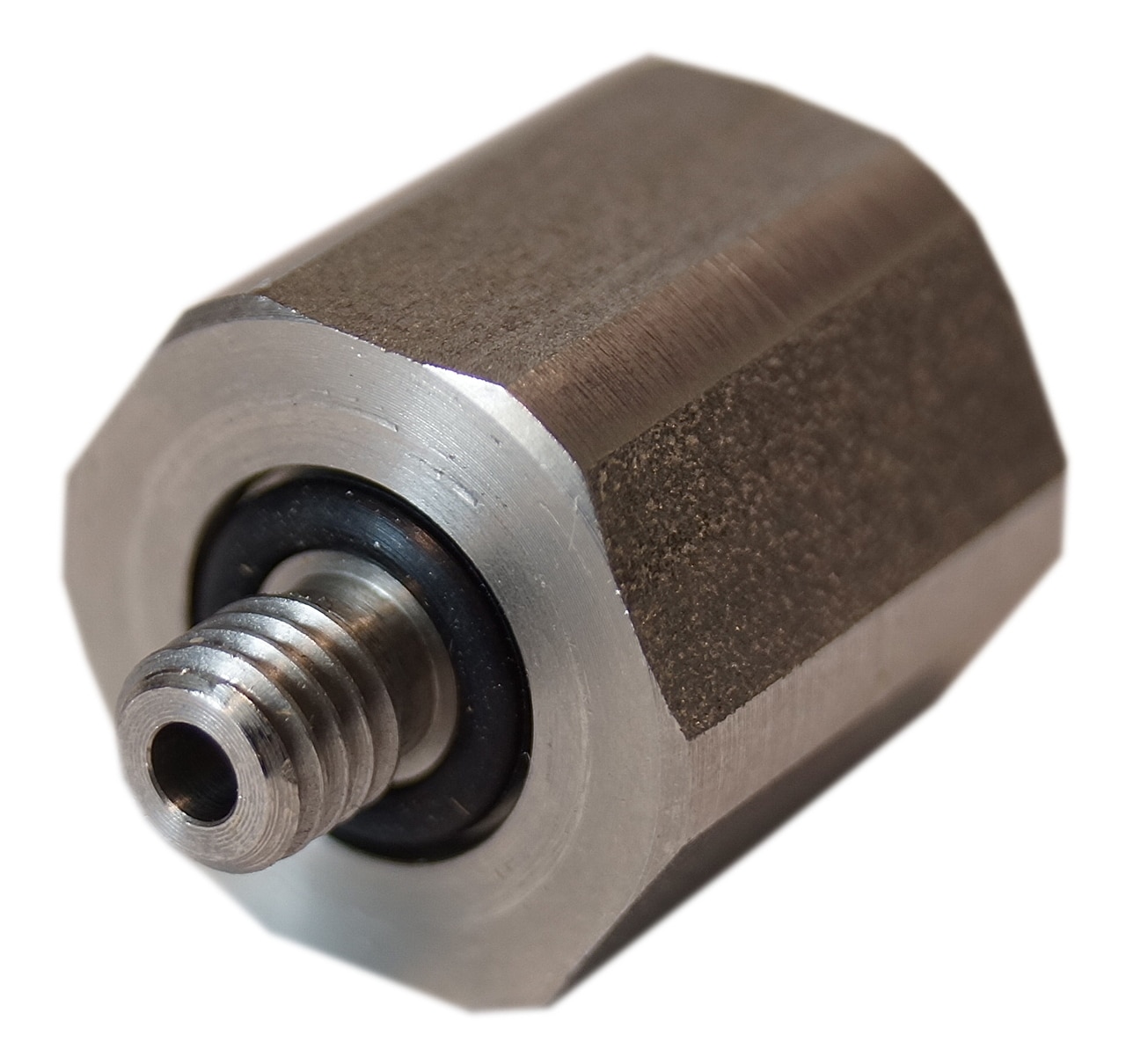

Stainless Steel Solenoid Adapter to 1/8″ NPT
N/A
Weight0.340194 lbs
Dimensions9 × 9 × 1 in
Voltage

120 volt, 240 Volt, N/A

Solenoid Option

Adapter, Assembly, Body Only, Bracket
