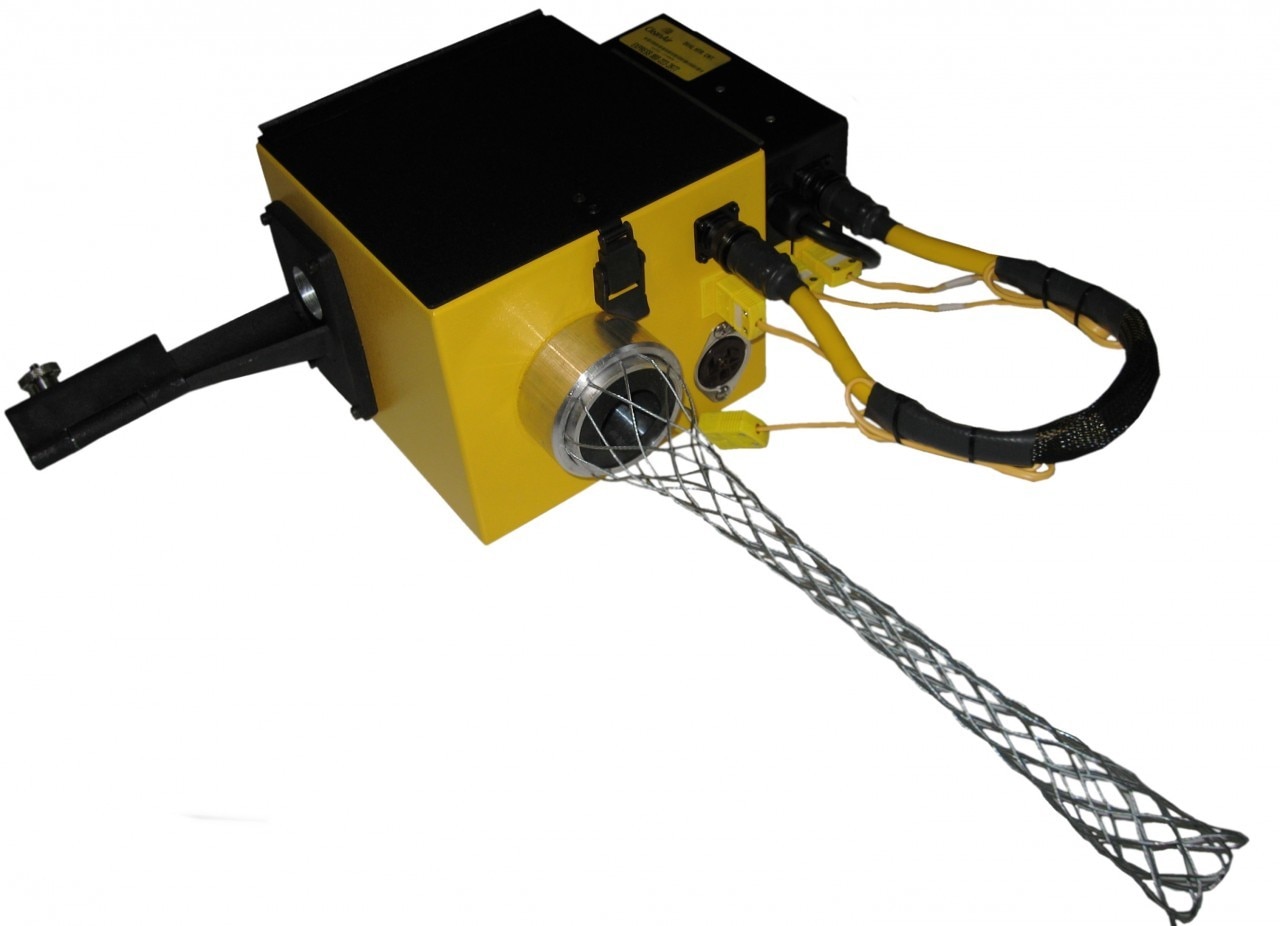

The CleanAir Cateco CEM Heated Filter Unit has a double-wall aluminum constructed heated filter unit is an excellent choice for CEM applications that require heated filters or valves. The case is extremely lightweight and durable, and heats quickly with its small heating area. The probe is mounted through an aluminum arm identical to those used on the Modular Sample Unit. A strain relief is provided for a stable heated sample line connection. Electrical connections are compatible with those used in the industry. An optional quick mount dual heater controller (#0035C) is available to control probe and box heaters.
|
|
|
- 0035A – Cateco CEM Control Umbilical
- 0035B – Cateco CEM Heated Filter Unit
- 0035C – Dual Heater Controller
|
Part Number
|

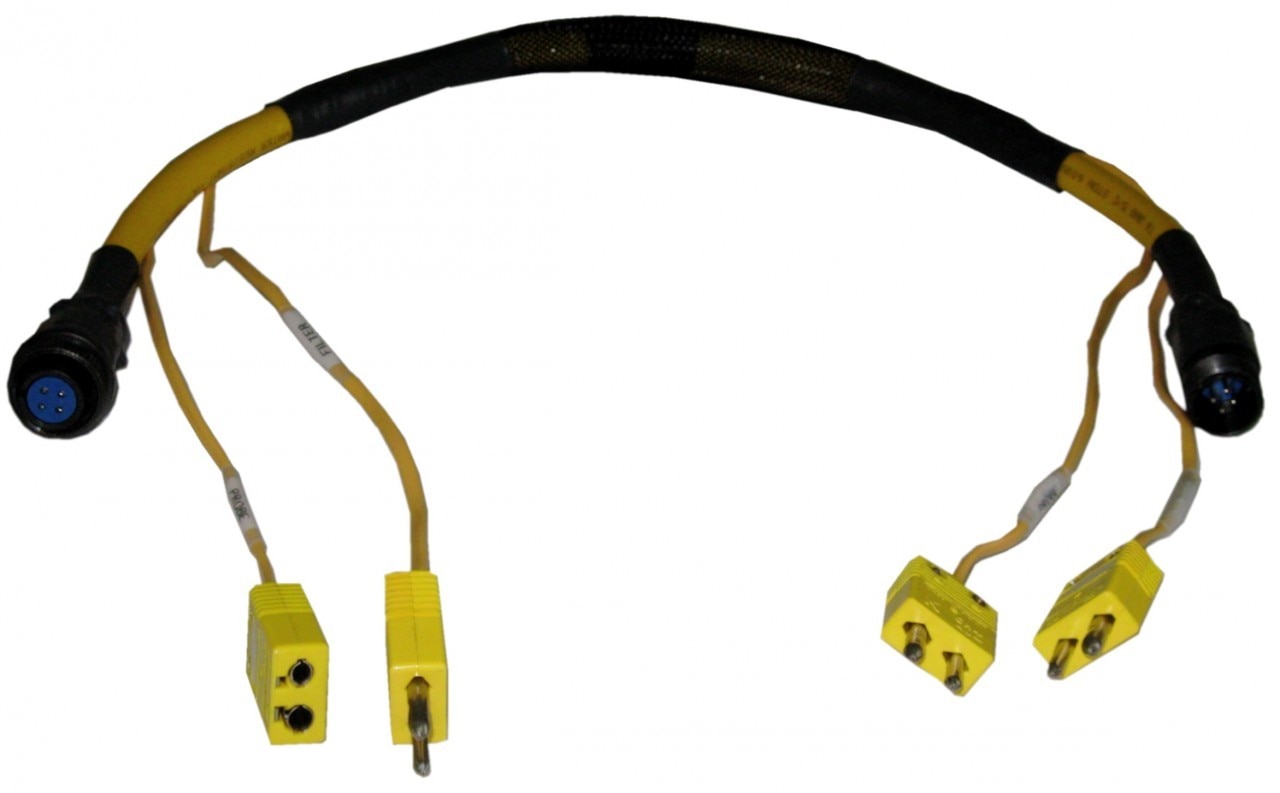

0035RNT Cateco CEM Assembly
|
|
- Umbilical Power Input Connection: Amphenol 4-pin Female/Male
- Auxiliary Power Output Connection: 3 pin 120V receptacle
- Thermocouple Connection: K-Type Plug (0316M x 3 0316F x 1)
- Length: 2 Feet
- Weight: 1 lbs. (0.45 kg)
|
|
Part Number
|
0035A Cateco CEM Control Umbilical
|
|
- Voltage Requirement: 120V
- Power Requirement: 450W
- Umbilical Power Input Connection: Amphenol 4-pin (9412)
- Auxiliary Power Output Connection: 3 pin 120V receptacle
- Thermocouple Connection: K-Type panel mount (0316-SM)
- External Dimensions (h x w x d): 7.5″ x 9.25″ x 6.25″
- Internal Dimensions (h x w x d): 6.25″ x 7.25″ x 7.25″
- Weight: 7 lbs. (3.2 kg)
|
|
Part Number
|
0035B Cateco CEM Heated Filter Unit
|
|
- Voltage Requirement: 120V
- Umbilical Connection: Amphenol 4-pin (9418)
- Temperature Controllers: 1/32 DIN, Fuzzy Logic (91301)
- Thermocouple Connection: K-Type panel mount (0316-SM)
- External Dimensions (h x w x d): 3.15″ x 4.76″ x 7.75″
- Weight: 3 lbs. (1.36 kg)
|
|
Part Number
|
0035C Dual Heater Controller
|
|
- Voltage Requirement: 120V
- Power Requirement: 450W
- Umbilical Power Input Connection: Amphenol 4-pin (9412)
- Auxiliary Power Output Connection: 3 pin 120V receptacle
- Thermocouple Connection: K-Type panel mount (0316-SM)
- External Dimensions (h x w x d): 9.5″ x 10.5″ x 9.5″
- Internal Dimensions (h x w x d): 8.25″ x 9.25″ x 8.75″
- Weight: 12 lbs. (5.4 kg)
|
|
|
Large Cateco CEM Assembly Includes:
|
|
- 0035LC – Large Cateco Cem Heated Filter Unit
- 0035A – Cateco CEM Control Umbilical
- 0035C – Dual Heater Controller
|
Part Number
|
0036 Large Cateco CEM Assembly
|
|

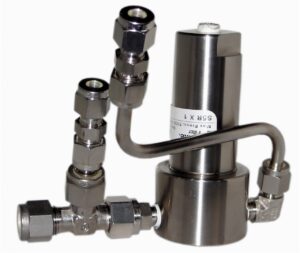

- The cartridge style stainless steel filter holder uses a micro-fiber filter cartridge.
- Inlet/Outlet fittings are 1/4″ stainless steel compression fittings.
- 9975 – Replacement micro fiber filter cartridge.
|
|
Part Number
|
9974ASSY Finite Filter Holder Assembly
|
|
No additional documents available for this product
