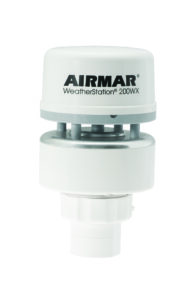

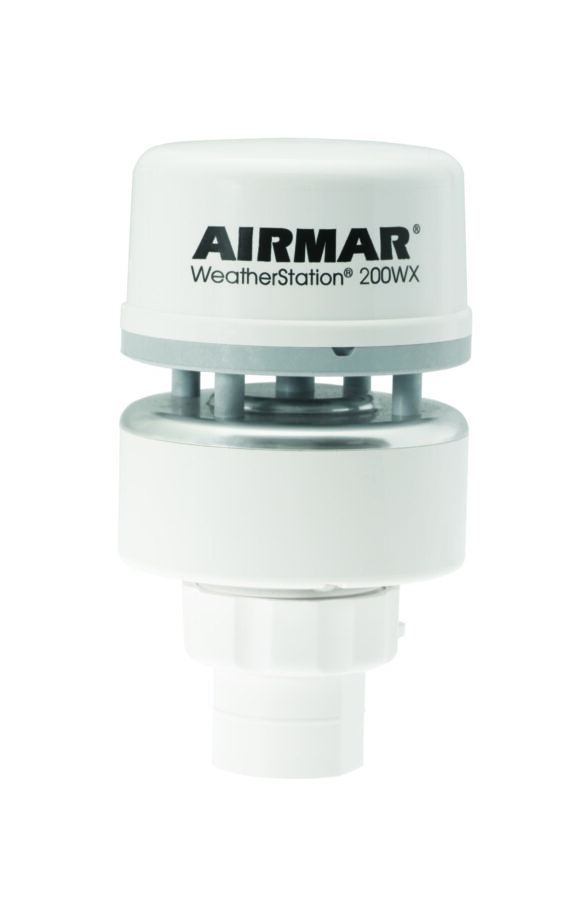

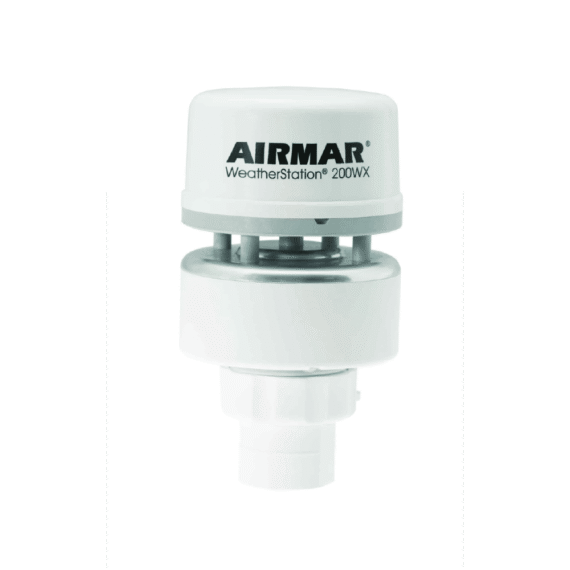

Airmar 200WX WeatherStation

Airmar 200WX WeatherStation

$0.00

The Airmar WeatherStation 200WX is a highly-portable weather monitor designed for mobile applications. Sensor-Rich in a durable, rugged, small IPX6-rated housing. The 200WX can be used on moving platforms such as TV-news, military vehicles, and vehicle-mounted air and gas measurement systems. Equipped with built-in true north and GPS. May be used with Aeroqual Dust Sentry, AQS 1, and AQM ambient air monitoring systems.

The Airmar WeatherStation 200WX is a highly-portable weather monitor designed for mobile applications. Sensor-Rich in a durable, rugged, small IPX6-rated housing. The 200WX can be used on moving platforms such as TV-news, military vehicles, and vehicle-mounted air and gas measurement systems. Equipped with built-in wind speed, wind direction, compass and GPS.

Knowing the dynamic true wind speed and direction is important and often mission-critical. The 200WX calculates the dynamic true wind speed and direction based on the apparent wind, speed of the vehicle, and vehicle heading. Its internal 10 Hz GPS and three-axis electronic compass provide heading, position, speed-over-ground, and course-over-ground functionality that is necessary for dynamic true wind data processing on a moving vehicle.

The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data. The 200WX maintains dynamic compass performance in hilly and mountainous terrain – common in testing situations.

Features

  • Ultrasonic measurement of apparent and dynamic true wind speed and direction
  • Barometric pressure
  • Air and wind chill temperature
  • Relative humidity (field serviceable option)
  • Calculated dew point and heat index
  • GPS position, speed over ground, and course over ground
  • Three-axis, solid-state compass with dynamic stabilization
  • Three-axis rate gyro supplies rate-of–turn data
  • Three-axis accelerometer for best-in-class pitch and roll information
  • Housing IPX6 rated for water-ingress protection
  • Data output via a single cable (various lengths available)
  • NMEA 0183/ASCII serial data protocol over RS-232 interface
  • NMEA 2000 protocol over CAN

Options

  • Relative humidity module
  • Enables dew-point and heat-index calculations
  • Field serviceable
  • WeatherStation housing rated IPX4 when RH module is installed

Specifications

  • Air Temp Accuracy: ±1.1°C at 20°C
  • Air Temp Range: -40 to 80°C (-40 to 176°F)
  • Air Temp Resolution: 0.1°C
  • Apparent Wind Speed Angle: Yes
  • Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
  • Barometric Pressure Range: 300 to 1100 hPa
  • Barometric Pressure Resolution: 0.1 hPa
  • Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
  • Communications Available Hardware Interface: Serial RS-232, Serial RS-422, CAN
  • Communications Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
  • Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
  • GPS Position Accuracy: 3 m (10′) CEP
  • Humidity: Optional
  • Mobile: Yes
  • Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
  • NMEA 2000 LEN: 2
  • Note: Cables sold separately
  • Operating Temp Range: -25 to 55°C (-13 to 131°F)
  • Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
  • Optional RH Range: 0 to 100% RH
  • Optional RH Resolution: 0.1% RH
  • Pitch Roll Accuracy: ±1° in range of ±30°
  • Pitch Roll Measurement Type: MEMS
  • Pitch Roll Range: 50°
  • Pitch Roll Resolution: 0.1°
  • Power Supply Current: <75 mA (<0.9 W) at 12 VDC
  • Power Supply Voltage: 9 to 40 VDC
  • Recommend Use: Marine or Land-Based, Mobile or Stationary
  • Theoretical Wind Speed and Direction: Yes
  • Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
  • Three Axis Compass Range: 0 to 359.9°
  • Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
  • True Wind Speed and Direction: Yes
  • Waterproof Rating: IPX6 (Relative Humidity/IPX4)
  • Weight: 300 g (0.7 lb.)
  • Wind Direction Accuracy: ±3° at 10 m/s
  • Wind Direction Calculations: User-Configurable damping
  • Wind Direction Range: 0° to 359.9°
  • Wind Direction Resolution: 0.1°
  • Wind Speed Accuracy: 5% at 10 m/s at 4 angles
  • Wind Speed Calculations: User configurable damping
  • Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
  • Wind Speed Resolution: 0.1 m/s
