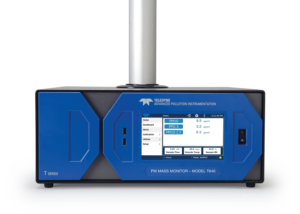

Teledyne API T640x
The Teledyne API T640X is a real-time, continuous particulate matter (PM) mass monitor that uses scattered light spectrometry for measurement of PM 2.5, 10, and coarse PM. Intervals of 1-min or better time resolution with exceptional sensitivity and precision. The instrument is very low maintenance and requires no sample media for minimal cost of operation. Exceeds US EPA PM10 FEM and Class III FEM PM2.5 performance requirements for additive and multiplicative bias compared to FRM samplers.
The Teledyne API T640X is a real-time, continuous particulate matter (PM) mass monitor that uses scattered light spectrometry for measurement of PM 2.5, 10, and coarse PM. Intervals of 1-min or better time resolution with exceptional sensitivity and precision. The instrument is very low maintenance and requires no sample media for minimal cost of operation. Exceeds US EPA PM10 FEM and Class III FEM PM2.5 performance requirements for additive and multiplicative bias compared to FRM samplers.
Advanced color display, capacitive touch screen, intuitive user interface, flexible I/O, and built-in data acquisition capability. All instrument set-up, control and access to stored data and diagnostic information is available through the front panel or via RS232, Ethernet, or USB com ports either locally or by remote connection. Includes NumaView Remote PC software for remote connection with virtual interface and data downloading capability to other analyzers operating NumaView software.
Specifications
| Performance | |
| Measurement Principle | Broadband spectroscopy using 90° white-light scattering with Polychromatic LED |
| Particle size resolution | 256 sizes over 0.18 – 20µm range, combined to 64 channels for mass calculation |
| PM Mass Measurements | PM10, PM2.5 and PM10-2.5 simultaneously; PM1 (optional) |
| PM Mass Resolution Measurement Range | 0.1 – 10,000 µg/m3 |
| Mass Measurement & Display Resolution | 0.1 µg/m3 |
| Precision | ±0.5 ug/m3 (1-hr average) |
| Lower Detectable Limit | <0.1 ug/m3 (1-hr average) |
| Data Rate | 10s to 48hr (user selectable) |
| Mass Concentration Accuracy | Exceeds US EPA PM10 FEM and Class III FEM PM2.5 performance requirements for additive and multiplicative bias compared to FRM samplers |
| Flow Rate | 5.0-lpm sample flow (Standard model); 11.67-lpm optional bypass flow (with option 640x) |
| Flow Accuracy | Within ±1%; (Typically within ±0.5%) |
| Operating Conditions | |
| Operating Temperature | 0 – 50°C, non-condensing |
| Ambient Temperature | -40 – 60°C |
| Ambient Relative Humidity | 0 – 100% |
| Sample Humidity Control | 24VDC, 90W (max) heater controlled to 35% RH |
| Weatherproof enclosure required with 0 – 50°C, non-condensing environmental control | |
| Requires only 10-min warm-up time | |
| Interfaces and Data Storage | |
| T Series analyzer interface with full touch screen display and NumaView™ premium operating software and NumaView™ remote software | |
| 4Gb memory allows for > 1 year of internal data storage | |
| Front Panel USB Ports | 2x type-A Peripheral Ports |
| Ethernet Communication (supports TCP/IP Modbus and HTTP polling protocols) | |
| Electrical | |
| T640 instrument | 100 – 240VAC 50/60Hz, Power consumption < 120W @ 120VAC |
| External pump (for optional bypass flow – option 640x) | 100 – 120VAC 60Hz or 220-240VAC 50/60Hz, Power consumption <360W @ 120VAC |
| Physical Specifications | |
| Unit dimensions (HxWxD) | 7” x 17” x 14” (17.8 x 43.2 x 35.6 cm) |
| Unit weight | 19 lbs (8.6 kg) |
| Sample heater tube height | 43” (109 cm) |
| Sample heater tube weight | 6 lbs (2.7 kg) |
| Certifications | |
| US EPA PM2.5 Federal Equivalent Method EQPM-0516-236 | |
| US EPA PM2.5 Federal Equivalent Method EQPM-0516-238 | |
| US EPA PM10 Federal Equivalent Method EQPM-0516-239 | |
| US EPA PM10-2.5 Federal Equivalent Method EQPM-0516-240 | |
|
Specifications are subject to change without notice.
All specifications are based on constant conditions.
|
|
CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project. Contact us for more information.
