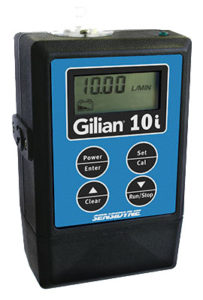

Sensidyne Gilian 10i Air Sampling Pump
Personal air sampling pump with flow rates between 4 LPM and 10 LPM. Its four-stage program with repeat cycling and programmable delayed start lets you use the 10i for scheduled sampling or intermittent duty cycles.
Special flow control circuitry automatically compensates for changes in flow rate, back pressure, and temperature. The display shows real-time flow, total sample time, total volume sampled, and battery charge. This intrinsically safe pump is powered by NiMH batteries that charge to full capacity in just four hours.
- Flow range from 4 to 10 LPM
- Constant flow control ±5% of set flow at 4 to 10 LPM
- Four-stage program with repeat cycle and programmable delayed start
- Displays real-time flow, total sample time, and total volume sampled
- Intuitive, simple four-key operation with no confusing symbols or codes
- Safe, environmentally friendly NiMH batteries with four-hour recharge
- Intrinsically safe with certifications in North America and Europe
- Pump kit includes pump, tubing, charger, and user manual. Multi-unit kit also includes a carrying case.
Higher Flow Applications
The high flow capability of the Gilian 10i enables sampling capability for applications with flow rates between 4LPM and 10 LPM.
NiMH Memory-Free Battery
NiMH battery with quick-charge time in under 4 hours.
Eliminates shipping and disposal issues.
Programmable Functionality
Four stage program with repeat cycling
Allows scheduled sampling or intermittent duty cycles
Programmable delayed start
Intuitive Operation with Lock-out Feature
Simple four-button design makes pump easier to understand and operate.
Live Flow Display Large display continuously shows real-time flow, total sample time and total volume sampled.
Special flow control circuitry automatically compensates for changes in flow rate, back-pressure and temperature.
Intrinsically Safe Certified
Intrinsically Safe for use in explosive environments.
User Manual
Data Sheet
Quick Start Guide
| PERFORMANCE | |
| Flow Range | 4.00 – 10.00 LPM |
| Constant Flow Control | ± 5% of set flow at 4-10 LPM |
| Flow Compensation | Up to 5-hours at: |
| 5 LPM up to 40” H2O back pressure | |
| 6 LPM up to 34” H2O back pressure | |
| 7LPM up to 28” H2O back pressure | |
| 8LPM up to 22” H2O back pressure | |
| 9LPM up to 18” H2O back pressure | |
| 10LPM up to 12” H2O back pressure | |
| Run Time | 8-hours minimum at: |
| 5 LPM up to 25” H2O back pressure | |
| 6 LPM up to 22” H2O back pressure | |
| 7LPM up to 20” H2O back pressure | |
| 8LPM up to 18” H2O back pressure | |
| 9LPM up to 12” H2O back pressure | |
| 10LPM up to 8” H2O back pressure | |
| Flow Fault | If flow changes exceed 5% within back pressure specifications, fault icon appears. If fault exceeds 30 seconds, pump shuts down. Pump attempts to restart every 3 minutes for up to 30 min. |
| ENVIRONMENTAL | |
| Temperature Ranges | |
| Operating | 32°F to 113°F (0°C to 45°C) |
| Storage | -4°F to 113°F (-20°C to 45°C) |
| Charging | 41°F to 104°F (5°C to 40°C) |
| Humidity Ranges | |
| Operating | 5-85 %RH, non-condensing |
| Storage | 5-98 %RH, non-condensing |
| GENERAL | |
| Display | Flow Rate, Total Sample Time, |
| Total Volume Sampled | |
| Controls | POWER/ENTER, SET/CAL, |
| BACK/CLEAR, START/RUN/STOP | |
| Indicators | Green LED (“Normal Operation”) |
| Icons (LCD) | Battery Indicator, Hold, Fault, Set, Prog |
| Dimensions | 3.2W x 5.4H x 2.3D inches |
| 8.2W x 13.7H x 5.8D cm | |
| Weight | 23 oz. (654 g) |
| ELECTRICAL | |
| Battery Pack | Removable, Rechargeable |
| Nickel-Metal-Hydride | |
| Battery Level Indicator | Icon displays Full, Mid, & Low levels |
| Interface Connectors | Charging Jack |
| Charging Time | Under 4 hours |
| APPROVALS | |
| EN 1232 | Type G |
| Intrinsic Safety | |
| US/Canada NRTL (FM) | |
| Class I, Div 1 Groups A, B, C, D; | |
| Class II, Div 1, Groups E, F & G; | |
| Class III, T4 | |
| ATEX | |
| II 1 G | |
| Ex ia IIC T4 | |
| CE | |
| Applicable Directives | |
| ATEX 94/9/EC; EMC 2004/108/EC (RFI) | |
| LVD 2006/95/EC |
