Aeroqual S500 Sensor Heads

Aeroqual S500 Sensor Heads

$422.97$1,941.26

Interchangeable Aeroqual S500 Sensor Heads can be used with Series 500 (S500) and Ranger handheld ambient air monitors to measure a broad range of constituents and gases. Over 25 different swappable sensors can measure: ammonia, carbon monoxide, carbon dioxide, hydrogen sulfide, nitrogen dioxide, ozone, particulate matter, VOC’s and more.

Interchangeable Aeroqual S500 Sensor Heads can be used with Series 500 (S500) and Ranger handheld ambient air monitors to measure a broad range of constituents and gases. Over 25 different swappable sensors can measure: ammonia, carbon monoxide, carbon dioxide, hydrogen sulfide, nitrogen dioxide, ozone, particulate matter, VOC’s and more.

All sensor heads feature active fan sampling and vary in their measurement approaches and sensor types, offering consultants, industrial hygienists, site managers, and engineers a host of options to meet their unique testing needs. Sensor technologies utilized include: Gas Sensitive Electrochemical (GSE), Gas Sensitive Semiconductor (GSS), Laser Particle Counter (LPC), Non-Dispersive Infrared (NDIR), and Photo Ionization Detection (PID).

The Aeroqual Series 500 (S500) enables accurate real-time surveying of common ambient air pollutants, all in an ultra-portable handheld form factor. For use in measuring indoor or outdoor air quality, the S500 is suitable for a variety of applications, including: leak detection, industrial hygiene, construction, remediation, and more.  Data is stored on board the Series 500 with a maximum 8,188 records available. To transfer data, a USB cable is supplied for connection to PC. Free PC software provided with the Series 500 presents your data in a chart or table view, viewable in most spreadsheet applications.

In Control Mode, upper and lower control limits can be easily set directly on the display. Using the 0-5V output, the Series 500 can be used to switch on or off an externally-connected device such as an ozone generator or system in the presence of a predetermined level of gas. With an optional wall-mount bracket and using an AC power adapter, the Series 500 can also be used as a space-saving fixed monitor.

For other Aeroqual product offerings from CleanAir, Discover the Aeroqual Range.

All sensors use active fan sampling

Measurements Formula Range (ppm) Accuracy Resolution (ppm) Sensor Type Part Number

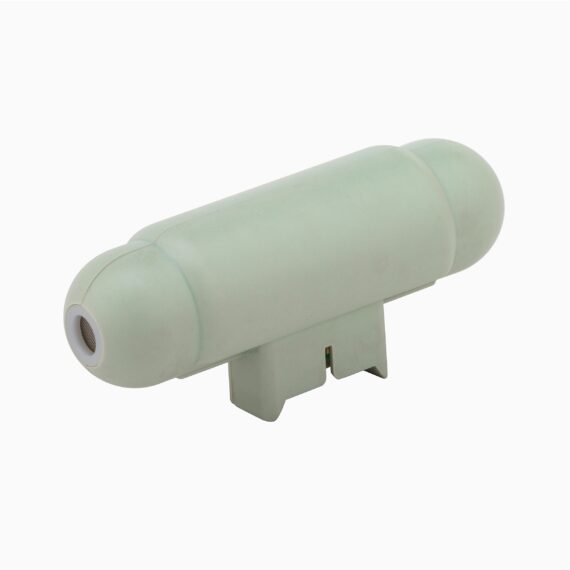

Ammonia NH3 0-100 <±0.5ppm + 10% 0.1 GSE SHENG
Ammonia NH3 0-1000 <±5 ppm +15% 1 GSS SHNH
Carbon Dioxide CO2 0-2000 <±10ppm + 5% 1 NDIR SHCD

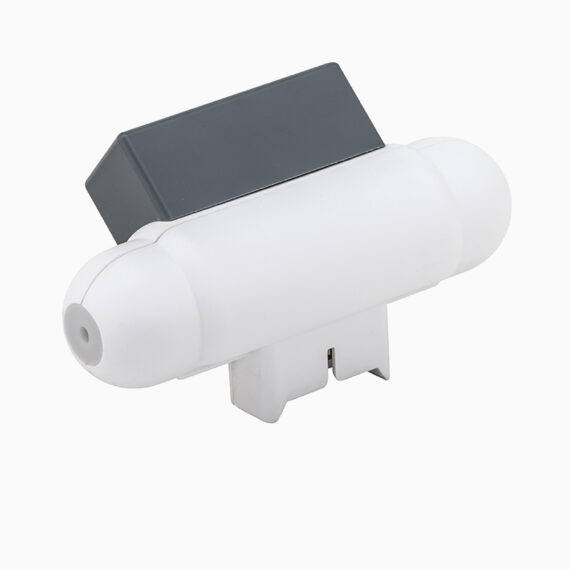

Carbon Dioxide CO2 0-5000 <±20ppm + 5% 1 NDIR SHCE
Carbon Monoxide
(Leak Detector)
CO 0-1000 <±2ppm + 15% 1 GSS SHCO

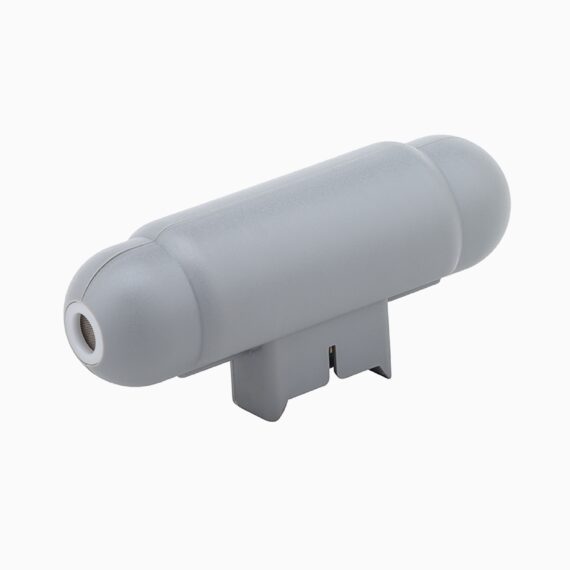

Carbon Monoxide CO 0-25 <±0.5 ppm 0-5 ppm
<±10% 5-25ppm
0.01 GSE SHECM
Carbon Monoxide CO 0-100 <±1 ppm 0-10 ppm
<±10% 10-100ppm
0.1 GSS SHECN
Chlorine Cl2 0-10 <±0.02ppm + 10% 0.01 GSE SHECL

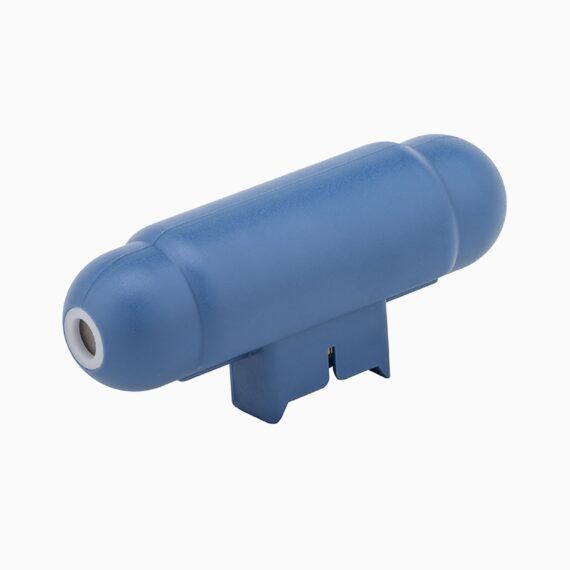

Formaldehyde CH2O 0-10 <±0.05 ppm 0-0.5 ppm
<±10% 0.5-10ppm
0.01 GSE SHEF
Hydrogen H2 0-5000 <±10ppm + 10% 1 GSS SHHA
Hydrogen sulfide H2S 0-10 <±0.05 ppm 0-0.5 ppm
<±10% 0.5-10ppm
0.01 GSE SHEHS
Hydrogen sulfide H2S 0-100 <±0.5 ppm 0-5 ppm
<±10% 5-100ppm
0.1 GSE SHEHT
Methane CH4 0-10,000 <±20ppm + 15% 1 GSS SHMT
Nitrogen Dioxide NO2 0-1 <±0.02 ppm 0-0.2 ppm
<±10% 0.2-1 ppm
0.001 GSE SHEND
Nonmethane Hydrocarbons NMHC 0-25 <±0.1 ppm + 10% 0.1 GSS SHVN
Ozone O3 0-10 <±0.01ppm + 7.5% 0.01 GSE SHEOZ
Ozone O3 0-10 <±0.1ppm + 15% 0.01 GSS SHOZG
Ozone O3 0-0.5 <±0.008 ppm 0-0.1 ppm
<±10% 0.1-0.5 ppm
0.001 GSS SHOZL

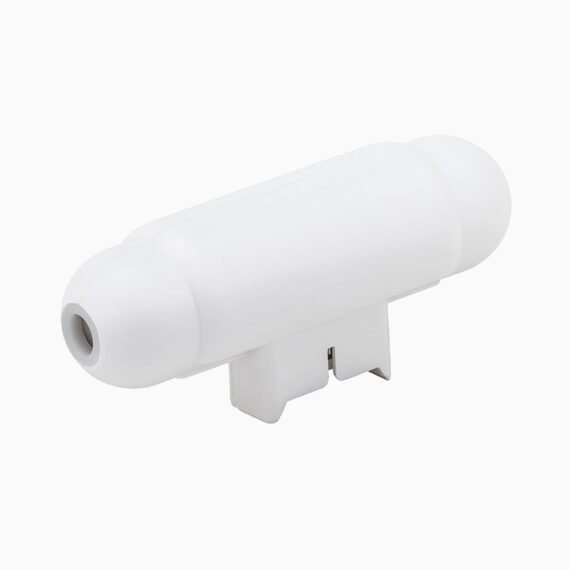

Ozone O3 0-0.15 <±0.005 ppm 0.001 GSS SHOZU

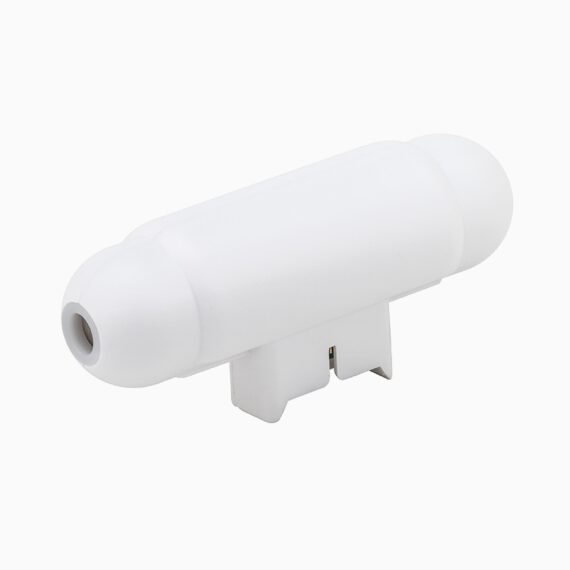

Ozone O3 0-0.05 <±0.002 ppm 0.001 GSS SHOZS

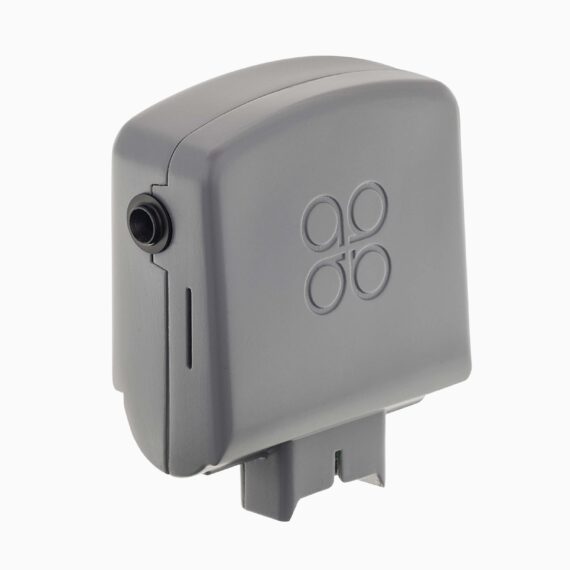

Particulate Matter PM with RH Correction 0.001-1.000 µg /m3 ± 0.005 µg /m3 + 15 % 0.001 µg /m3 LPC SHPM

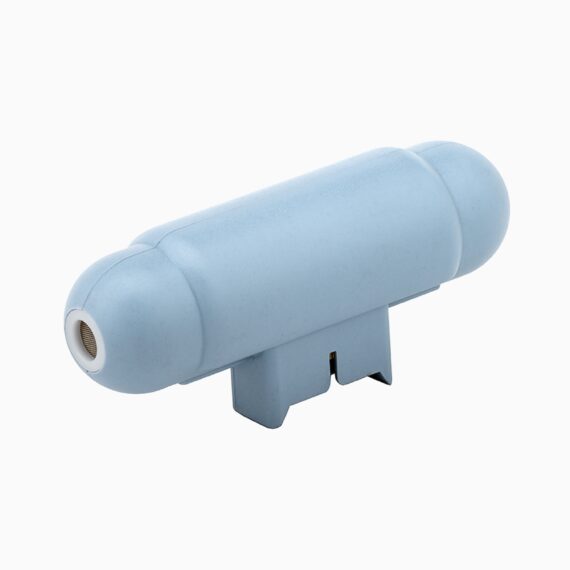

Perchloroethylene C2Cl4 0-200 <±5 ppm 0-50 ppm
<±10% 50-200 ppm
1 GSS SHPE

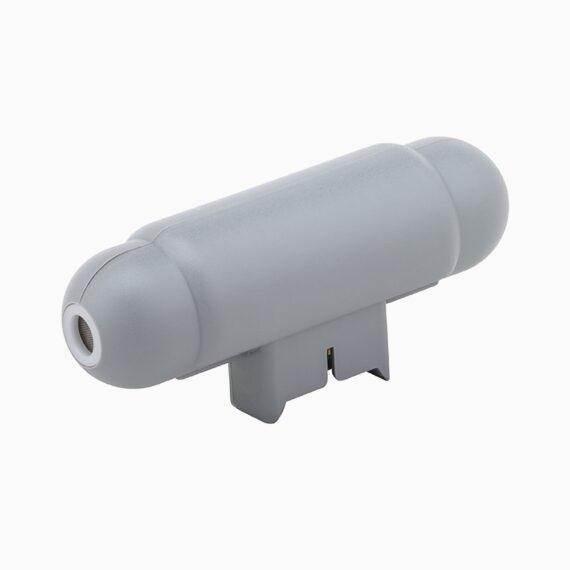

Sulfur Dioxide SO2 0-10 <±0.05 ppm 0-0.5 ppm
<±10% 0.5-10ppm
0.01 GSE SHESO
Sulfur Dioxide SO2 0-100 <±0.5 ppm 0-5 ppm
<±10% 5-100ppm
0.1 GSE SHESP
Volatile Organic Compounds VOC 0-2000 <±0.2ppm + 10% <1000ppm: 0.1
>1000ppm: 1
PID SHVOCH

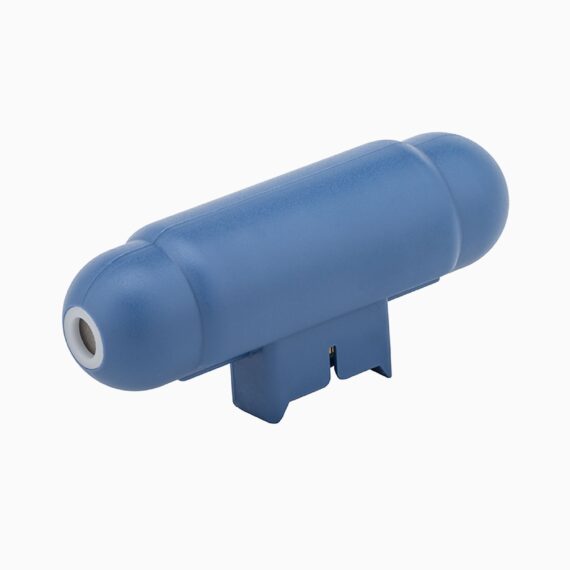

Volatile Organic Compounds VOC 0-30 <±0.02ppm + 10% 0.01 PID SHVOC
Volatile Organic Compounds VOC 0-25 <±0.1 ppm + 10% 0.1 GSS SHVM
Volatile Organic Compounds VOC 0-500 <±5ppm + 10% 1 GSS SHVP
Sensor Types

  • GSE — Gas Sensitive Electrochemical
  • GSS — Gas Sensitive Semiconductor
  • LPC — Laser Particle Counter
  • NDIR — Non-Dispersive Infrared
  • PID — Photo Ionization Detector

Aeroqual Sensor Head Spec Sheet
