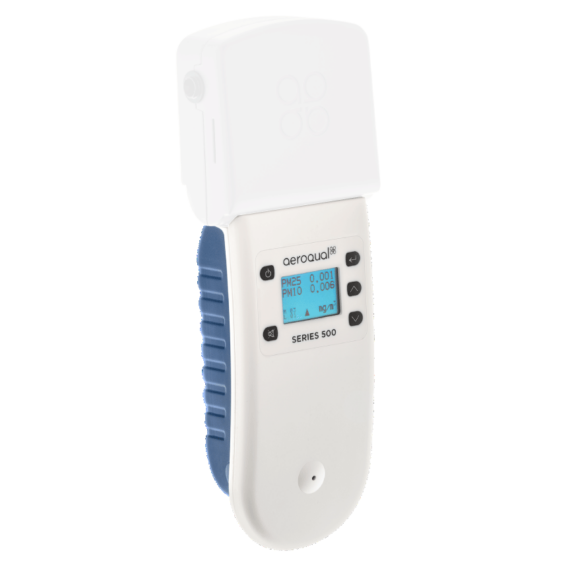

Aeroqual S500 Handheld Monitor Base

Aeroqual S500 Handheld Monitor Base

Original price was: $1,265.00.Current price is: $1,227.05.

This Monitor Base item requires the purchase of sensor modules, sold separately.

The Aeroqual Series 500, or S500, enables accurate real-time surveying of common indoor air pollutants, all in an ultra-portable handheld indoor air quality monitor.  Data is stored on board the Series 500 with a maximum 8,188 records available. To download the data a USB cable is supplied for connection to PC. Free PC software provided with the Series 500 takes the data and presents it in a chart or table view. Data can be downloaded and viewed in Excel.

The Aeroqual Series 500, or S500, handheld ambient air monitor enables accurate real-time surveying of common indoor air pollutants, in an ultra-portable handheld indoor air quality monitor.  Data is stored on board the Series 500 with a maximum 8,188 records available. To download the data a USB cable is supplied for connection to PC. Free PC software provided with the Series 500 takes the data and presents it in a chart or table view. Data can be downloaded and viewed in Excel.

The monitor can also operate in control mode. Upper and lower control limits can be easily set directly on the display. Using the 0-5V output the Series 500 can be used to switch on or off an externally connected device, such as an ozone generator, or system in the presence of a predetermined level of gas. By selecting the optional wall-mount bracket and plugging in mains power the Series 500 is effectively able to act as a fixed monitor as well as a handheld portable device.

Other features on the Series 500 include monitor ID and location ID. Monitor ID identifies the monitor uniquely and ensures that all data from it are tied to that monitor. Location ID can be used to tag measurements to a specific location which is helpful when sampling at a number of sites over the course of a day or week.

For those wanting to recalibrate on site the Series 500 allows adjustment of zero and span. Together with the R42 Calibration Accessory and appropriate gas cylinders this function allows the sensor head to be fully recalibrated without having to return it to the factory. Alternatively the sensor head can be returned to Aeroqual for a factory calibration which includes a renewed calibration certificate. The Series 500 is also featured in our new Indoor Air Quality Test Kits, a convenient way to test multiple gases and particulates in the air around you.

Features

  • Monitor base
  • LCD digital display
  • Lithium battery and charger
  • In-built datalogger
  • 0-5V output
  • Zero and span adjustment
  • Low and high alarm
  • Monitor to USB cable
  • PC software

Benefits

  • Fits comfortably in the hand
  • Compatible with 30 different sensors
  • Data logged directly onto monitor base
  • Audible alarm functionality
  • Changing sensors takes seconds and can be done anywhere
  • Remote sensor capability
  • Long life lithium battery technology
  • Zero and span calibrate in the field
  • Free PC software (Windows 7, 8, XP compatible)
  • Connect direct to PC via USB

Applications

  • Indoor air quality
  • Personal exposure studies
  • Health and safety
  • Checking indoor air pollution “hotspots”

Additional Products from Aeroqual

All sensors use active fan sampling

Measurements Formula Range (ppm) Accuracy Resolution (ppm) Sensor Type Part Number
Ammonia NH3 0-100 <±0.5ppm + 10% 0.1 GSE SHENG
Ammonia NH3 0-1000 <±5 ppm +15% 1 GSS SHNH
Carbon Dioxide CO2 0-2000 <±10ppm + 5% 1 NDIR SHCD
Carbon Dioxide CO2 0-5000 <±20ppm + 5% 1 NDIR SHCE
Carbon Monoxide
(Leak Detector)
CO 0-1000 <±2ppm + 15% 1 GSS SHCO
Carbon Monoxide CO 0-25 <±0.5 ppm 0-5 ppm
<±10% 5-25ppm
0.01 GSE SHECM
Carbon Monoxide CO 0-100 <±1 ppm 0-10 ppm
<±10% 10-100ppm
0.1 GSS SHECN
Chlorine Cl2 0-10 <±0.02ppm + 10% 0.01 GSE SHECL
Formaldehyde CH2O 0-10 <±0.05 ppm 0-0.5 ppm
<±10% 0.5-10ppm
0.01 GSE SHEF
Hydrogen H2 0-5000 <±10ppm + 10% 1 GSS SHHA
Hydrogen sulfide H2S 0-10 <±0.05 ppm 0-0.5 ppm
<±10% 0.5-10ppm
0.01 GSE SHEHS
Hydrogen sulfide H2S 0-100 <±0.5 ppm 0-5 ppm
<±10% 5-100ppm
0.1 GSE SHEHT
Methane CH4 0-10,000 <±20ppm + 15% 1 GSS SHMT
Nitrogen Dioxide NO2 0-1 <±0.02 ppm 0-0.2 ppm
<±10% 0.2-1 ppm
0.001 GSE SHENW
Nonmethane Hydrocarbons NMHC 0-25 <±0.1 ppm + 10% 0.1 GSS SHVN
Ozone O3 0-10 <±0.01ppm + 7.5% 0.01 GSE SHEOZ
Ozone O3 0-10 <±0.1ppm + 15% 0.01 GSS SHOZG
Ozone O3 0-0.5 <±0.008 ppm 0-0.1 ppm
<±10% 0.1-0.5 ppm
0.001 GSS SHOZL
Ozone O3 0-0.15 <±0.005 ppm 0.001 GSS SHOZU
Ozone O3 0-0.05 <±0.002 ppm 0.001 GSS SHOZS
Particulate Matter PM with RH Correction 0.001-1.000 µg /m3 ± 0.005 µg /m3 + 15 % 0.001 µg /m3 LPC SHPM
Perchloroethylene C2Cl4 0-200 <±5 ppm 0-50 ppm
<±10% 50-200 ppm
1 GSS SHPE
Sulfur Dioxide SO2 0-10 <±0.05 ppm 0-0.5 ppm
<±10% 0.5-10ppm
0.01 GSE SHESO
Sulfur Dioxide SO2 0-100 <±0.5 ppm 0-5 ppm
<±10% 5-100ppm
0.1 GSE SHESP
Volatile Organic Compounds VOC 0-2000 <±0.2ppm + 10% <1000ppm: 0.1
>1000ppm: 1
PID SHVOCH
Volatile Organic Compounds VOC 0-30 <±0.02ppm + 10% 0.01 PID SHVOC
Volatile Organic Compounds VOC 0-25 <±0.1 ppm + 10% 0.1 GSS SHVM
Volatile Organic Compounds VOC 0-500 <±5ppm + 10% 1 GSS SHVP
Sensor Types

  • GSE — Gas Sensitive Electrochemical
  • GSS — Gas Sensitive Semiconductor
  • LPC — Laser Particle Counter
  • NDIR — Non-Dispersive Infrared
  • PID — Photo Ionization Detector
Part Number Item
AERO-HHS500L
This Item
Monitor base with lithium battery and power pack, alarms, data-logging and PC Software
AERO-HHTRH Plug-in temperature and RH sensor for Series 300, and 500 monitors
AERO-HHENC Water- and dust-proof enclosure for Series 300 and 500
AERO-ASR10 Remote sensor kit for Series 300/500 remote location measurement
AERO-ASR13 Remote sensor kit for Series 300/500 remote location measurement (NEMA 2/IP41)
AERO-ASR32 Cigarette lighter adapter for handheld monitors (Lithium/NiMH compatible)
AERO-ASR33 Bracket for wall-mounting handheld monitors
AERO-ASR36 Replacement Lithium battery (blue) for handheld monitors
AERO-ASR40 Protective carry case for a Series 300/500 monitor plus four gas sensor heads
AERO-ASR41 Robust case with shoulder strap for Series 300/500 monitor plus eight gas sensor heads
AERO-ASR42 Calibration accessory for handheld monitors
